Description

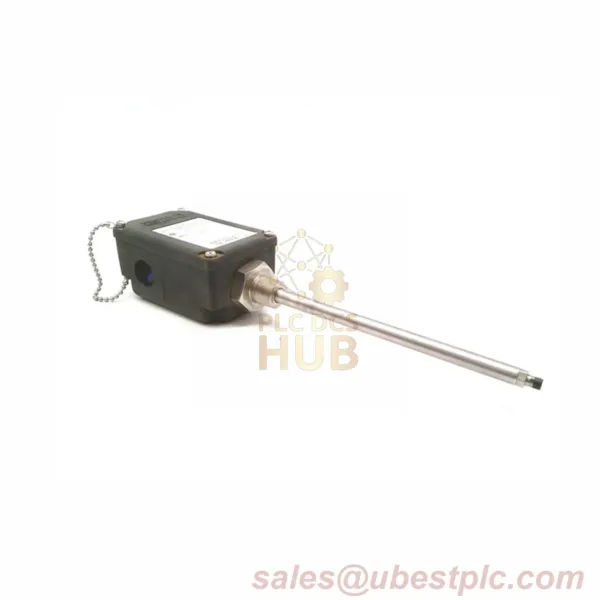

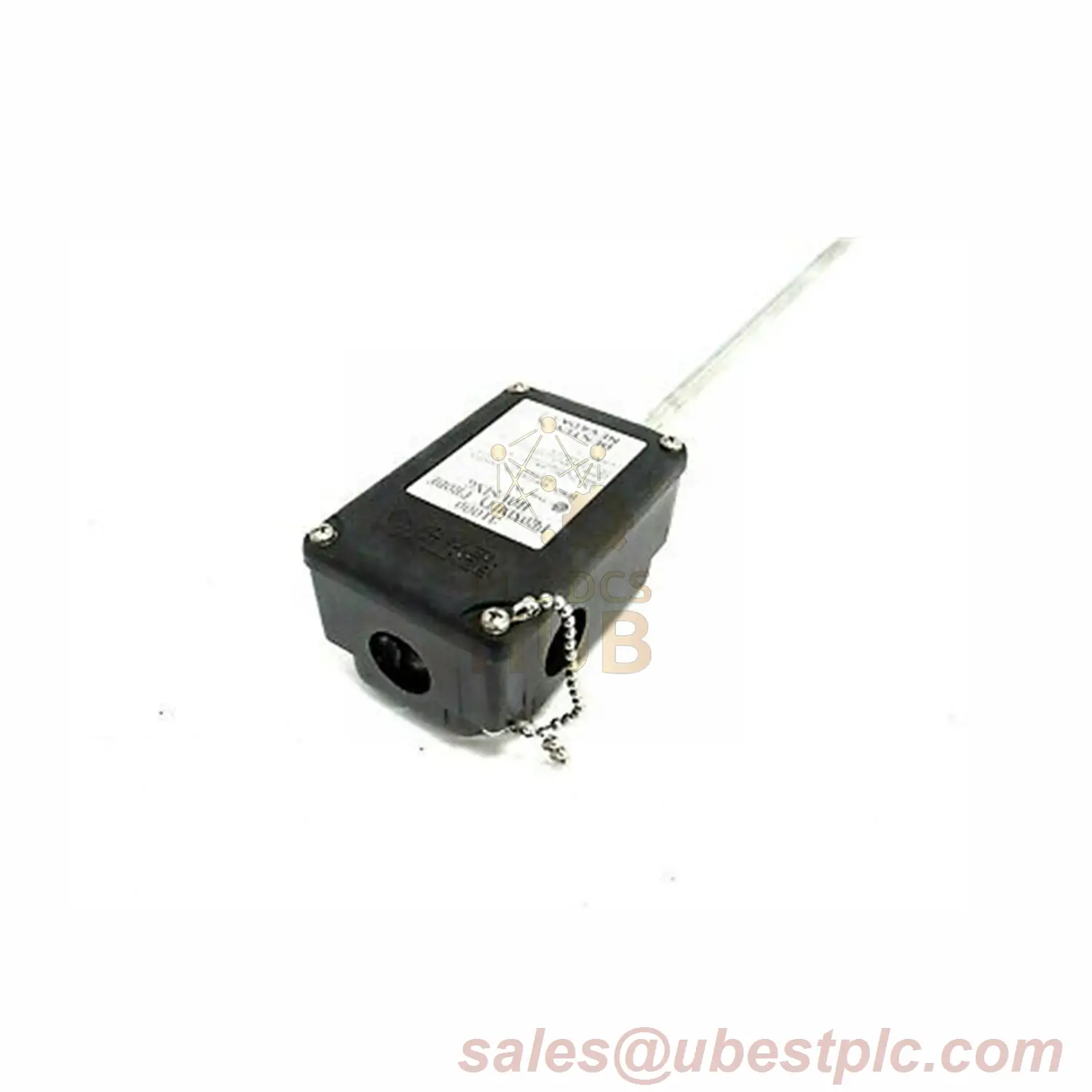

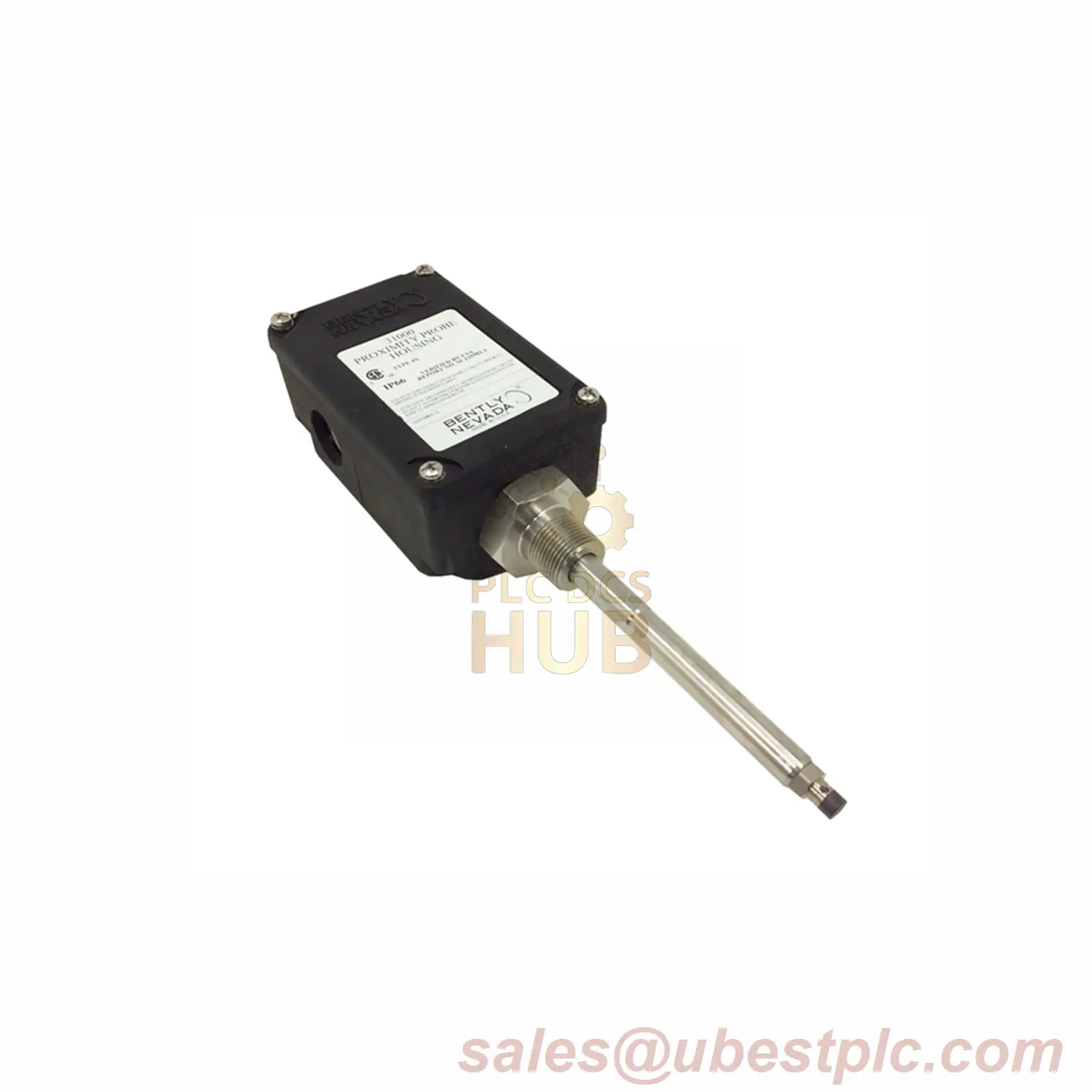

Bently Nevada 31000 Proximity Probe Housing

Key Specifications for 31000-16-05-00-059-02-02

• Probe Size: 3300 XL 8mm sensor
• Cable Length: 0.5m (20″) FEP triaxial
• Penetration Depth: 5.9″ (150mm)
• Mounting: 3/4-14 NPT threads
• Impact Resistance: 7J (5.2ft·lb)
• Temp Range: -51°C to +105°C
• Load Capacity: 912N (205lbs)

Installation Guide

• 1. Align 3/4-14 NPT threads
• 2. Tighten retaining nut to 29.4N·m
• 3. Install two included NPT fittings
• 4. Verify grounding liner connection
• ⚠️ Avoid bending probe cable >25mm

Product Code Breakdown

31000-16-05-00-059-02-02

• 16: 8mm probe
• 05: 0.5m cable
• 00: No standoff
• 059: 5.9″ penetration
• 02: Two NPT fittings
• 02: 3/4-14 NPT thread

Industrial Applications

• Oil Refineries: Pump bearing monitoring
• Chemical Plants: Reactor shaft protection
• Power Stations: Turbine vibration analysis
• Mining: Conveyor system safety

Durability Features

• Explosion-proof: ATEX/IECEx Zone 1
• Weatherproof: IP66 & Type 4X rated
• Chemical Resistant: Conductive PPS housing
• Extreme Temp: Withstands -51°C freeze
