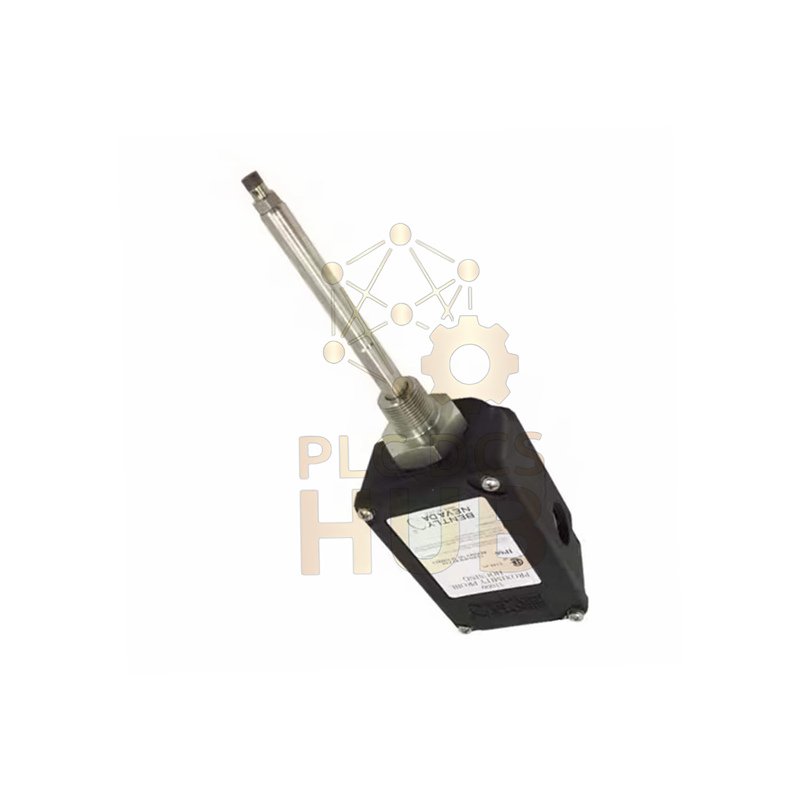

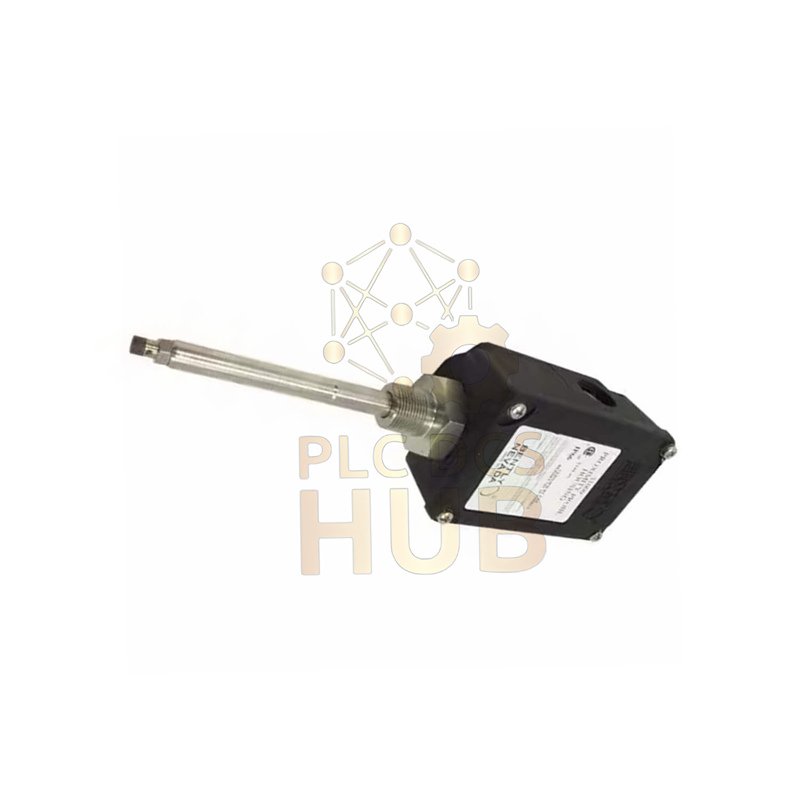

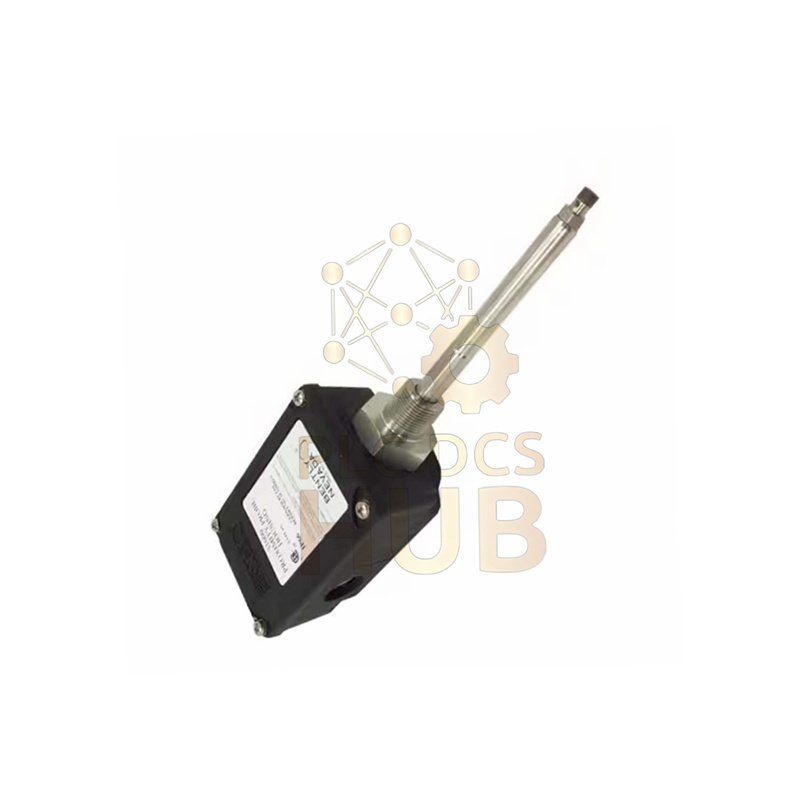

Description
Quick Product Facts
- Brand: Bently Nevada
- Part Number: 31000-16-05-00-023-02-02
- Product Class: Proximity Probe Housing
- Series: 31000 Assemblies
- Made In: U.S.A
- Warranty: 12 Months
Part Code Breakdown (Nested Path Style)
- 31000
- Main platform for hazardous probe mounting
- ↳ 16
- Supports 3300 XL 8 mm probe
- Simple connector-ready configuration
- ↳ 05
- Cable length option: 0.5 m (20 in)
- Best for compact junction routing
- ↳ 00
- No standoff adapter included
- Direct mounting for standard layouts
- ↳ 023
- Probe penetration depth: 2.3 in
- Good for controlled target spacing
- ↳ 02
- Fittings: Two 3/4-14 NPT fittings
- Includes one sealing plug
- ↳ 02
- Mounting thread: 3/4-14 NPT
- Common for industrial probe sleeves
Main Advantages for Field Use
- Helps protect probes in wet and dusty areas.
- Strong sealing against hose-directed water.
- Reduces cable wear in high vibration zones.
- Supports safe use in hazardous locations.
- Built for long service life in rotating assets.
Technical Performance Data
- Product Type: 31000 Proximity Probe Housing
- Protection Level: NEMA Type 4X (CSA certified)
- Ingress Rating: IP66 verified
- Static Control: EN50014 compliant material
- Material Details
- Housing body: Glass-reinforced PPS thermoplastic
- Conductive fibers: Improved electrostatic safety
- Sleeve and chain: AISI 304 stainless steel
- Exterior screws: AISI 303 stainless steel
- Seal ring: Neoprene® O-ring
- Internal probe seal: Viton O-ring support
- Mechanical Ratings
- Recommended tightening torque: 29.4 N·m
- Typical load capacity: 912 N (205 lb)
- Test load offset: 38 mm from free end
- Impact Resistance Values
- 4 Joule impact at -39°C and +115°C
- 7 Joule verified at room temperature
- Designed for rough maintenance handling
- Temperature Limits
- Operating range: -51°C to +105°C
- Stable sealing in cold start conditions
- Pressure Note
- Designed for differential sealing only
- Not intended for pressure vessel service
- Pressure testing is not standard before shipment
- Weight
- Typical mass: 1.2 kg (2.6 lb)
Warranty and Logistics
- 12-month warranty covers manufacturing defects.
- Shipping options: FedEx, UPS, DHL worldwide.
- Export packing protects parts during transit.
FAQ (Advanced Buyer Support)
- What is the best use case for option 00 without standoff?
- Choose it when direct sleeve mounting is possible.
- How does the housing help in hazardous zones?
- It controls static discharge and improves sealing safety.
- Should I request pressure seal testing for special projects?
- Yes, ask for custom testing if pressure risk exists.
- What fitting option is best for standard conduit entry?
- Option 02 works well with common 3/4-14 NPT layouts.
- What installer habit improves long-term sealing?
- Always torque correctly and avoid twisting the O-ring.
