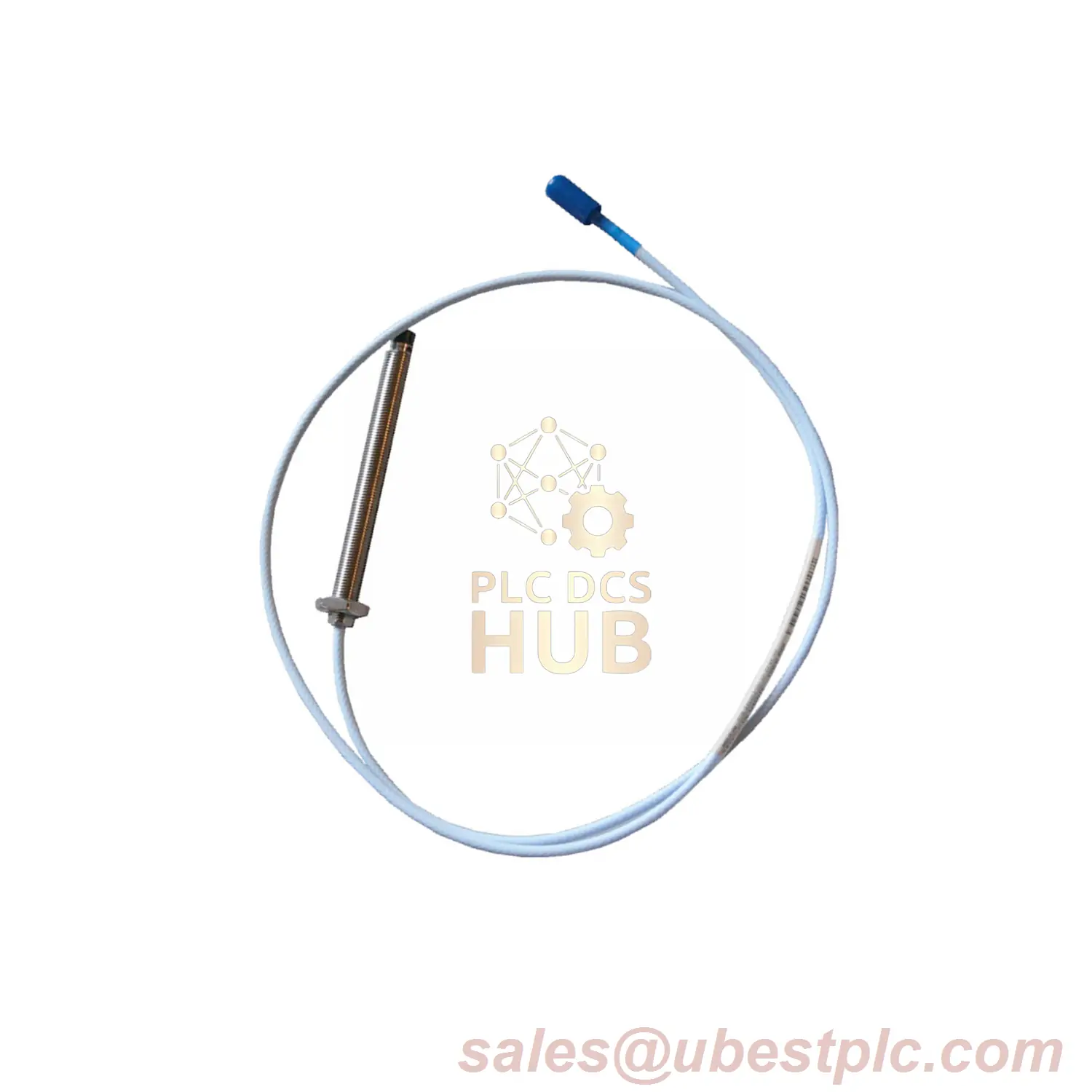

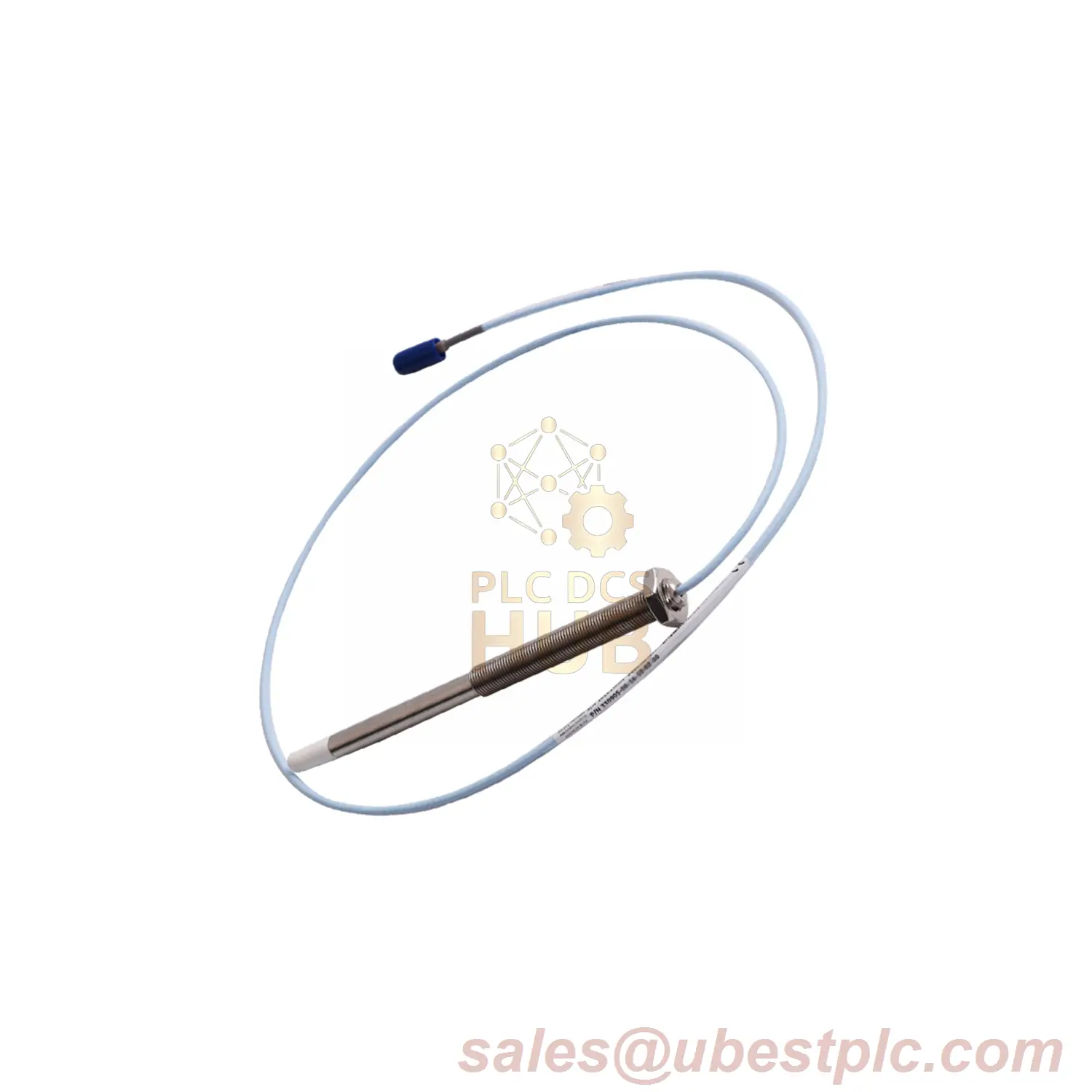

3300 NSv Proximity Probe 330910-07-23-10-02-00 Bently Nevada

Description

Bently Nevada 3300 NSv Probe – Extended 230mm Case for Deep Installations

Configuration Breakdown

330910-07-23-10-02-00
│
├─ 07 = 70mm unthreaded section
├─ 23 = 230mm total case length
├─ 10 = 1.0m cable length
├─ 02 = ClickLoc connector
└─ 00 = No agency approvals

Unique Technical Features for 330910-07-23-10-02-00

• ⏱️ Response Time: <2ms signal latency
• ⚖️ Weight: 150g (5.3oz) max with SST armor
• ????️ Seal Integrity: IP66-rated against dust/water ingress

Industrial Applications

• ???? Pulp & Paper: Monitor dryer rollers in high-humidity environments
• ⚡ Hydropower: Turbine shaft alignment in underground plants
• ????️ Petrochemical: Reactor agitator monitoring in ATEX zones

Performance Data

• ???? Power Consumption: 2.8W @ 24VDC
• ???? Measurement Range: 0.25-2.3mm (±0.5% accuracy)
• ???? Mounting: M10x1 thread (15mm max engagement)

Environmental Limits for 330910-07-23-10-02-00

• ❄️ Cold Limit: Avoid <-30°F for >48hrs
• ???? Heat Capacity: 351°F continuous operation
• ???? Humidity: 100% RH non-condensing
