Description

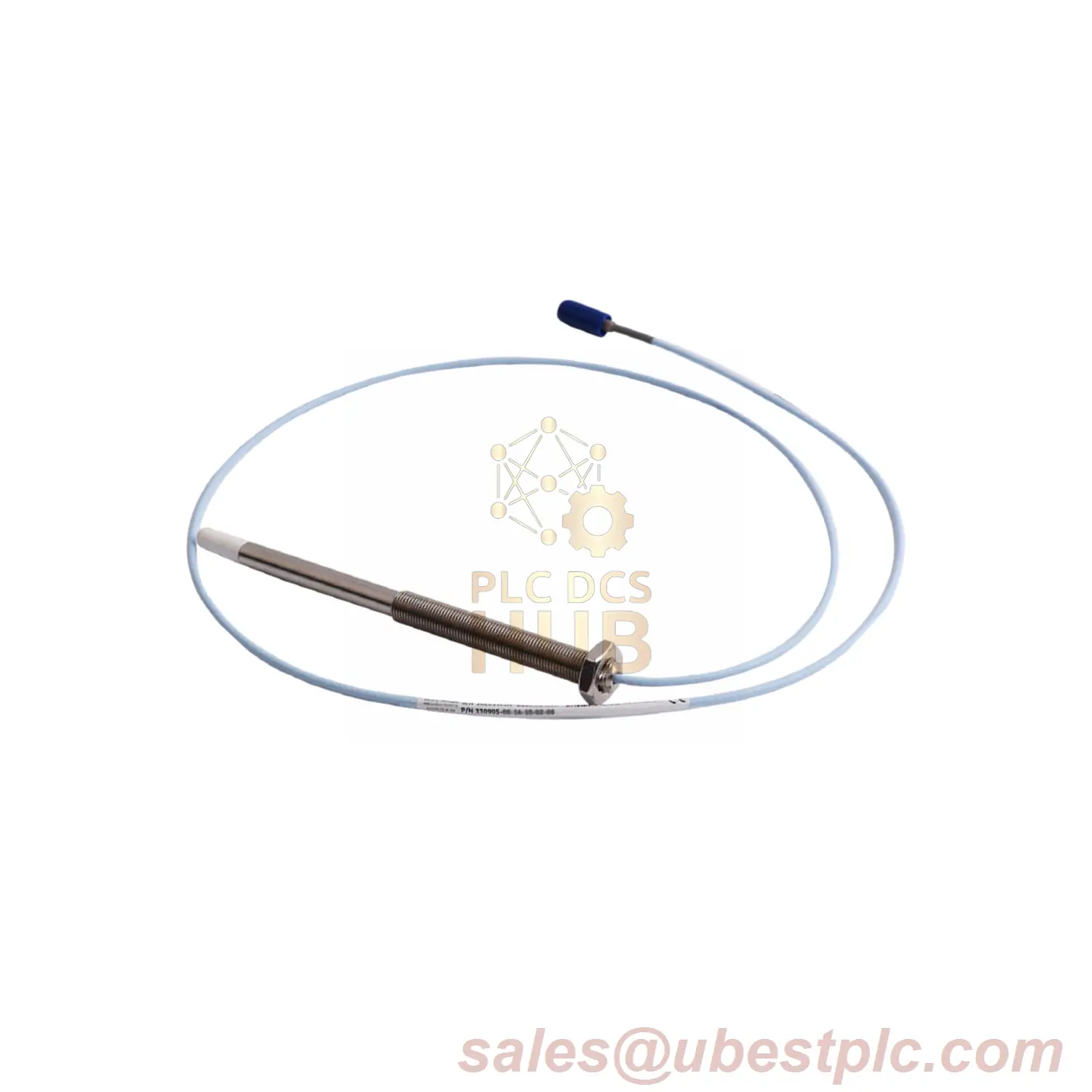

Bently Nevada 3300 NSv Compact Probe – FluidLoc Protection
Factory-new vibration sensor with special FluidLoc cable. 30mm case, M8X1 thread. 1-year warranty included.
Key Features
- FluidLoc cable resists liquids
- Compact 30mm case design
- 5m (16.4ft) cable length
- Works in -62°F to +351°F
- Better than older 3300 RAM probes
Product Identification
| Full Part No: | 330903-00-03-50-12-00 |
| Meaning: | 00=0mm unthreaded | 03=30mm case | 50=5m cable | 12=FluidLoc | 00=No approvals |
| Resistance: | 5.3 ± 0.7 ohms |
| Thread Type: | M8X1 metric |
Performance Data
- Measurement Range: 0.25-1.75mm
- Output Signal: -1 to -13 Vdc
- Accuracy: ±0.06mm
- Response Speed: 0-10,000 Hz
- Cable Bend Radius: 25.4mm min
- Installation Torque: 5.1 N•m max
Installation Guide
- Clean mounting hole
- Start threads by hand
- Tighten to 5.1 N•m (45 in-lb)
- Set gap to 1.0mm (40 mils)
- Connect FluidLoc cable
Package Contents
- 3300 NSv probe unit
- 5m FluidLoc cable
- ClickLoc connector
Support & Shipping
12-month product protection. Ships via FedEx, UPS, DHL with tracking.
Technical Questions
Q: What makes FluidLoc cable special?
A: Resists liquids and chemicals better than standard cables.
Q: Can I monitor high-speed shafts?
A: Yes, works for shafts up to 10,000 RPM.
Q: What’s the minimum target size?
A: 8.9mm diameter, but 13mm is recommended.
Q: How does this compare to 3300 RAM?
A: Better chemical resistance and side-view performance.
Q: Is pressure testing available?
A: Contact us for custom pressure testing services.
