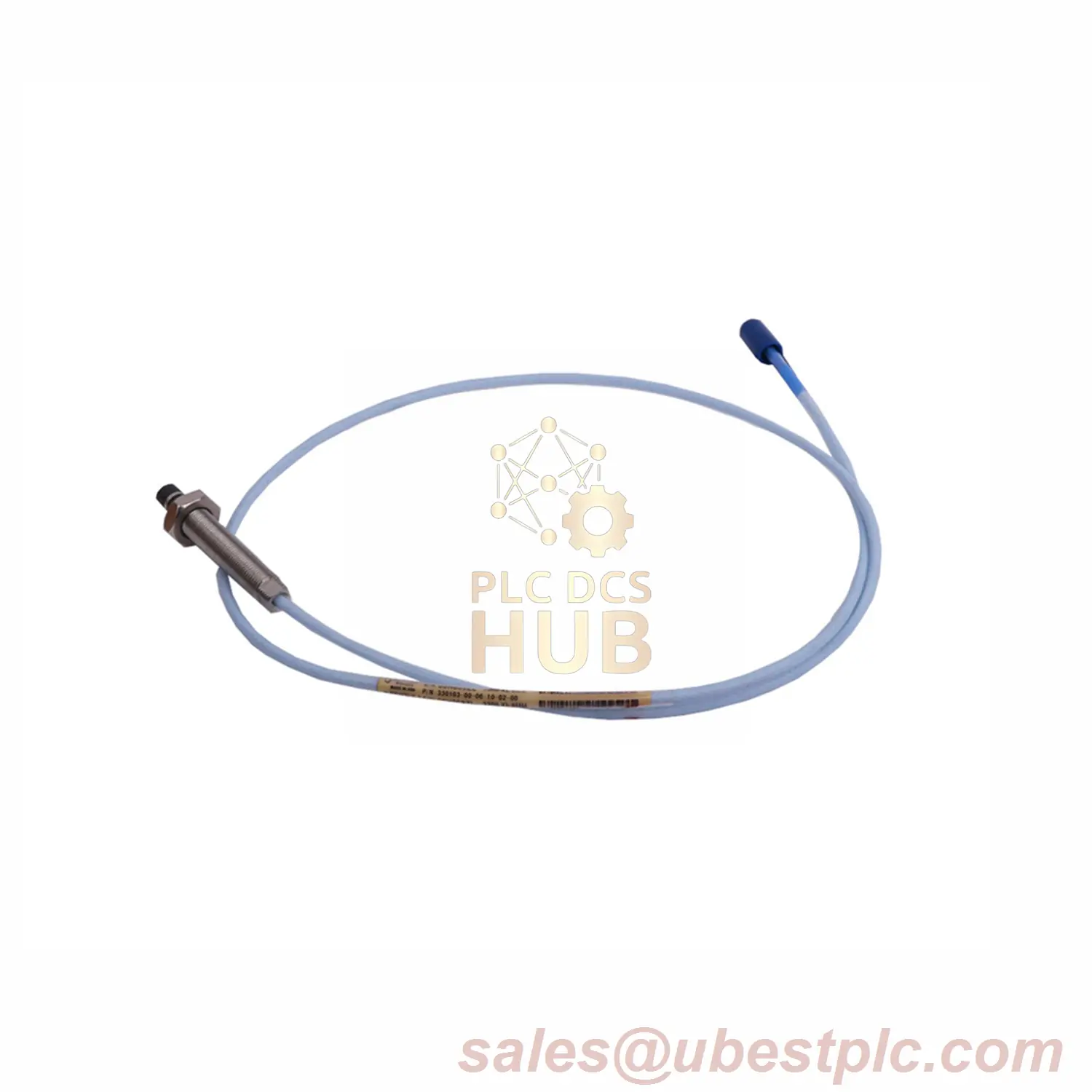

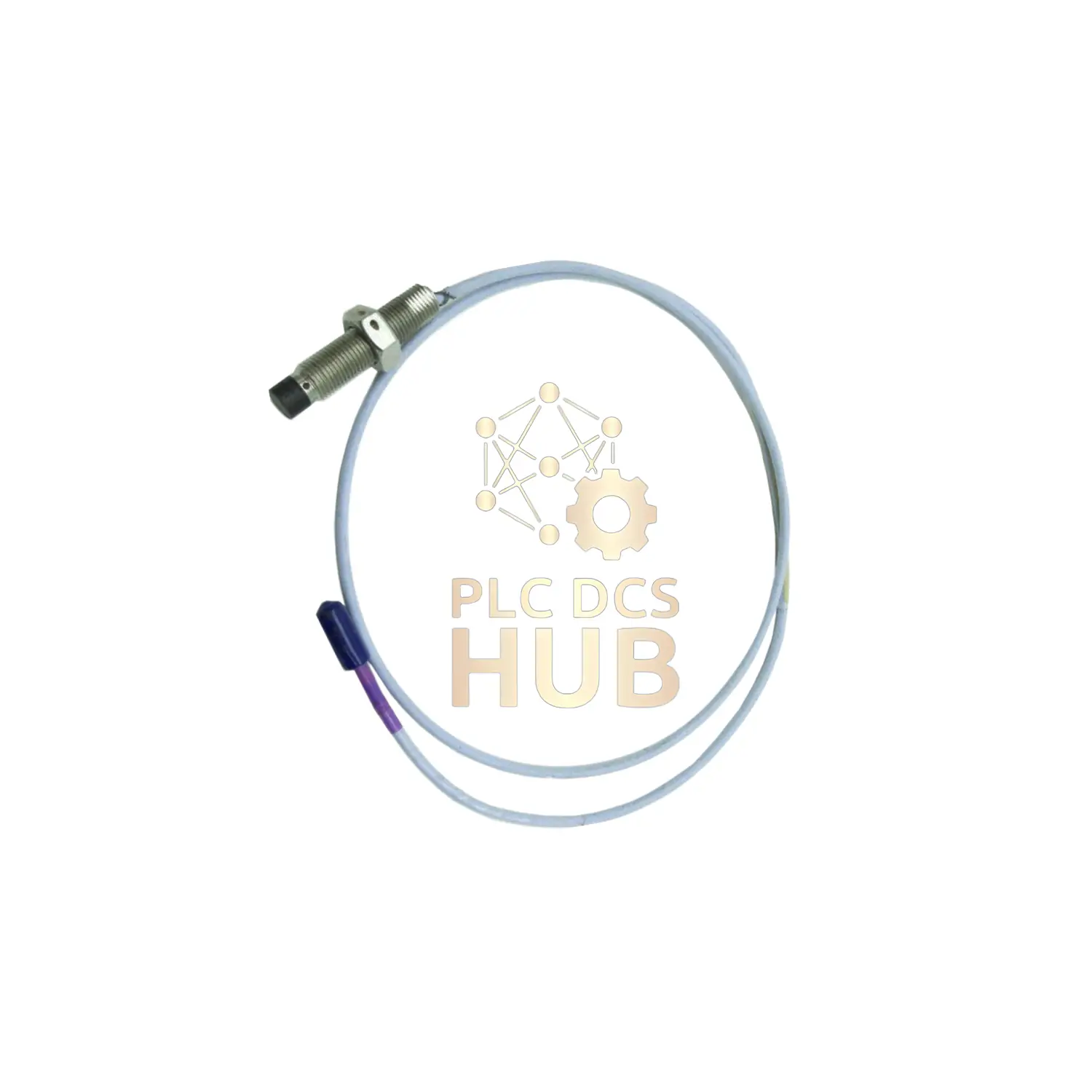

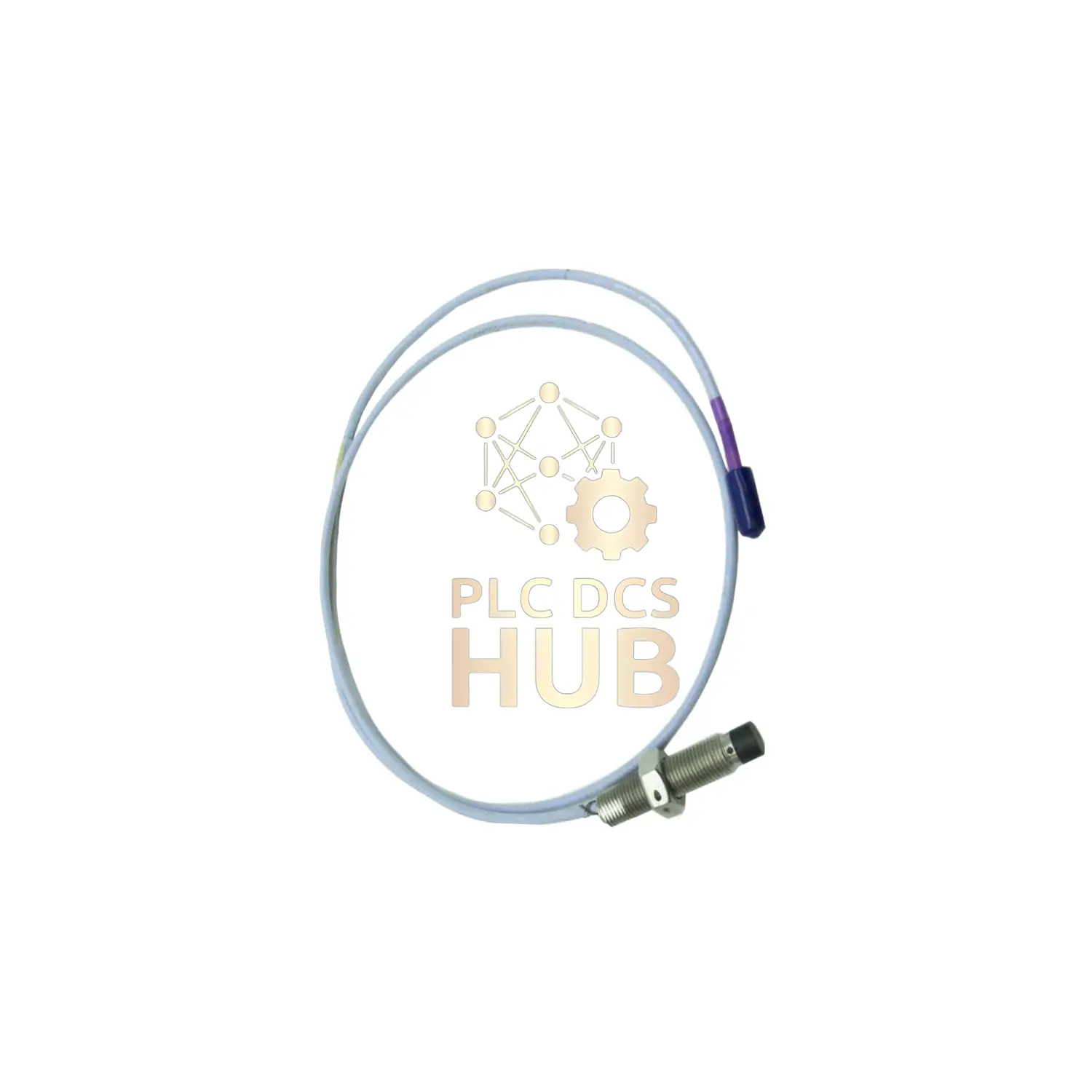

Bently Nevada 3300 XL Probe – 1/2-20 UNF Thread Version
Complete Product Breakdown
Full Part Number: 330701-00-30-10-02-00
- Base Model: 330701 (11mm Probe)
- Thread: 1/2-20 UNF without armor
- Unthreaded Length: 00 = 0.0 inch
- Case Length: 30 = 3.0 inches
- Cable Length: 10 = 1.0 meter
- Connector: 02 = Standard ClickLoc
- Approvals: 00 = No certifications
Critical Specifications
- Thread Engagement: 0.750 inch maximum
- DC Resistance: 5.9Ω ±0.5 at 1m
- Torque Setting: 15.2 N•m (133 in•lb)
- Temperature Range: -51°C to +177°C
- Min Bend Radius: 25.4mm
- Cable Type: 75Ω triaxial standard
- Weight: 0.17kg
Design Features
- Extended 3.0 inch case length
- Industrial 1/2-20 UNF threading
- PPS tip material for durability
- Stainless steel 304 housing
- Viton O-ring pressure seal
Installation Parameters
- Max installation torque: 45.2 N•m
- Connector torque: Finger tight only
- Minimum cable bend: 25.4mm
- Critical storage temp: Above -34°C
- No factory pressure testing
Shipping Options
- FedEx International Priority
- UPS Worldwide Express
- DHL Express Shipping
Frequently Asked Questions
Q: What is the thread size difference?
A: This model uses 1/2-20 UNF instead of 5/8-18
Q: How deep can I thread this probe?
A: Maximum 0.750 inch thread engagement
Q: Is the cable chemically resistant?
A: Standard cable (not FluidLoc version)
Q: Why is the case longer?
A: 3.0 inch length allows deeper mounting
Q: Can I get certified calibration?
A: Contact us for calibration service options
