Description

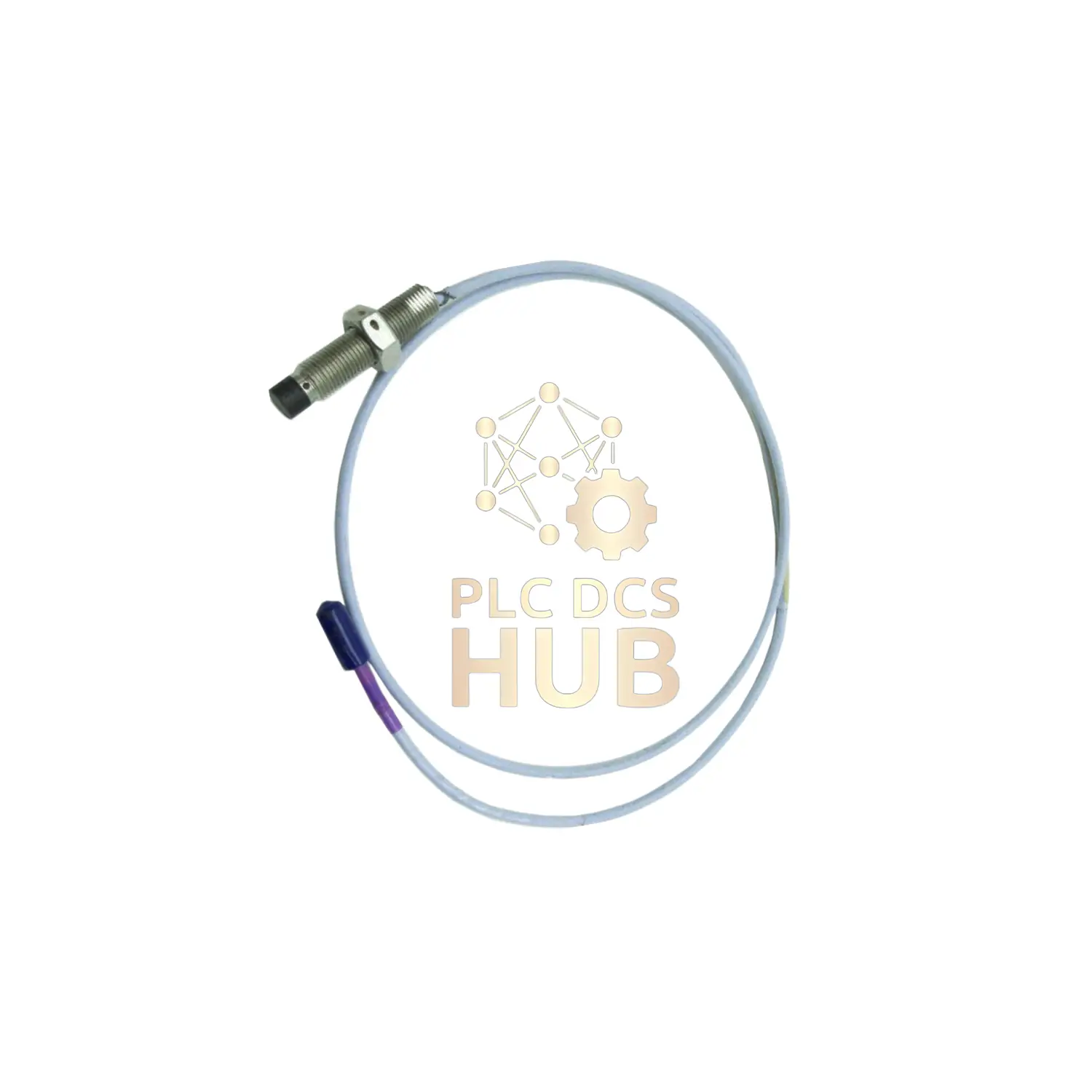

Bently Nevada Extended-Range Proximity Probe
Product Identification
- Part Number: 330701-00-40-10-02-00
- Model: 3300 XL 11 mm Probe
- Origin: Made in USA (COO available)
- Condition: Factory new in sealed packaging
Configuration Details
- 330701 – 1/2-20 UNF thread model
- 00 – Unthreaded section: 0 inch
- 40 – Case length: 4.0 inches
- 10 – Cable length: 1.0 meter
- 02 – Standard ClickLoc connector
- 00 – No agency approvals required
Technical Specifications
| Case Length | 4.0 inches (extended) |
| Electrical Resistance | 5.9 ± 0.5 Ω |
| Thread Type | 1/2-20 UNF |
| Max Thread Depth | 0.750 inch |
| Temperature Range | -51°C to +177°C |
| Bend Radius | 25.4 mm minimum |
Key Features
- Extended 4.0 inch case
- Full-threaded body design
- PPS polymer sensing tip
- Stainless steel construction
- Viton O-ring pressure seal
Installation Guide
- Recommended torque: 15.2 N•m
- Maximum thread engagement: 0.750 inch
- Minimum bend radius: 25.4 mm
- Install above -34°C to protect seals
Shipping & Support
- Package weight: 0.17 kg
- Shipping: FedEx / UPS / DHL
- Warranty: 12 months
- Delivery: Worldwide express
Frequently Asked Questions
Q: How long is the probe body?
A: 4.0 inches extended length
Q: Is the entire body threaded?
A: Yes, 0 inch unthreaded section
Q: Temperature limits during installation?
A: Keep above -34°C to protect seals
Q: Cable specifications?
A: 75Ω triaxial FEP insulation
Q: Thread depth maximum?
A: 0.750 inch engagement limit
