3300 XL 11 mm Proximity Probe | 330709-000-060-50-02-00 Metric

Description

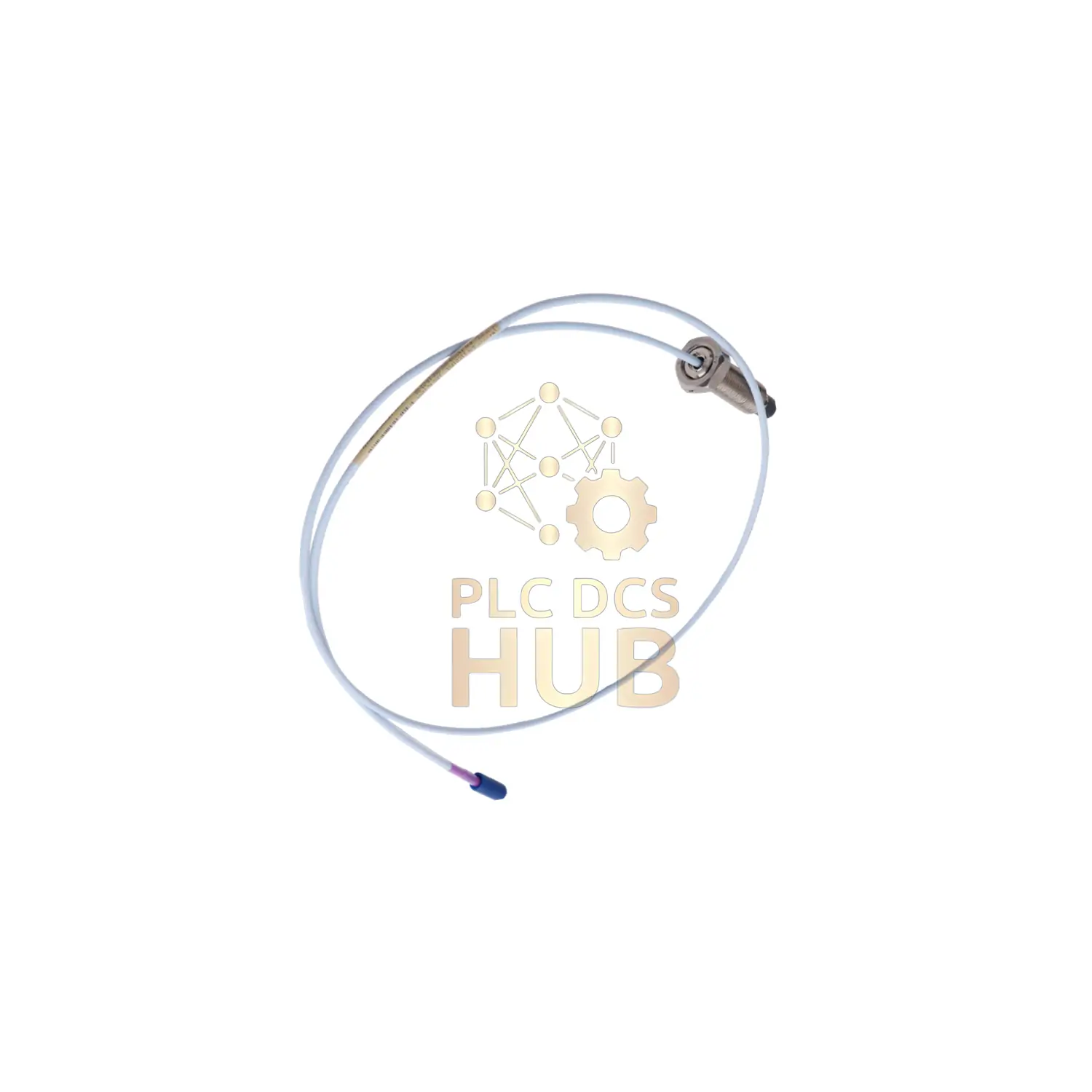

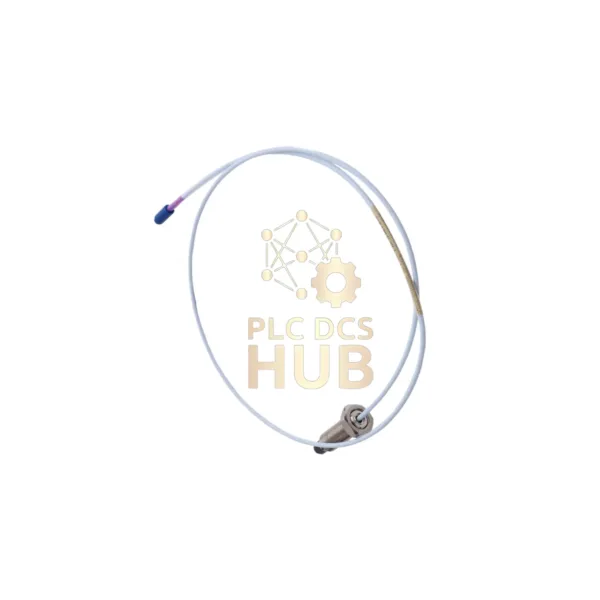

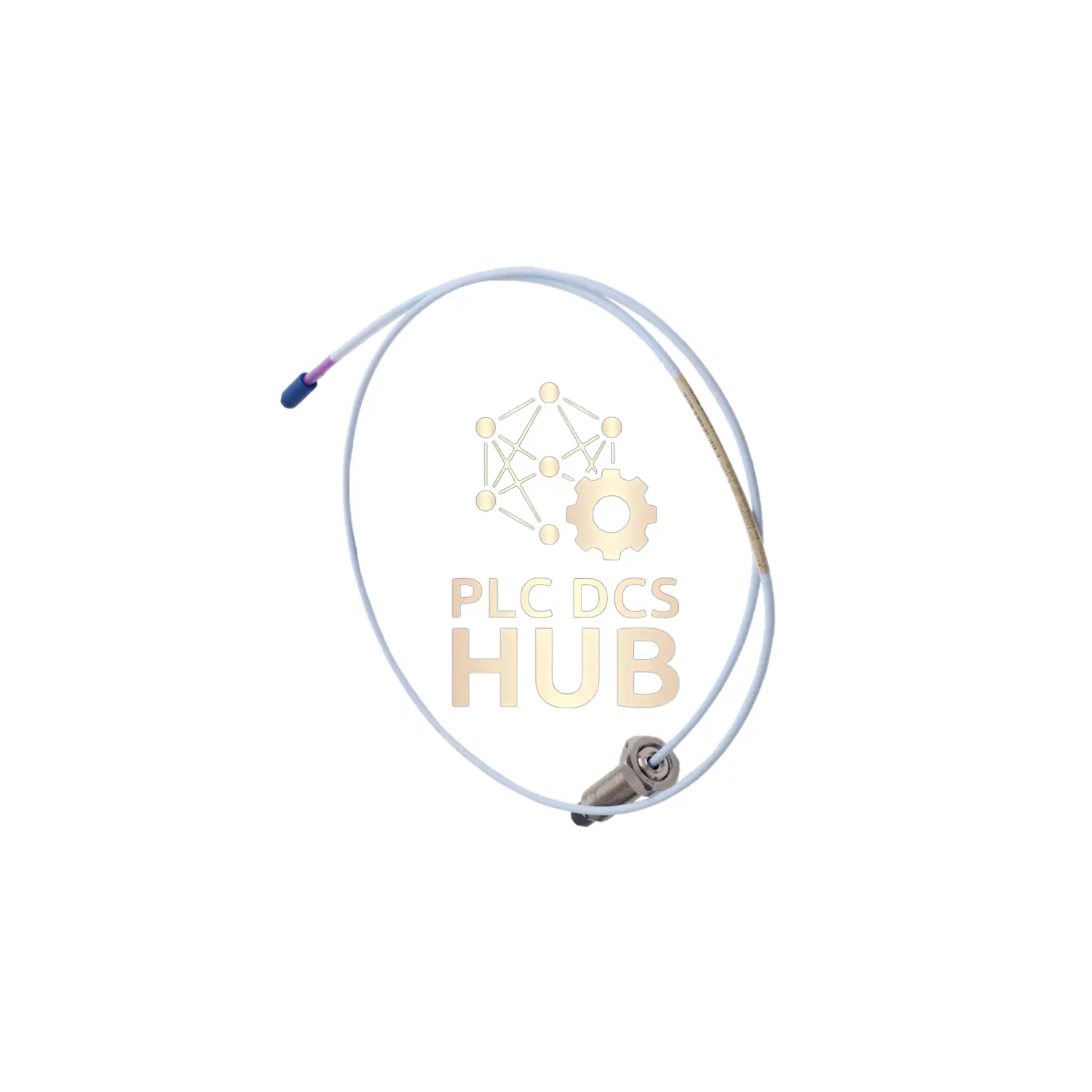

Bently Nevada 330709-000-060-50-02-00 – 11mm Proximity Probe

Full Part Number Breakdown

330709-000-060-50-02-00
├─ 000 = 0mm unthreaded
├─ 060 = 60mm case length
├─ 50 = 5.0m cable (16.4ft)
├─ 02 = ClickLoc connector
└─ 00 = No agency approvals

New Technical Parameters

• ⚡ Resistance: 7.2Ω ±0.8Ω (5m cable)
• ???? Thread: M16x1.5 (24mm max engagement)
• ????️ Material: AISI 304 SST case + PPS tip
• ???? Cable: 75Ω triaxial (FEP insulation)

Industrial Applications

• ????️ Wind Turbines: Gearbox bearing monitoring in cold climates
• ???? Pharmaceuticals: Centrifuge rotor vibration checks
• ????️ Cement Plants: Kiln drive shaft alignment

Key Performance Notes

• ⚠️ Cold Warning: Avoid temps below -34°C (-30°F)
• ???? Target Size: Min 30.5mm flat / 152mm shaft
• ???? Torque: 21.1N·m (187in·lb) recommended
