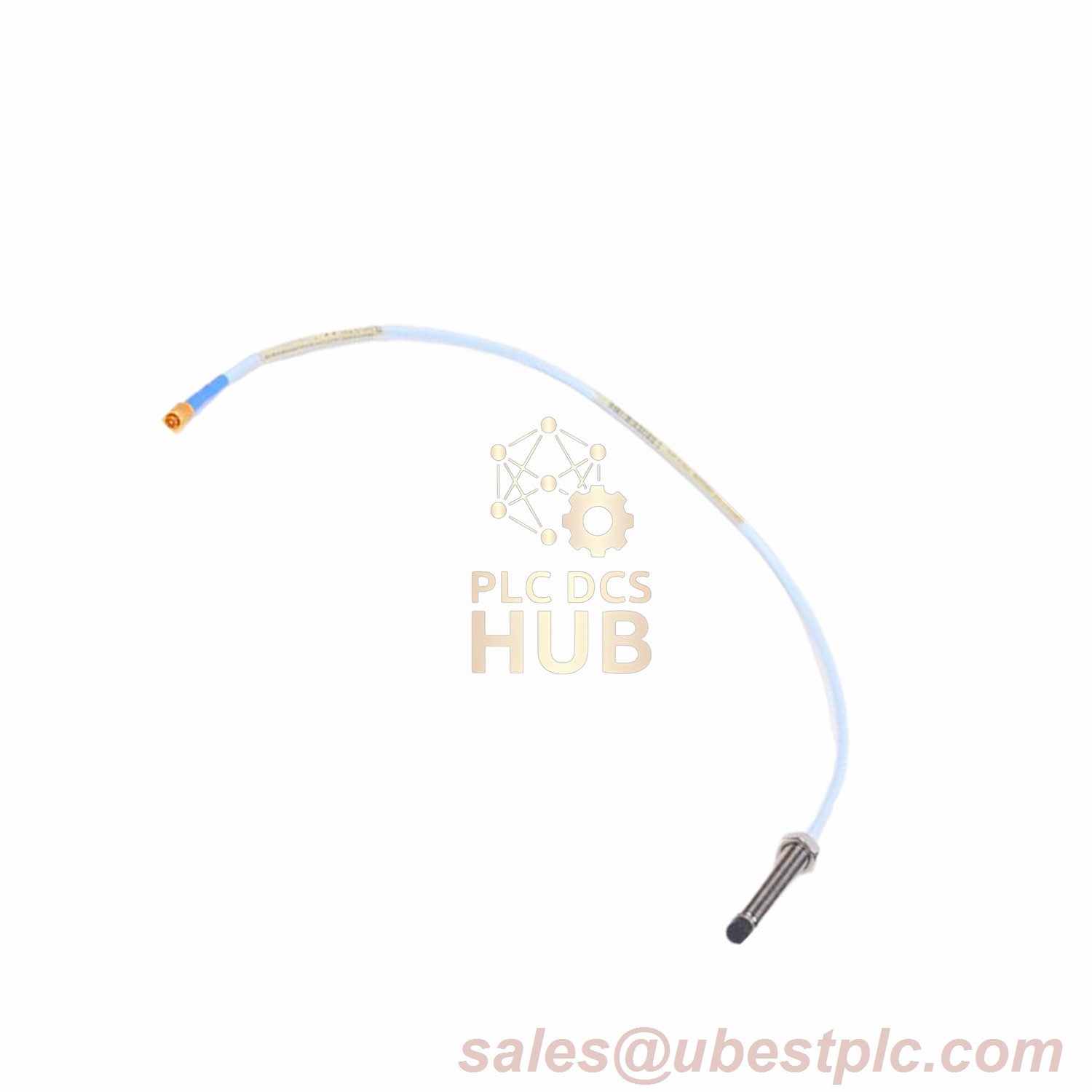

The 330105-02-12-20-02-00 is a precision reverse-mount probe designed for industrial vibration monitoring. Featuring a 2.0-meter cable and 3/8-24 UNF threads, it operates in extreme temperatures (-52°C to +177°C) with Viton® O-ring sealing. Ideal for applications requiring extended reach and reliable performance in non-hazardous environments.
Key Features
- Extended Cable Length: 2.0 m FEP-insulated triaxial cable for flexible installations.
- Reverse-Mount Design: Compact installation in confined machinery spaces.
- Precision Resistance: 7.88 Ω ±0.50 Ω ensures stable signal accuracy over long distances.
- Industrial Durability: PPS probe tip + 304 stainless steel case for harsh environments.
- Cost-Efficient Compliance: No agency certifications (“00” suffix) for general use.
Technical Specifications
| Model | 330105-02-12-20-02-00 |
|---|---|
| Suffix Codes | 02: 3/8-24 UNF threads 12: Probe series identifier 20: 2.0-meter cable length 02: Miniature ClickLoc connector 00: No agency certifications |
| Resistance | 7.88 Ω ±0.50 Ω (center to outer conductor) |
| Temperature Range | -52°C to +177°C (probe tip) | -51°C to +260°C (cable) |
| Thread Engagement | 0.563 in (14.3 mm) maximum |
