Description
Core Specifications

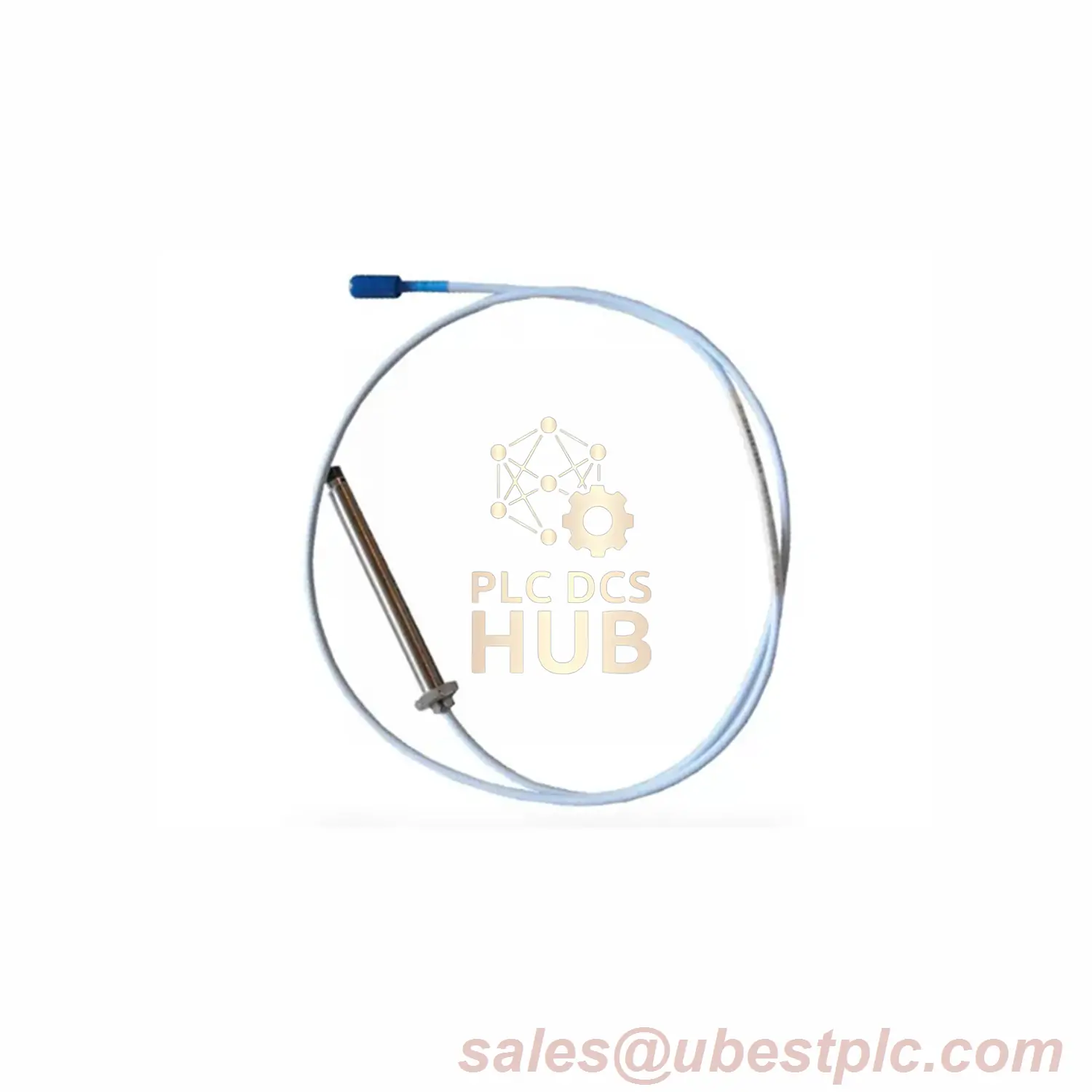

Bently Nevada 3300 XL 8 mm Probe (P/N: 330101-00-12-10-02-00) – Built for harsh industrial environments with 3/8-24 UNF thread and no armor. Made in the USA.
Suffix Breakdown for 330101-00-12-10-02-00
- 00: Unthreaded Length = 0.0 in
- 12: Case Length = 1.2 in
- 10: Total Length = 1.0 m (3.3 ft)
- 02: ClickLoc connector + standard cable
- 00: No agency approvals required
Enhanced Performance
- TipLoc & CableLoc Tech: 75 lbf pull strength for cable durability.
- FluidLoc Option: Blocks oil leaks in high-pressure systems.
- Rugged 8 mm Tip: PPS plastic shields coil for 2x longer lifespan.
Critical Data
Electrical
- Resistance: 7.59Ω ±0.50
- Capacitance: 69.9 pF/m
- Output: 7.87 V/mm (±5%)
Physical
- Weight: 323 g/m (11.4 oz)
- Temp Range: -52°C to +177°C
- ETR Option: -52°C to +218°C
Real-World Uses
- ????️ Oil Refinery Pumps: Monitor bearing wear in corrosive crude oil systems.
- ⚡ Wind Turbine Gearboxes: Detect misalignment in sub-zero Arctic farms.
- ???? Chemical Mixers: Prevent leaks in high-humidity PVC production lines.
Key Notes
- Max Cable Run: 305 m (1,000 ft)
- Gap Setting: -9 Vdc (50 mils)
- Certifications: Add COO if needed
- Warranty: 1 year
Need Help?
Email sales@ubestplc.com for specs or custom testing.
