Description

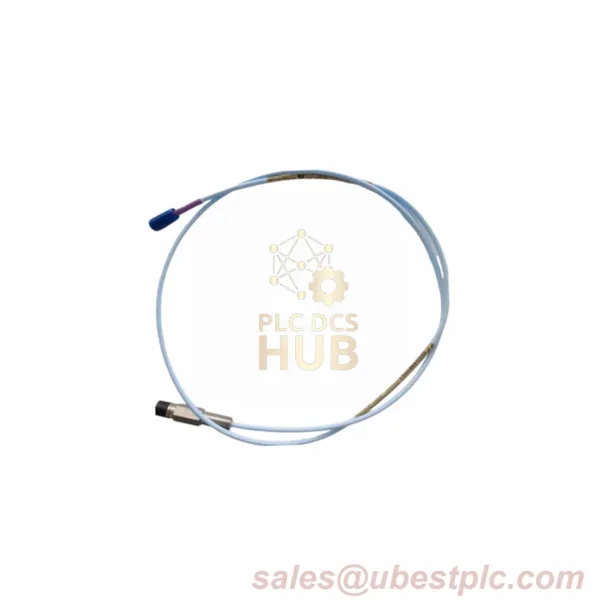

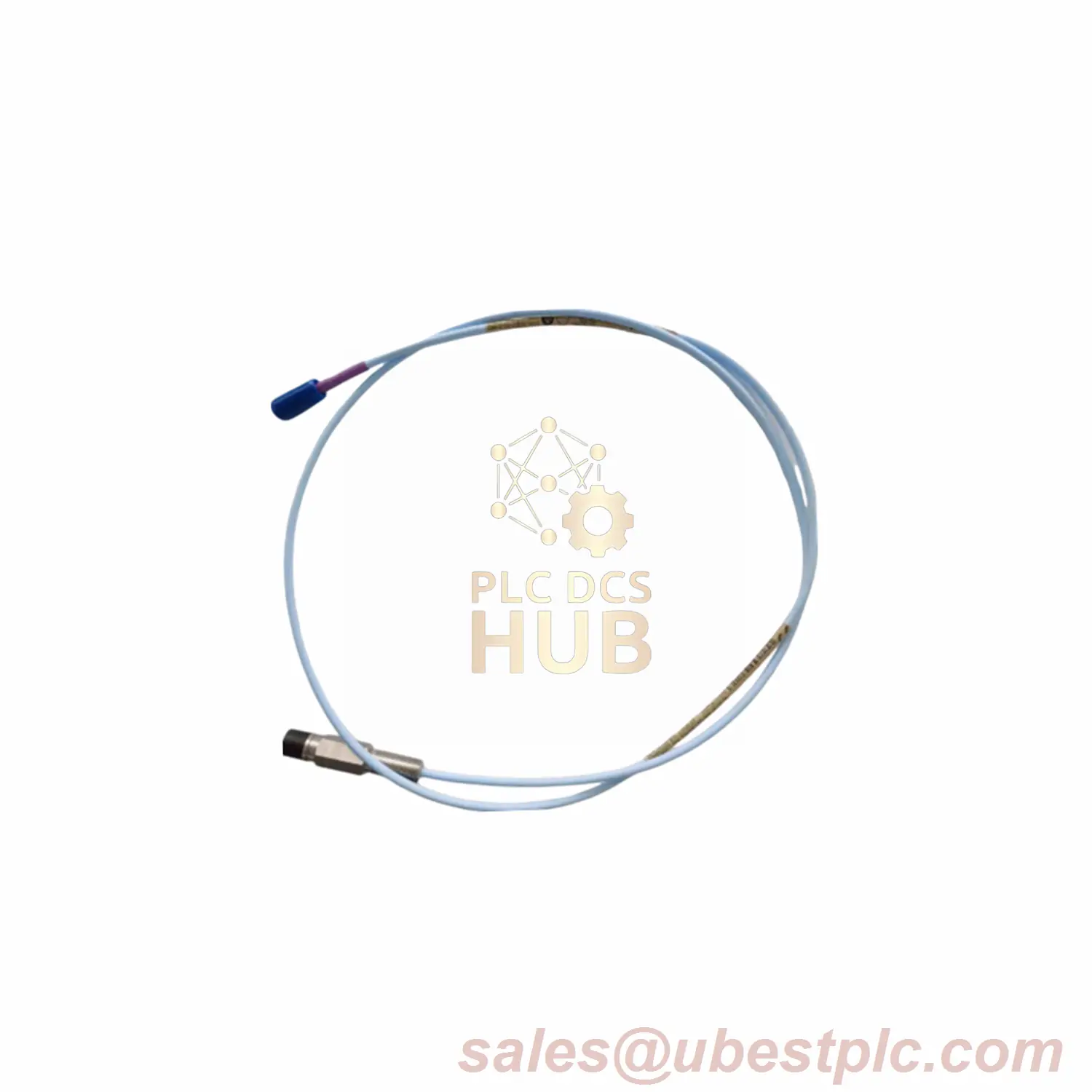

Key Features for 330101-55-90-10-01-CN
- ⚡ 9in Long Case (Code 90)
- ⚡ 5.5in Unthreaded (Code 55)
- ⚡ China Certifications (Code CN)
- ⚡ 7.59Ω ±0.5 at 1m
Full Model Code for 330101-55-90-10-01-CN
| Code | Specification |
|---|---|
| 55 | 5.5in Unthreaded |
| 90 | 9.0in Case |
| 10 | 1.0m Cable |
| 01 | ClickLoc Connector + Protector |
| CN | China GB Standards |
Technical Data
| Parameter | Value |
|---|---|
| Temperature Range | -52°C to +260°C |
| Linear Range | 2mm (80 mils) |
| Cable Pull Strength | 330N (75 lbf) |
| Humidity Resistance | <3% ASF @93% RH |
Installation Tips
- ???? Use in high-vibration zones
- ???? Max wiring: 305m (1,000ft)
- ???? Set gap at -9 Vdc (1.27mm)
Certifications
- ✅ China GB/T 3836-2010
- ✅ IECEx Ex nA IIC T4
- ✅ RoHS & FCC Compliant
Real-World Use
Monitors wind turbine gearboxes detecting bearing wear in -30°C to +80°C environments with saltwater exposure.
Package Includes
- ???? 1x Probe (9in case)
- ???? Connector Protector
- ???? 1-Year Renewable Warranty
Contact
???? sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
