Description

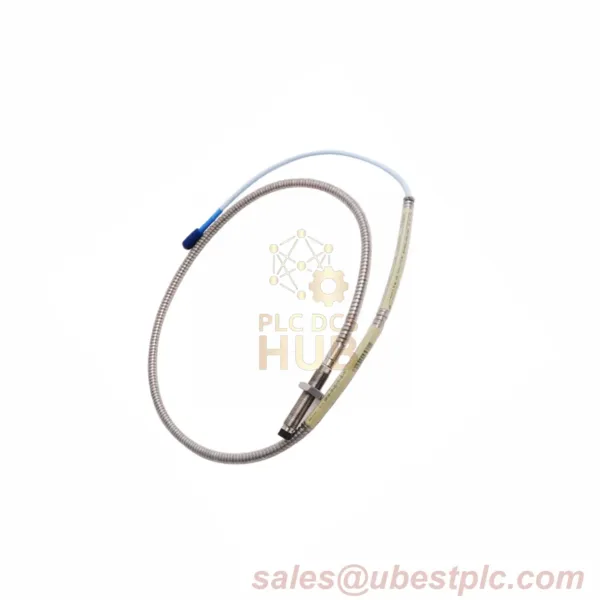

Bently Nevada 3300 XL 8 mm Proximity Probe
The 330103-00-03-10-01-CN is a compact, high-accuracy vibration sensor designed for space-constrained industrial environments. Featuring a 30mm case length and M10x1 threading, it provides precise gap measurement with a 1.0m standard cable and connector protector for enhanced durability. Ideal for critical machinery requiring reliable displacement monitoring.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-03-10-01-CN
- Suffix Details: 00 (0mm Unthreaded), 03 (30mm Case), 10 (1.0m Cable), 01 (Connector Protector), CN (Country Approval)
- Measurement Range: 0.25–2.3 mm (10–90 mils)
- Output Voltage: -1 Vdc to -17 Vdc
- Resistance Tolerance: 7.59 Ω ±0.50 at 1.0m
- Max Cable Length: 305 meters (1,000 ft)
- Thread Engagement: 15mm max (M10x1)
- Weight: 323 g/m (11.4 oz)
- Seal Material: Viton® O-Ring (non-pressure-tested)
Installation & Compatibility
- Wiring: 0.2–1.5 mm² shielded triad; tinned conductors recommended
- Gap Setting: -9 Vdc (1.27 mm / 50 mils) for radial vibration
- Compatible Systems: Bently Nevada 3300 XL Proximitors & monitoring units
Applications
Deployed in wind turbine gearboxes to monitor bearing wear and prevent catastrophic failures. Case Study: Installed on a paper mill’s high-speed dryer roller, reducing vibration-related downtime by 40% through early misalignment detection.
Contact: For quotes or technical specifications, email sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
