Description

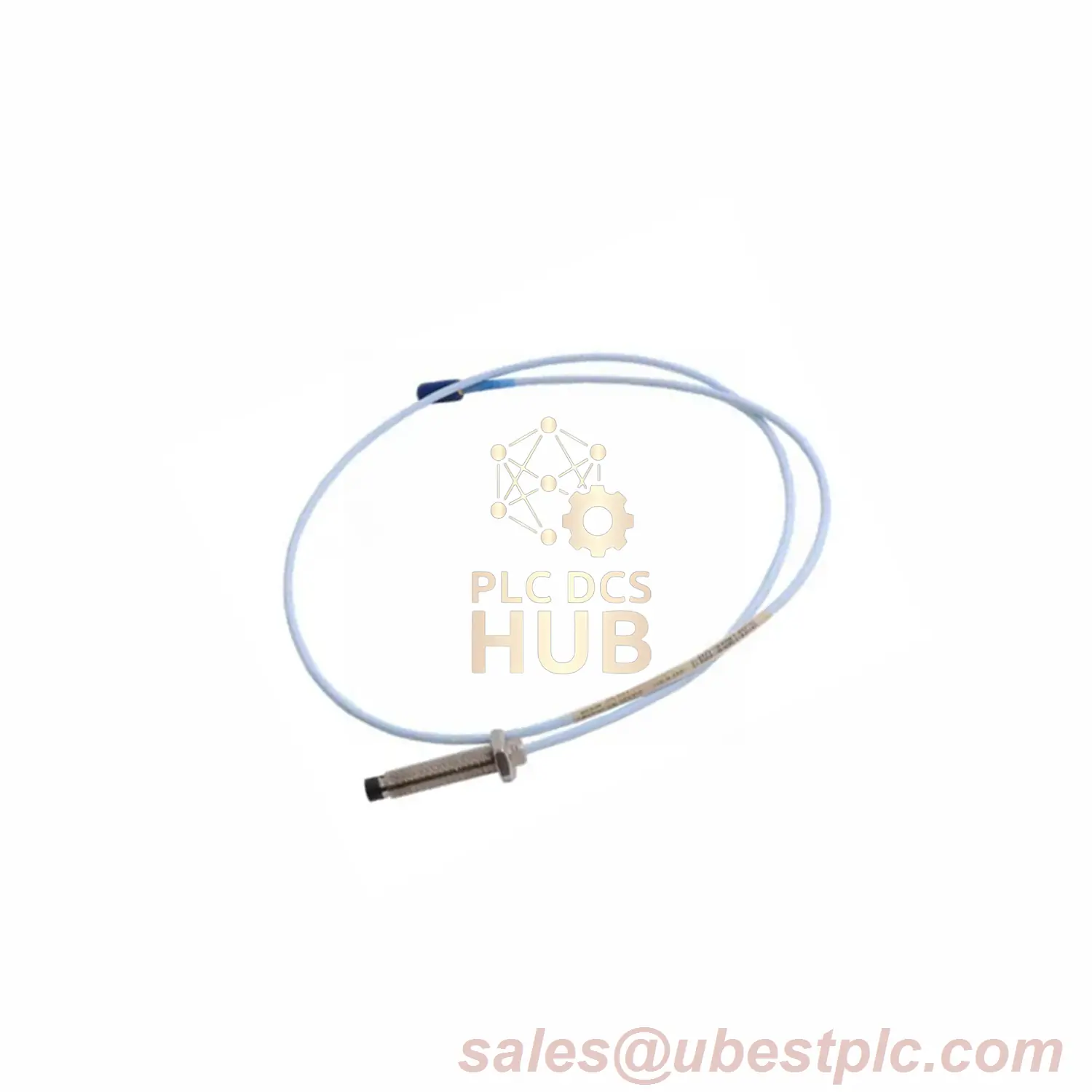

Bently Nevada 3300 XL 8 mm Proximity Probe
Model: 330103-20-25-05-02-CN
| Suffix Code | Parameter |
|---|---|
| 330103 | Base Model: 8 mm Probe, M10x1 Thread (No Armor) |
| 20 | Unthreaded Length = 200 mm |
| 25 | Case Length = 250 mm |
| 05 | Cable Length = 0.5 m (1.6 ft) |
| 02 | Connector: ClickLoc Miniature Coaxial |
| CN | Agency: Country-Specific Certification |
Core Technical Data for 330103-20-25-05-02-CN
- Measurement Range: 0.25–2.3 mm (10–90 mils)
- Accuracy: DC Resistance 7.45 Ω ±0.50 @ 0.5 m
- Output: Linear -1 to -17 Vdc
- Temperature Limits:
- Probe Tip: -52°C to +218°C
- Cable: -51°C to +260°C
- Thread Specs: M10x1 (15 mm Max Engagement)
Key Upgrades
- Extended Case Design: 250 mm case for deep-thread installations.
- High-Pressure Seal: Viton® O-ring (custom pressure testing available).
Certifications
- ATEX/IECEx: Zone 0 (AEx/Ex ia IIC T5-T1 Ga)
- Humidity Compliance: IEC 68-2-3 (93% RH, 56 days)
Industrial Applications
- Mining Conveyor Systems: Monitors roller bearings in dusty, high-vibration environments (-20°C to +120°C).
- Food Processing Mixers: Stainless steel case resists corrosion in washdown areas with 90% humidity.
Contact for Customization: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
