Description
Compact Hazardous-Area Sensor

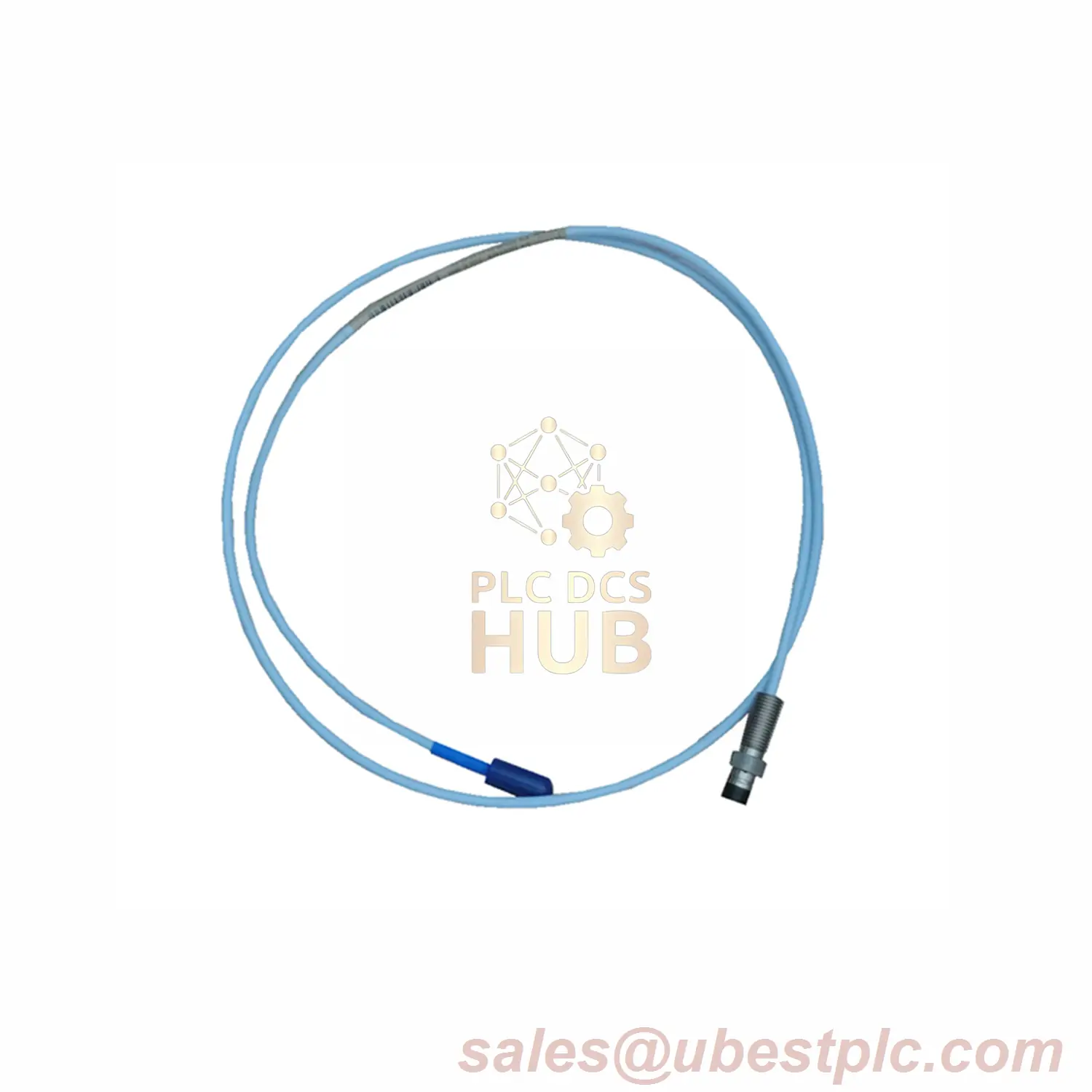

The Bently Nevada 330103-00-07-10-01-05 combines compact design with explosive atmosphere compliance. Featuring a 70mm stainless steel case and IP67-rated ClickLoc protector, this triple-certified probe delivers precise vibration data in confined hazardous spaces. With M10x1 threading and extended temperature resilience, it’s engineered for mission-critical industrial monitoring.
Identification Breakdown
| Performance Highlights
|
Certification Matrix
- ATEX: II 1/2G Ex ia/nA IIC T4-T6
- IECEx: Ex ia IIC T4 Ga (Zone 0)
- CSA: Cl I Div 1 GP A-D; Cl I Zone 0 AEx ia
Installation Protocols
Mechanical
- Torque specification: 12±2 Nm
- Radial clearance: ≥3mm from adjacent surfaces
Electrical
- Shield termination: 360° circumferential contact
- Grounding resistance: <1Ω to chassis
Industrial Implementations
Wind Turbine Gearboxes
Monitors planetary carrier vibrations in 3-6MW turbines, surviving ±15g transient shocks during grid fault events.
Food Processing Mixers
Track bearing wear in USDA-compliant environments with high-pressure washdown resistance (100 bar spray tested).
Ordering Details
- Includes: Probe, connector guard
- Optional: 316L SST upgrade for chloride environments
Certification queries: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
