Description

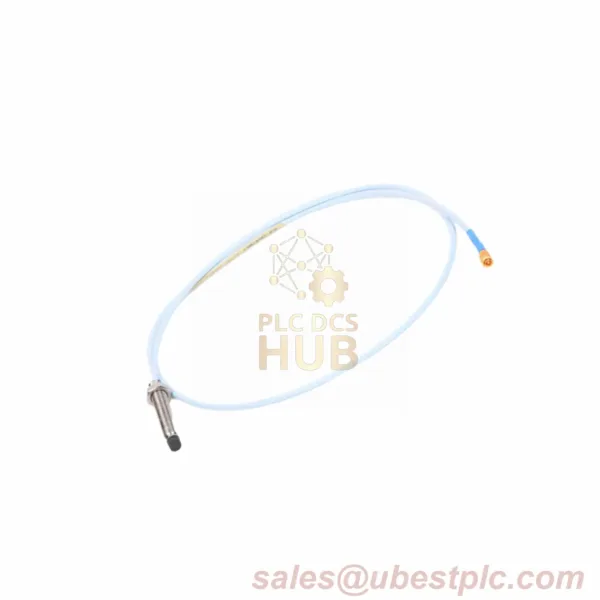

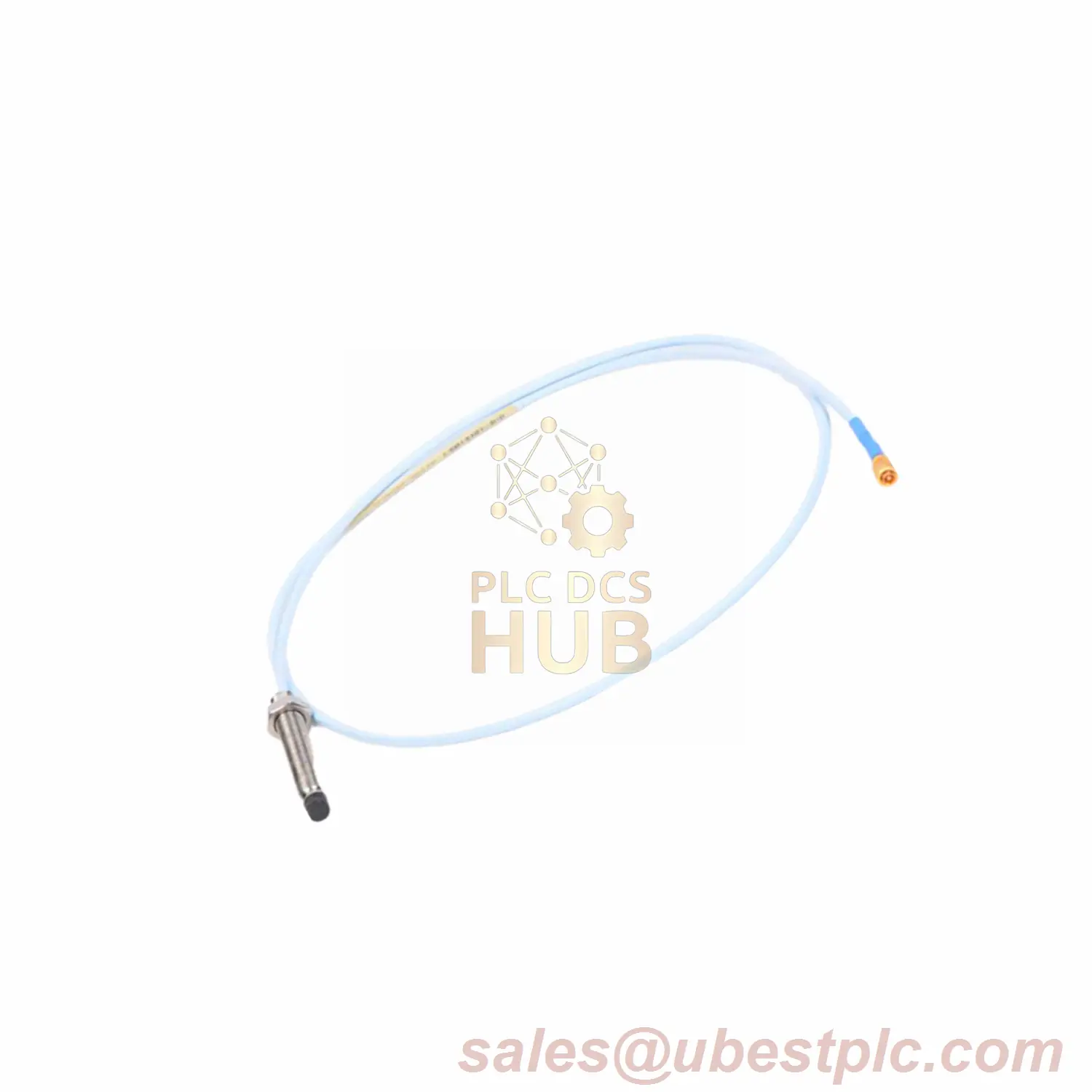

Heavy-Duty Machinery Sensor
The Bently Nevada 330103-00-16-10-02-05 features an extended 160mm case length for deep installation in high-vibration systems. With triple hazardous-area certification and military-grade ClickLoc connectivity, this 8mm probe delivers reliable performance in extreme industrial environments. Its PPS/Viton® sealing system resorts chemical corrosion and thermal cycling.
- Model Description
- 330103-00-16-10-02-05
- –00(0mm unthreaded)
- –16(160mm case)
- -10(1m cable)
- –02(ClickLoc)
- –05(CSA/ATEX/IECEx)
- Advanced Metrics
- Transient recovery: <2ms after 50g shock
- Thermal drift: 0.02%/°C (typ)
- EMC compliance: EN 61326-1:2020
Certification Profile
- ATEX Directive: 2014/34/EU Cat. 1G
- IECEx Scheme: IECEx UL 19/0042X
- CSA Standard: C22.2 No. 0-M91
Installation Engineering
Mechanical
- Resonant frequency: 28kHz ±10%
- Mounting depth: ≥120mm into ferrous material
Electrical
- Insulation resistance: 100MΩ @ 500VDC
- Surge withstand: 4kV (1.2/50μs)
Sector Applications
Nuclear Plant Coolant Pumps
Monitors shaft runout in ASME QME-1 qualified systems, withstanding 15MRad gamma radiation exposure.
Mining Crusher Drives
Detects gear tooth defects in ISO 1940/5 G6.3 balanced systems operating at 750-1800 RPM under particulate contamination.
Radiation-hardened version: Email sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
