Description
Full Part Number Breakdown

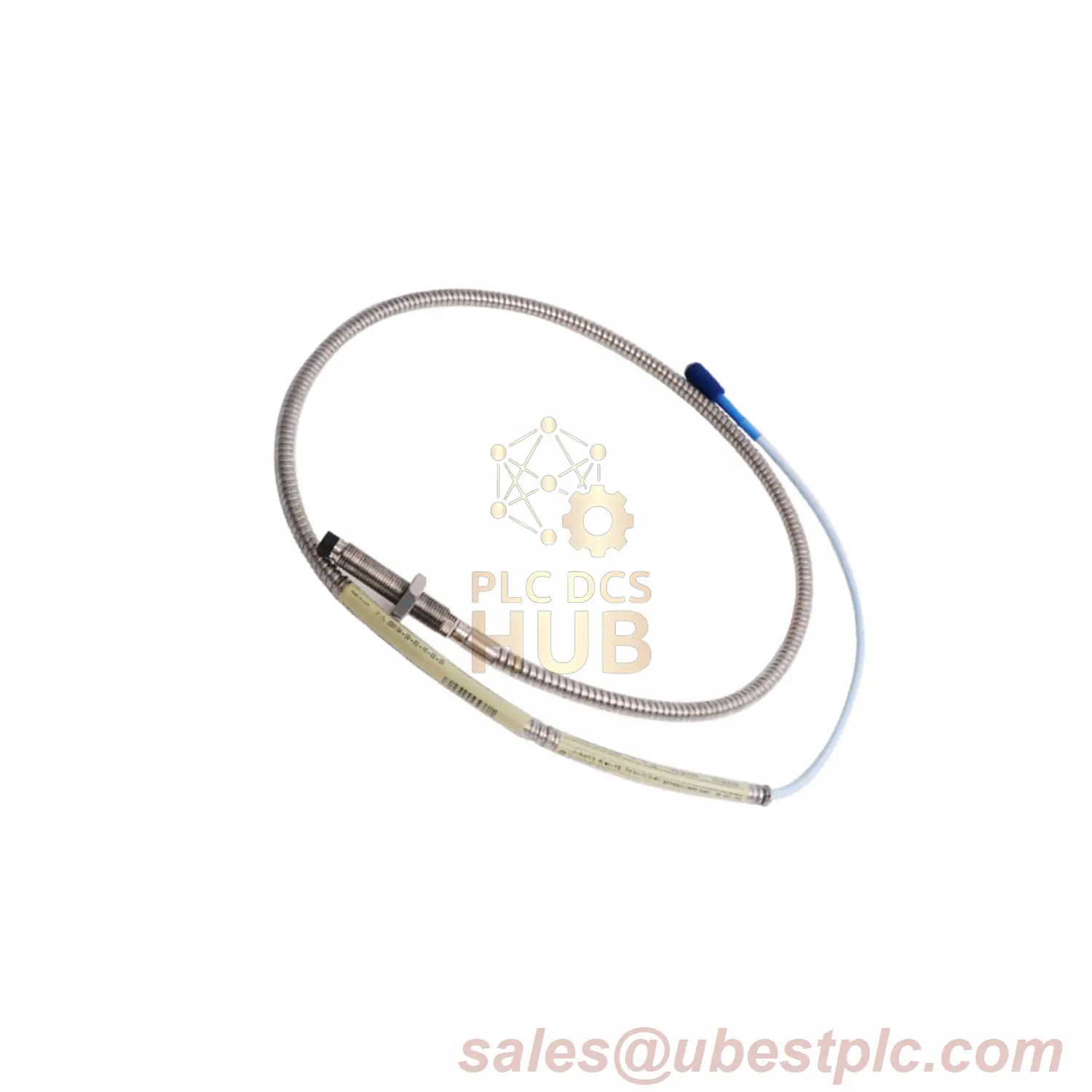

330104-00-10-50-02-CN decodes as:
- 330104: Base model (3300 XL 8mm with armor)
- 00: Unthreaded length = 0mm
- 10: Case length = 10mm
- 50: 5.0m cable (16.4ft)
- 02: ClickLoc connector
- CN: Local country approvals
Complete Technical Specifications
| Parameter | Value | Standard |
|---|---|---|
| Thread Type | M10x1 | ISO 68-1 |
| DC Resistance (5m) | 8.73Ω ±0.50 | ASTM B193 |
| Voltage Range | -17.5Vdc to -26Vdc | IEC 60079-11 |
Certification Details
- CN Approval: Meets local Ex ia IIC T1-T5 standards
- Hazardous Areas: Zone 0/1/2 (Gas) & Zone 20/21/22 (Dust)
- Temp Class: T1 (-55°C to +232°C)
Physical Configuration
- Armor: Double-layer SST protection
- Probe Tip: PPS plastic (3mm thickness)
- Cable Jacket: FEP/PFA options
Installation Requirements
- Target Material: AISI 4140 steel
- Gap Setting: 1.27mm ±0.13mm
- Max Mounting Torque: 22Nm
Industry Applications
- Oil rig pump monitoring systems
- Nuclear plant coolant circulation
- Cement kiln bearing protection
Package Contents
- 1x 5.0m armored probe assembly
- M10x1 thread adapters
- Calibration certificate
- CN compliance documents
Need Customization? Contact sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
