Description

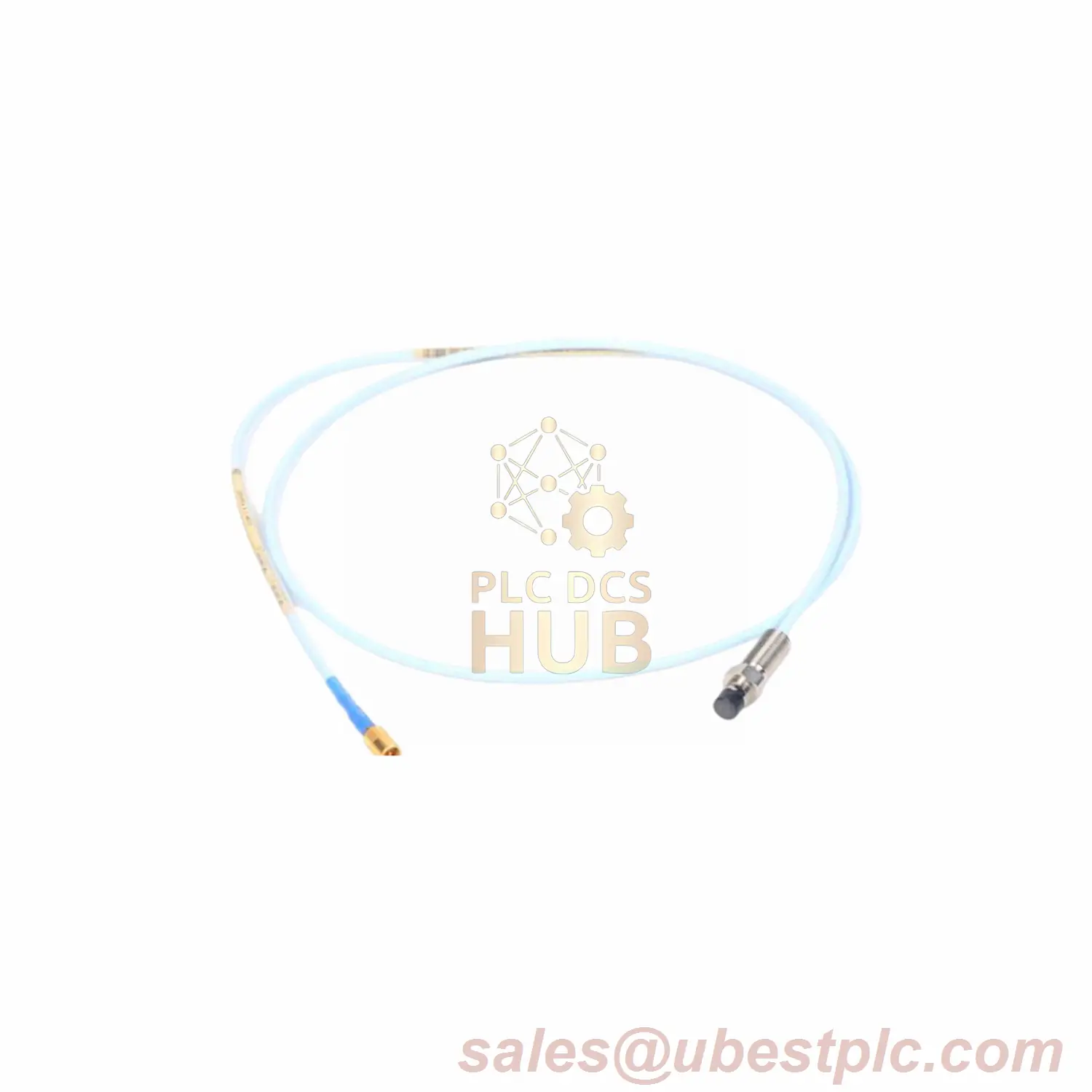

Bently Nevada 3300 XL Proximity Probe
Model: 330103-00-04-10-12-CN
Key Features
- Brand: Bently Nevada
- Probe Type: 8mm Diameter, M10x1 Thread, Unarmored
- 330103-00-04-10-12-CN Suffix Details:
- 00: 0mm Unthreaded Section
- 04: 40mm Case Length (Extended Design)
- 10: 1.0m Cable (3.3 ft)
- 12: FluidLoc Cable + ClickLoc Connector
- CN: Country-Specific Certification
Critical Performance Data
- Resistance: 7.59Ω ±0.50 (DC @1.0m)
- Frequency Stability: Optimized for High-Speed Machinery (Up to 25 kHz)
- Cable Type: FluidLoc™ (Oil/Water Resistant Jacket)
- Installation Depth: Max 15mm Thread Engagement
Environmental Specifications
- Seal Material: Viton® O-Ring (Non-Pressure-Tested by Default)
- Temperature Limits:
- Probe Tip: -52°C to +218°C
- Cable: -51°C to +260°C (FluidLoc™ Enhanced)
- Humidity Resistance: <1% Signal Drift @93% RH (56 Days)
Compliance & Safety
- AEx/Ex ec IIC T5-T1 (Zone 2 Certified)
- CN-Specific Industrial Approvals
- IEC 68-2-3 Compliant Humidity Performance
Industry Applications
- Food Processing: Hygienic Vibration Monitoring in High-Pressure Cleaning Systems
- Aerospace: Rotor Balance Testing for Turbine Engine Prototypes
- Wind Energy: Gearbox Health Analysis in Offshore Wind Turbines
Package & Support
- Included: Probe Unit, FluidLoc Cable, Mounting Guide
- Warranty: 12 Months (Extended Coverage)
- Contact: sales@ubestplc.com for CN Certification Docs
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
