Description
Key Features
Designed for precision vibration monitoring, the 330103-00-06-05-02-CN combines a 60 mm stainless steel case and 0.5 m cable for compact installations. Ideal for detecting shaft displacement and radial vibration in high-temperature environments.

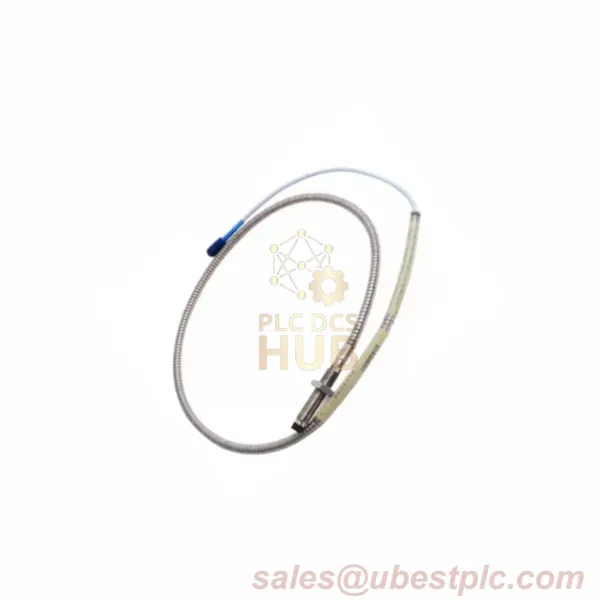

Model: 330103-00-06-05-02-CN
Configuration Breakdown:
- Base Code: 330103 (8 mm Probe, M10x1 Thread, Unarmored)
- 00: Unthreaded Length = 0 mm
- 06: Case Length = 60 mm
- 05: Cable Length = 0.5 m (1.6 ft)
- 02: ClickLoc Connector
- CN: Country-Specific Certifications
Technical Specifications
- Linear Range: 0.25–2.3 mm (10–90 mils)
- DC Resistance: 7.45 Ω ±0.50 @ 0.5 m
- Output Voltage: -1 to -17 Vdc
- Temperature Range:
- Standard: -52°C to +177°C
- Extended: +260°C (Cable)
- Thread Engagement: M10x1 (Max 15 mm)
- Weight: 323 g/m (11.4 oz)
Certifications & Compliance
- ATEX/IECEx: AEx/Ex ia IIC T5-T1 Ga (Zone 0)
- Humidity Resistance: <3% ASF change @ 93% RH (IEC 68-2-3)
- Agency Approval: CN-specific industrial certifications
Real-World Applications
- Hydroelectric Turbine Shaft Monitoring: Operates reliably in high-humidity environments below +40°C.
- Chemical Processing Pumps: Detects bearing wear in corrosive atmospheres using 0.5 m short-range wiring.
Contact: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
