Description

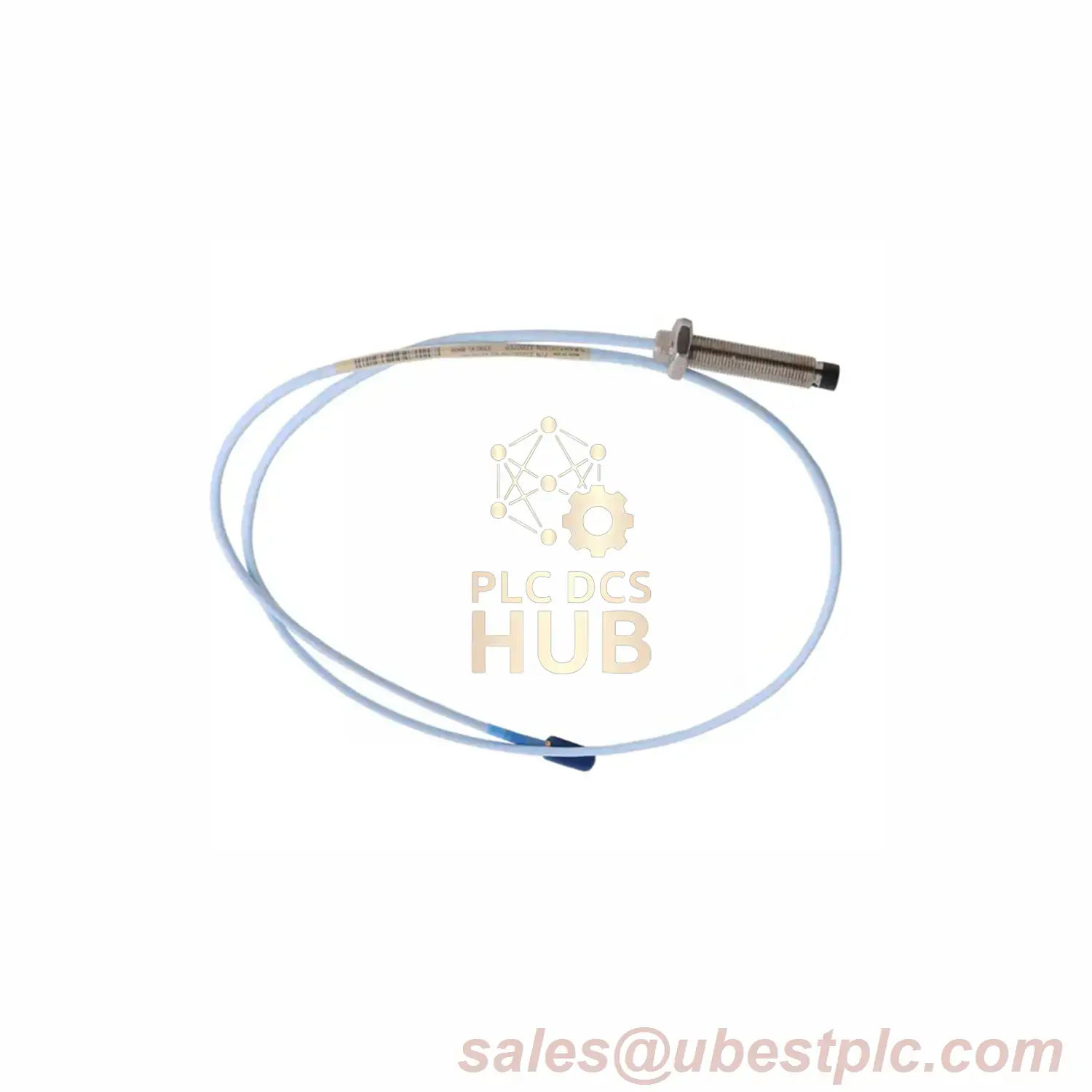

Bently Nevada 3300 XL 8mm Proximity Probe
Advanced industrial-grade vibration sensor (330103-00-07-05-02-CN) with extended case design for challenging environments. Optimized for shaft displacement monitoring in high-speed rotating machinery.
Technical Specifications
- Brand: Bently Nevada
- Full Model Suffix for 330103-00-07-05-02-CN:
00 (000mm Unthreaded) |
07 (70mm Case Length) |
05 (0.5m Cable) |
02 (ClickLoc Connector) |
CN (Regional Certification) - Measurement Range: 0.25-2.3mm (10-90 mils)
- Sensitivity: -1V/mm ±5%
- Probe Resistance: 7.45Ω ±0.50 @20°C
- Extended Temp: -52°C to +218°C (Tip)
- Frequency Response: 0-10kHz (±3dB)
- Insulation: >100MΩ @500VDC
Mechanical Configuration
- 70mm stainless steel case (AISI 303/304)
- M10×1 threading with 15mm max engagement
- PPS tip material (chemical-resistant)
- Viton® O-ring pressure seal
Certifications & Compliance
- ATEX: II 2G Ex ia IIC T4 Gb
- IECEx: Ex ia IIC T4 Ga
- UL Class I Div 2 Groups ABCD
- CE/RoHS compliant
Installation Parameters
- Optimal radial gap: 1.27mm (50 mils @-9VDC)
- Cable specification: 3C shielded 24AWG
- Max signal loss: <3% @1000ft (305m)
Application Scenarios
- Refinery centrifugal compressor monitoring
- Mining conveyor drive shaft protection
- Wastewater treatment plant pump arrays
Package Includes
- Probe assembly with 0.5m integral cable
- ClickLoc connector kit
- Installation torque guide
- ESD-safe packaging
Technical Support: sales@ubestplc.com | Custom pressure testing available
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
