Description

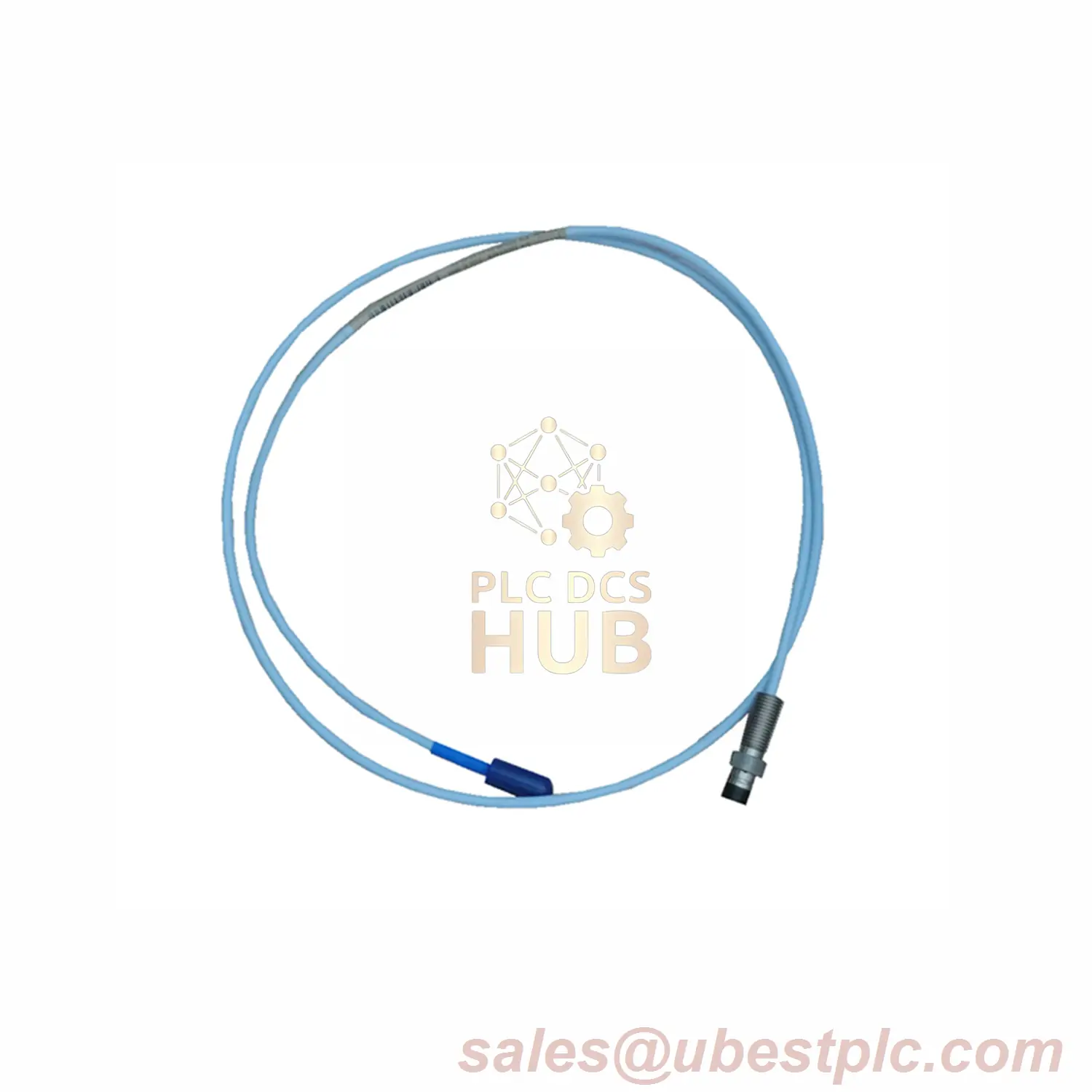

Bently Nevada 3300 XL 8 mm Proximity Probe
Model: 330103-00-07-20-02-00
Configuration Breakdown
- Base Model: 330103 (M10x1 Thread, Unarmored)
- 00: 0 mm Unthreaded Length
- 07: 70 mm Case Length
- 20: 2.0 m Cable (6.6 ft)
- 02: ClickLoc Miniature Connector
- 00: No Agency Certification
Key Technical Specifications for 330103-00-07-20-02-00
| Measurement Range | 0.25–2.3 mm (10–90 mils) | Output Signal | -1 to -17 Vdc |
| DC Resistance | 7.88 Ω ±0.50 @ 2.0 m | Weight | 323 g/m (11.4 oz) |
| Temperature Range | -52°C to +177°C | Thread Spec | M10x1 (15 mm max) |
Key Features
- Extended Cable: 2.0 m length for flexible installations.
- Seal Material: Viton® O-ring (custom pressure testing available).
- Humidity Stability: <3% ASF drift @ 93% RH (IEC 68-2-3).
Industrial Applications
- Beverage Bottling Lines: Monitors conveyor motor vibrations in high-moisture environments with 70 mm corrosion-resistant housing.
- HVAC Cooling Towers: Detects fan imbalance in temperature-controlled systems (-10°C to +50°C).
Safety & Compliance
- Material: AISI 303/304 stainless steel case & PPS tip.
- Wiring: 16–24 AWG shielded triad cable (max 305 m).
Contact Support: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
