Product Description

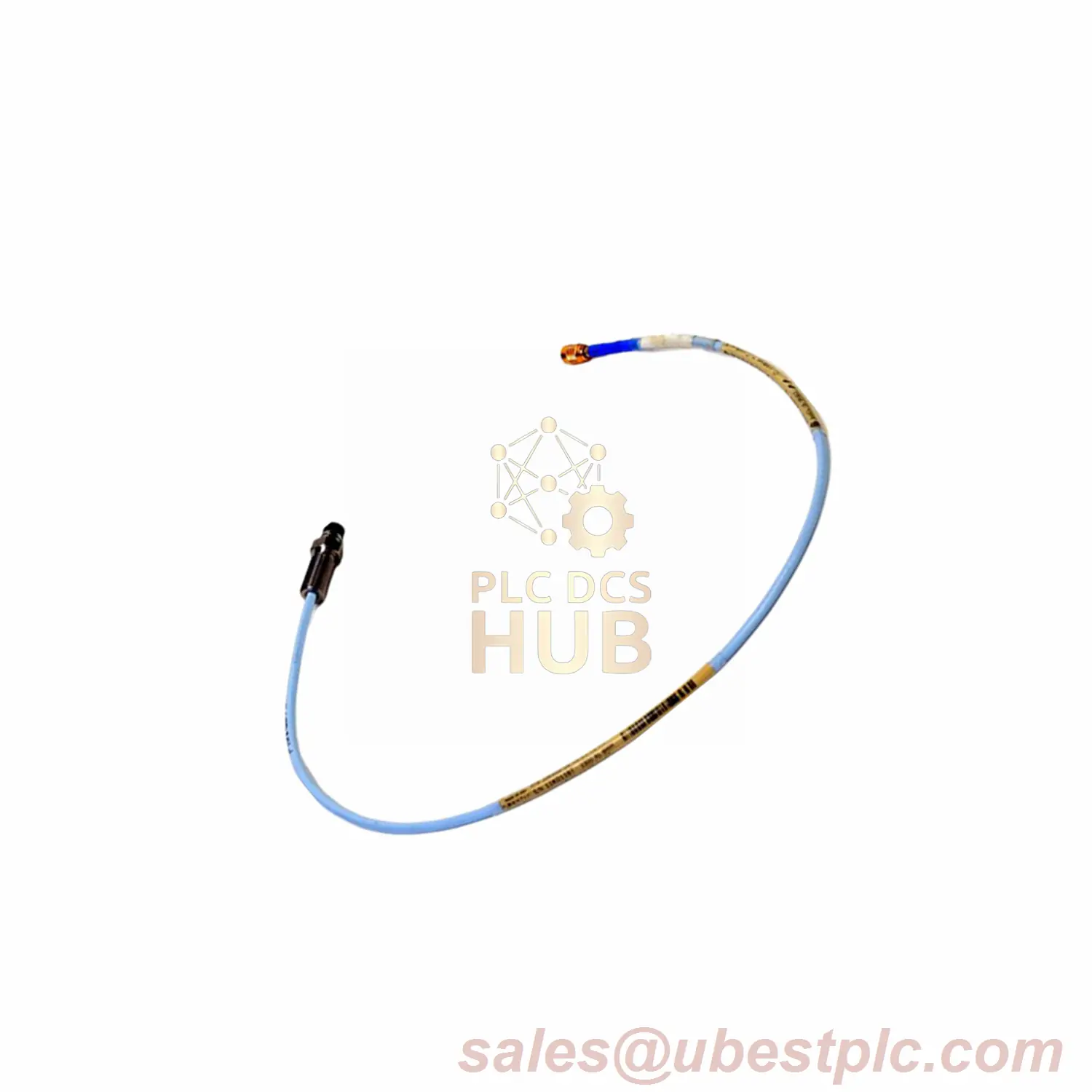

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330103-00-12-10-02-CN) is a high-performance sensor designed for precise vibration and position monitoring in industrial machinery. Featuring a stainless steel case and PPS probe tip, it ensures durability in harsh environments. The probe includes a Vitron® O-ring seal for pressure differential protection and offers flexible installation with M10x1 threading.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-12-10-02-CN
- Range: 2 mm (80 mils), linear from 0.25 mm to 2.3 mm
- Accuracy: DC Resistance 7.59 ±0.50 Ω (1.0 m cable)
- Output Signal: -1 to -17 Vdc (Recommended gap: -9 Vdc @1.27 mm)
- Operating Temperature: -52°C to +177°C (Standard) / -52°C to +218°C (Extended)
Model Suffix Breakdown
- 00: Unthreaded Length = 0 mm
- 12: Case Length = 120 mm
- 10: Cable Length = 1.0 meter
- 02: Miniature ClickLoc connector
- CN: Country-specific agency approvals
Installation Guidelines
- Use 3-conductor shielded triad cable (0.2-1.5 mm² / 16-24 AWG)
- Max wiring length: 305 meters (1,000 feet)
- Thread engagement: 15 mm max for M10x1
Compatibility & Certifications
- ATEX/IECEx: AEx/Ex ia IIC T1-T5 (Zone 0), AEx/Ex ec IIC (Zone 2)
- Groups: Class I/II/III for hazardous areas
- Compatible with intrinsic safety barriers (Drawing 141092) and galvanic isolators
Application Examples
- Gas turbine vibration monitoring
- Compressor shaft position detection
- Power generation equipment diagnostics
Contact: sales@ubestplc.com for customization or pressure seal testing.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
