Description
Compact Chinese Market Sensor

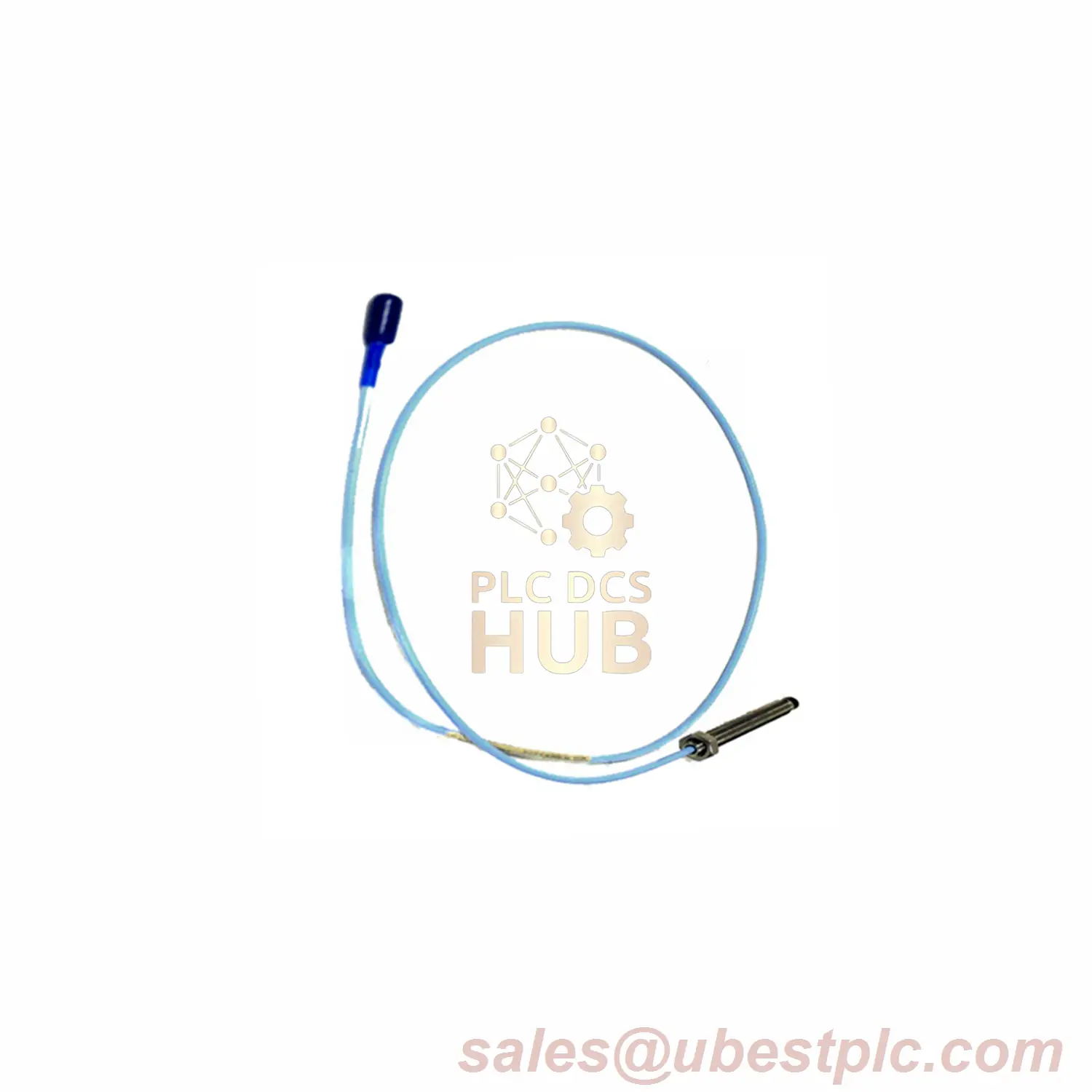

The Bently Nevada 330103-01-04-10-02-CN features a 40mm ultra-compact case with 10mm unthreaded section, designed for tight spaces in GB/T 3836-certified hazardous environments. This 8mm probe combines M10x1 threading with NEPSI compliance, delivering ±0.45% accuracy across -52°C to +260°C for precision monitoring in chemical and pharmaceutical applications.
Technical Specifications
- 330103-01-04-10-02-CN Breakdown:
- 01: 10mm unthreaded length
- 04: 40mm case length
- 02: ClickLoc connector (IP67)
- CN: GB/NEPSI certifications
- Electrical Performance:
- Temperature drift: 0.02% FSO/°C
- RF interference rejection: 40dB @ 900MHz
- Step response time: 15μs
Installation Guidelines
Mechanical
- Mounting torque: 8-12 Nm
- Minimum bend radius: 6× cable diameter
Electrical
- Shield termination: 360° circumferential
- Ground loop resistance: <1Ω
Industry Applications
Pharmaceutical Mixing Tanks
Monitors agitator shaft vibrations in GMP-compliant facilities with sanitary design, resistant to CIP/SIP sterilization cycles at 140°C.
Urban Metro Traction Motors
Detects rotor imbalance in TB/T 3139-2021 compliant systems, surviving 20g shock loads during emergency braking.
Local support: Email sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
