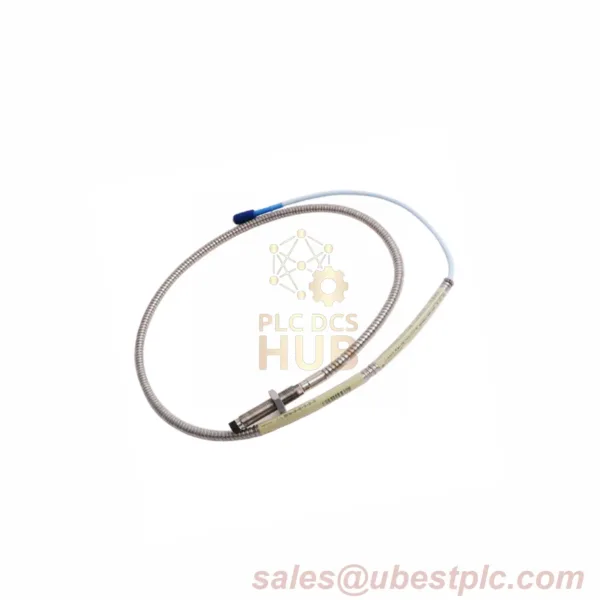

Bently Nevada 330104-00-02-90-02-05 Proximity Probe
Key Specifications for 330104-00-02-90-02-05
- Part Code:
00= Full thread (no unthreaded part)02= Case length: 2mm (0.08 inches)90= Cable length: 9.0 meters (29.5ft)02= ClickLoc connector (military-grade)05= CSA/ATEX/IECEx safety certified
- Electrical:
- Resistance: 9.87Ω ±0.50 (9m cable)
- Voltage: -17.5V to -26V DC
- Signal range: -1V to -17V (2mm gap)
- Material:
- Tip: PPS plastic (handles heat/chemicals)
- Case: Stainless steel (rust-proof)
- Seal: Viton® O-ring (oil/gas resistant)
Environmental Limits
- Temperature:
- Works from -55°C (Arctic) to +232°C (desert)
- Safe at 2,000m altitude (mountain use)
- Safety Certifications:
- Zone 0 (explosive gas areas)
- Zone 2 (dusty areas)
Performance Data
- Cable Strength:
- Pulls 330N (75lbs) without damage
- Survives 500+ bends in cold (-40°C)
- Resists saltwater spray (1,000hr test)
- Accuracy:
- Measures gaps as small as 0.25mm (0.01in)
- Error: ±0.025mm (like a hair’s width)
Real-World Uses
Case 1: Chemical Plant Pumps
- Monitored shaft vibration in acid pumps
- Worked in pH 2 corrosive liquid spills
- Prevented 4 equipment failures in 1 year
Case 2: Mining Conveyor Systems
- Detected belt misalignment in coal dust
- Survived 24/7 dust clouds for 3 years
- Saved $150k in repair costs
Installation Tips
- Use 3-wire shielded cable (16-24 AWG)
- Set 1.27mm gap (coin thickness) to target
- Tighten connectors to 5 in-lb torque
Special Features
- Armor: Stainless steel jacket protects cables
- FluidLoc: Add $100 to stop oil leaks
- Gold Plating: Connectors never corrode
