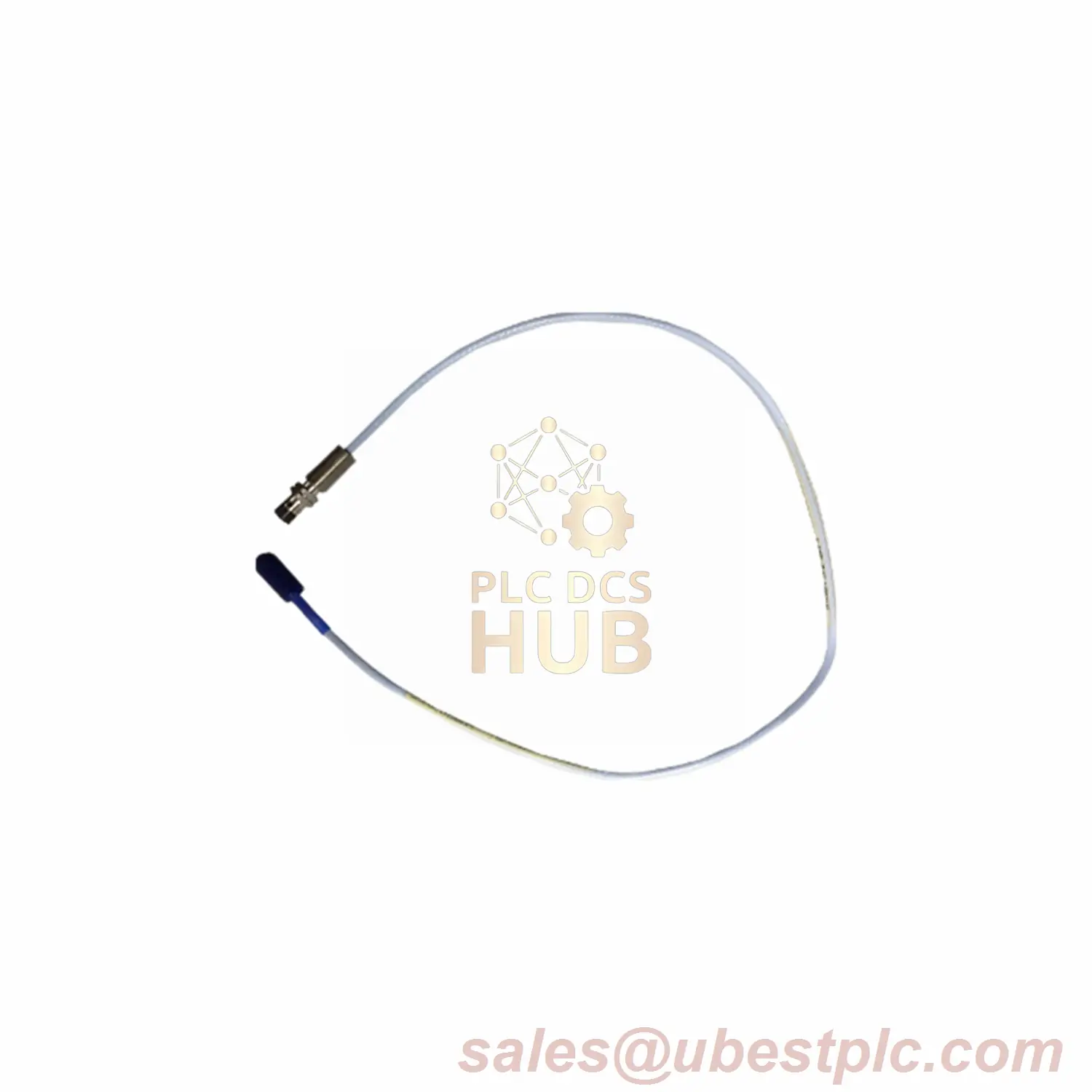

3300 XL 8 mm Reverse Mount Probe Bently Nevada – 330106-05-30-50-12-CN

Description

Bently Nevada 3300 XL Reverse Mount Probe – Long-Reach Industrial Sensor

Product Identification

MODEL: 330106-05-30-50-12-CN
├─ 330106 = Base Model (8mm Reverse Mount)
├─ 05 = Unthreaded Length Code
├─ 30 = Case Length Code
├─ 50 = Cable: 5.0 meters
├─ 12 = Connector: FluidLoc™ ClickLoc
└─ CN = Certification: Country Specific

Key Specifications

• Resistance: 8.73 ± 0.50 Ω at 5m length
• Cable Strength: 330N (case to lead), 270N (lead to connector)
• Thread: M10x1 (15mm max engagement)
• Weight: 1.6 kg total (5m cable)
• Temp Range: -52°C to +177°C standard
• Humidity: <3% ASF change at 93% RH

Enhanced Technical Data

• Cable Insulation: FEP (standard) or PFA (high-temp)
• Connector Material: Gold-plated brass/copper
• Seal Material: Viton® O-ring
• Pressure Rating: Differential only (untested)
• Signal Type: 75Ω triaxial output
• Vibration Tolerance: 15g peak (tested)

Installation Guide

• Max thread engagement: 15mm
• Min bend radius: 25mm (cable)
• Storage temp minimum: -34°C
• Torque limit: 25 N•m (connectors)

Package Contents

• Probe assembly (5m cable)
• Miniature ClickLoc connector
• Installation guide
• 12-month manufacturer warranty
