Description

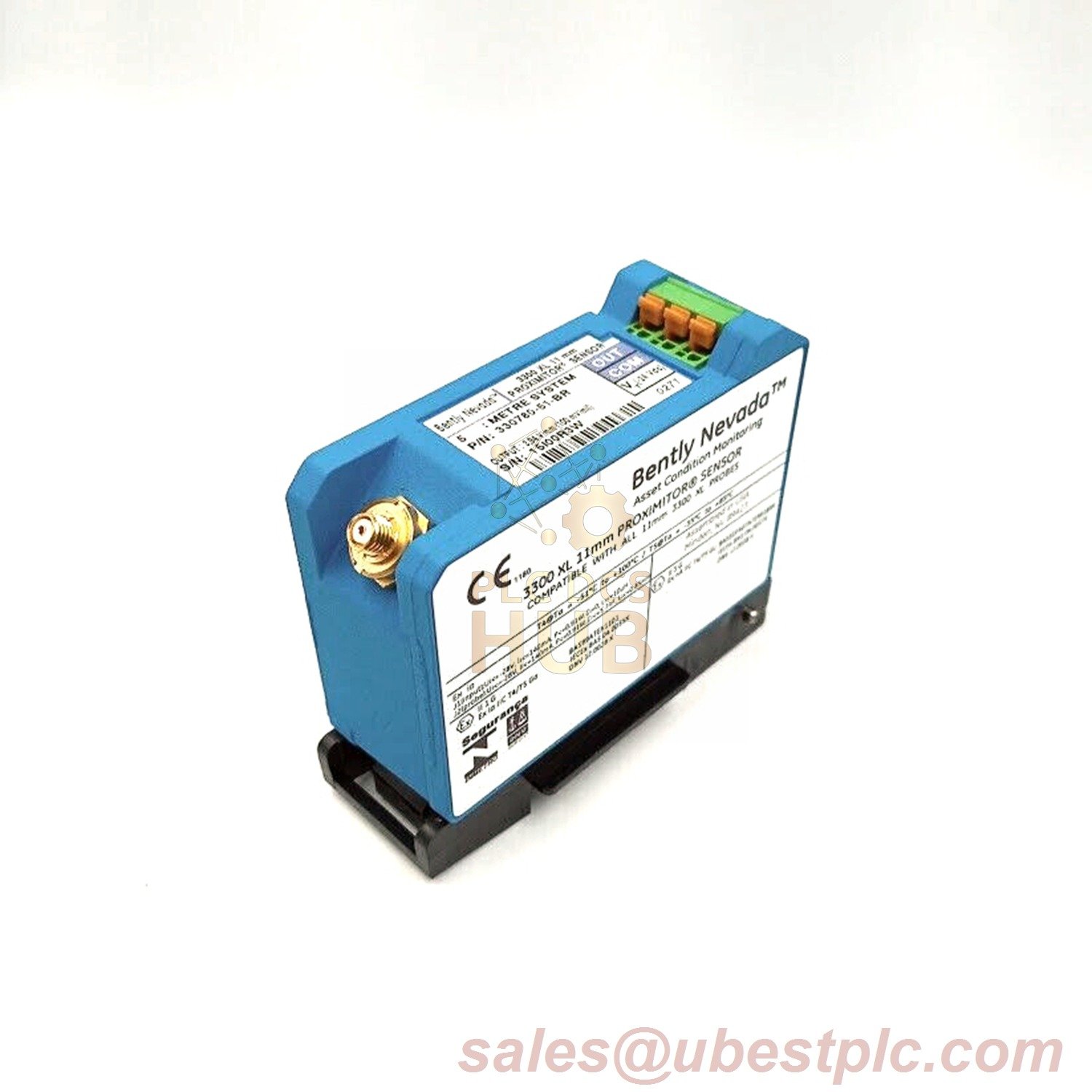

Bently Nevada 3300 XL NSv Proximitor Sensor: Precision Vibration Monitoring
Product Highlights
Thin-profile sensor for high-density DIN-rail or panel mounting. Features enhanced RFI/EMI immunity meeting CE standards without special mounting. SpringLoc terminals enable tool-free, robust wiring. Ideal for tight spaces in industrial vibration monitoring systems.
Technical Specifications
- Brand: Bently Nevada
- Full Model: 330980-72-CN
- 330980: NSv Proximitor Sensor
- 72: 7.0m system length (no hardware)
- CN: Country-specific approvals
- Input: 1x 3300 RAM/NSv Probe + Extension Cable
- Power: -17.5Vdc to -26Vdc (12mA max)
- Output: 50Ω resistance voltage signal
- Accuracy: Valid with Bently Nevada AISI 4140 steel target
- Temp Range: -52°C to +100°C (-62°F to +212°F)
- Humidity: 100% condensing (IEC 68-2-3 tested)
- Weight: 255g (9 oz)
- Material: A380 aluminum housing
Installation Guide
Mounts in DIN-rail or panel configurations. Requires 1.0mm (40 mil) probe gap. No special tools needed – uses SpringLoc terminals. Ensure target is ≥31mm AISI 4140 steel.
Compatibility
Works with all 3300 RAM and 3300 NSv proximity probes. Requires Bently Nevada-supplied calibration targets for specified accuracy.
Package & Warranty
- 1x NSv Proximitor Sensor
- 12-month manufacturer warranty
Shipping Options
Fast global delivery via FedEx, UPS, or DHL. Contact for expedited options.
FAQ
Q: Voltage sensitivity?
A: <2mV change per volt input variation
Q: Included mounting hardware?
A: Suffix “72” = no hardware included
Q: Minimum target size?
A: 31mm+ AISI 4140 steel for rated accuracy
