Description

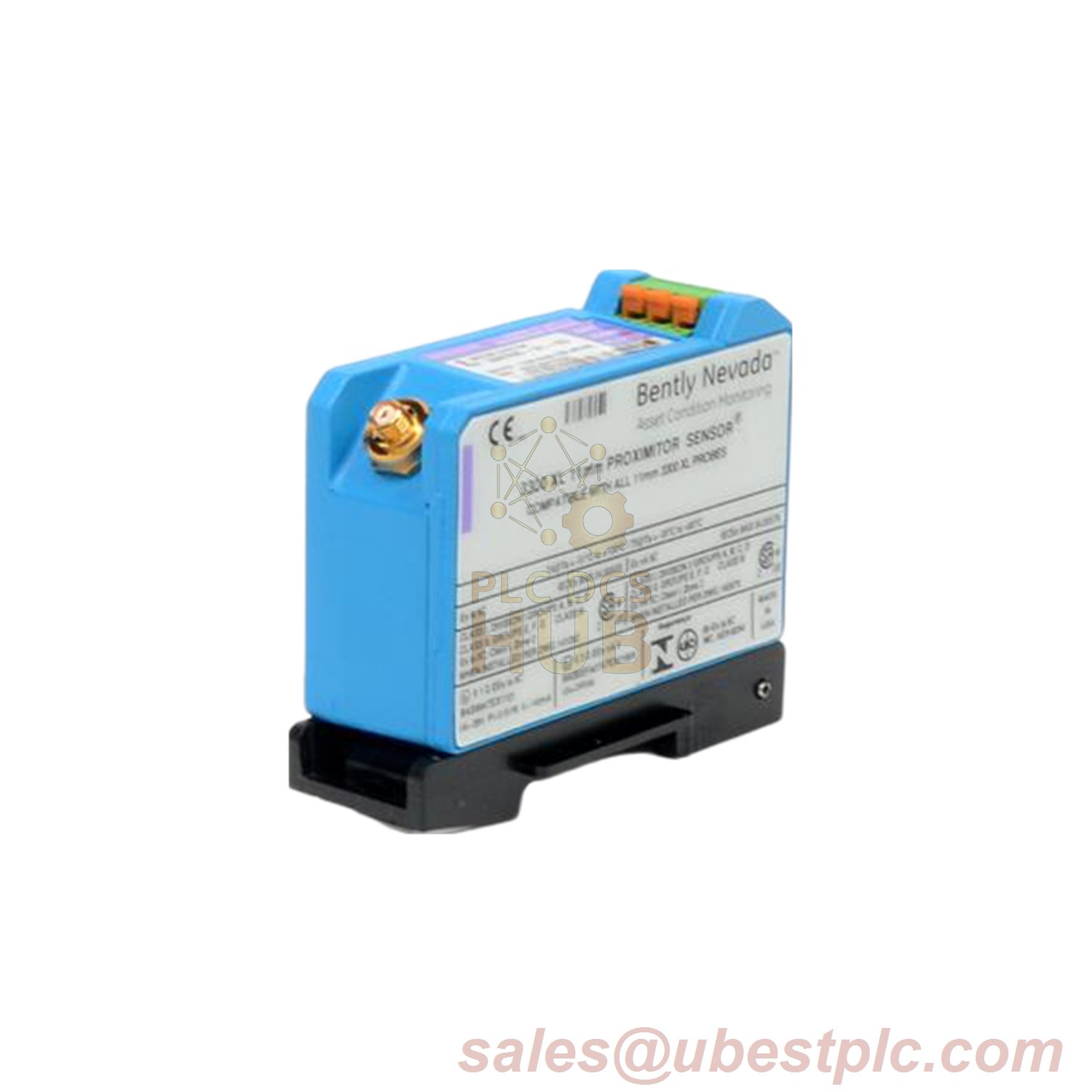

Bently Nevada 3300 XL NSv Proximitor Sensor: Slim Design, Superior Performance
Experience high-density monitoring with the 330980-71-00 NSv Proximitor Sensor. Its ultra-thin profile fits DIN-rail or panel mounts, while advanced RFI/EMI immunity ensures stable readings near radio sources. SpringLoc terminals enable tool-free wiring for rapid industrial deployment.
TECHNICAL DATA
| Brand | Bently Nevada | Output Signal | -2 to -18 Vdc (50Ω) |
| Model | 330980 – NSv Proximitor | Accuracy | ±1% full scale (0-45°C) |
| Full Suffix | 71-00 | Power | -17.5 to -26 Vdc @ 12mA max |
| Length | 7.0m (23ft) system | Operating Temp | -52°C to +100°C (-62°F to +212°F) |
| Mounting | DIN Rail (Suffix: 71) | Humidity | 100% condensing (IEC 68-2-3) |
| Approvals | CE Mark (Suffix: 00) | Weight | 255g (9 oz) |
INSTALLATION GUIDE
- Mount sensor via DIN rail clip or panel screws
- Connect probe to input terminal (3300 RAM/NSv compatible)
- Apply -24Vdc power (±10% tolerance)
- Position target: 1.0mm gap from probe tip
- Calibrate with AISI 4140 steel target for optimal accuracy
COMPATIBILITY
- Probes: 3300 RAM / 3300 NSv series
- Targets: AISI 4140 steel (31mm+ diameter)
- Barriers: Requires -23 to -26Vdc when used
- Cables: Bently Nevada extension cables
PACKAGING INCLUDES
- 330980-71-00 Proximitor Sensor
- Installation manual
SHIPPING
Global delivery via FedEx, UPS, DHL. Tracking provided within 24hrs. Express options available.
FAQ
Q: Does it work with non-Bently Nevada probes?
A: Optimized for 3300 series probes. Third-party probes may affect accuracy.
Q: Minimum voltage requirement?
A: -17.5Vdc without barriers, -23Vdc with barriers.
Q: Humidity tolerance?
A: 100% condensing (non-submersible) per IEC damp heat standard.
Q: Target material requirements?
A: For guaranteed accuracy, use AISI 4140 steel targets ≥31mm diameter.
