3300 XL Proximitor Sensor Bently Nevada | 330180-50-CN

Description

Description

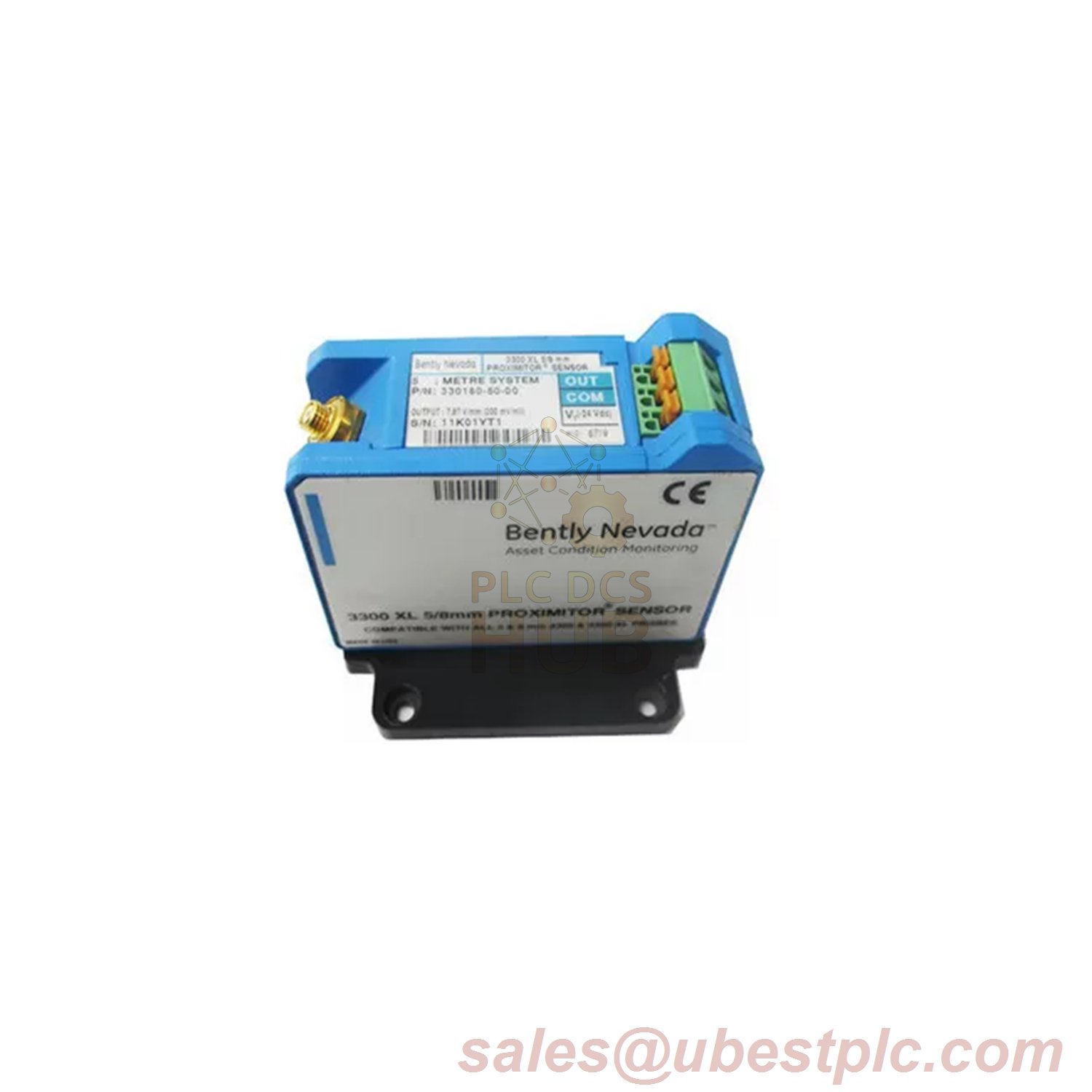

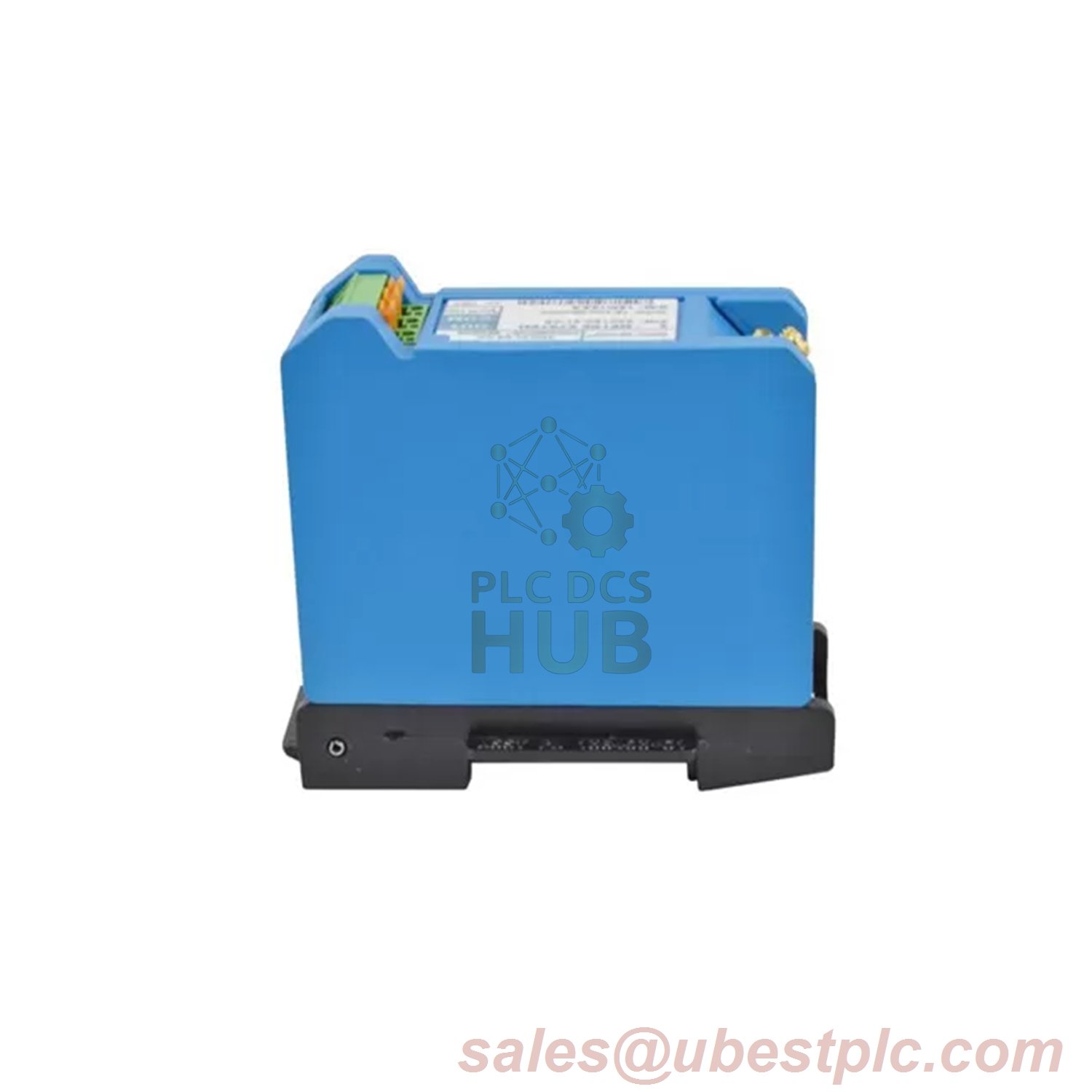

The Bently Nevada 330180-50-CN 3300 XL Proximitor Sensor is a regionally certified solution for precision industrial monitoring. Featuring a 5.0-meter (16.4 ft) panel-mount design and country-specific (CN) approvals, this sensor delivers RFI immunity and compatibility with 3300-series probes. Its SpringLoc terminals enable tool-free installations, ideal for compliance-driven markets.

Technical Data

• Model: 330180-50-CN
• Suffix Codes:
  • 50: 5.0 m system length
  • CN: Country-specific compliance
• Electrical:
  • Power: -17.5 Vdc to -26 Vdc (12 mA max)
  • Output Resistance: 50 Ω
  • Sensitivity: <2 mV/V
• Mechanical:
  • Mounting: Panel (4-hole legacy footprint)
  • Weight: 246 g (8.67 oz)
  • Thread: 3/8-24 UNF (14.3 mm max)
• Environmental:
  • Operating Temp: -52°C to +100°C (-62°F to +212°F)
  • Storage Temp: -52°C to +105°C (-62°F to +221°F)
• Materials:
  • Housing: A308 aluminum
  • Connectors: Gold-plated brass/beryllium copper
