Description

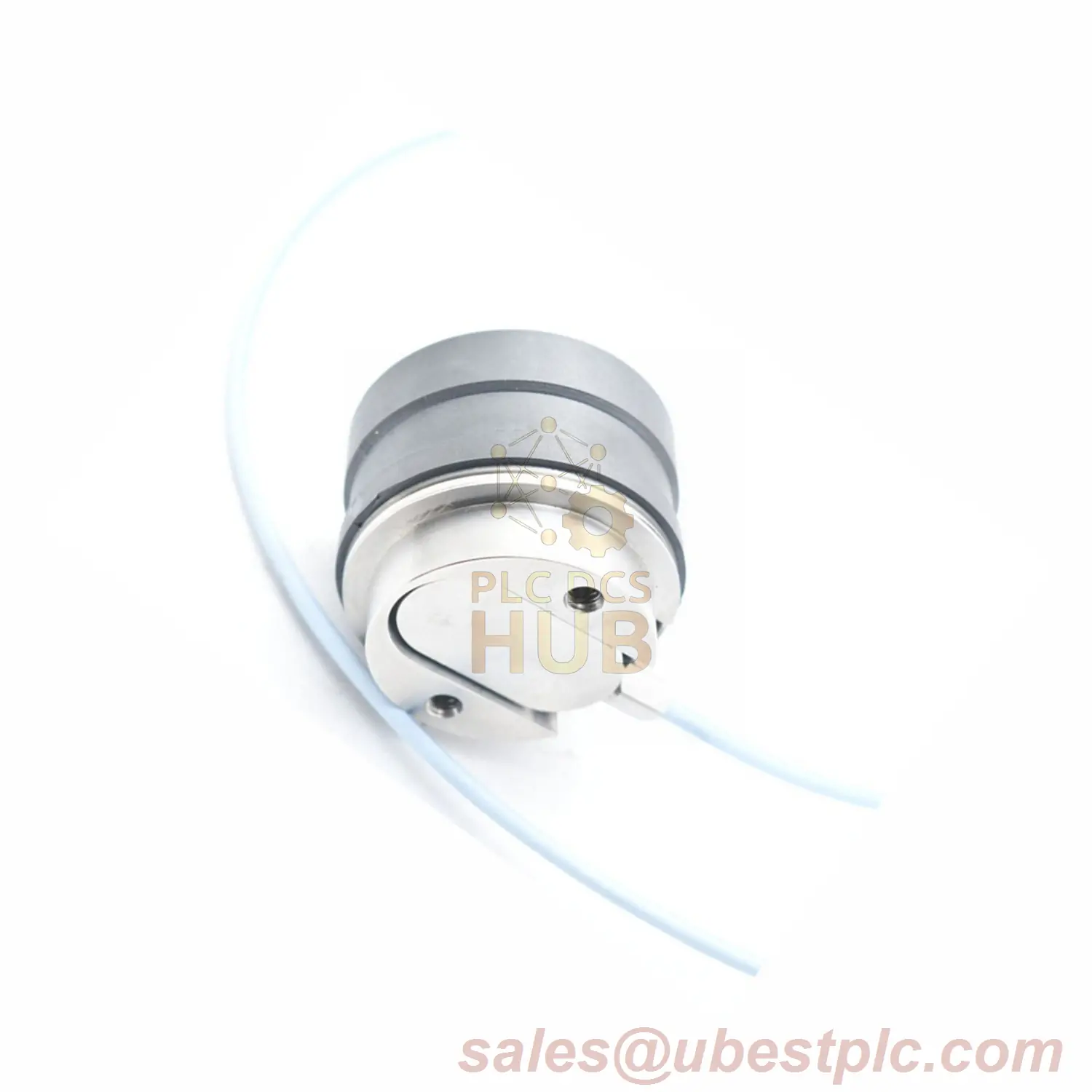

Bently Nevada 3300 XL 50mm Proximity Probe (330876-02-50-00-05)
Product Identification
330876-02-50-00-05 ├── 330876 : 50mm Vibration Probe ├── 02 : M14x1.5 Metric Thread ├── 50 : 5.0m Cable ├── 00 : Standard FluidLoc Cable └── 05 : Multiple Safety Approvals
Technical Specifications
- Frequency Response: 0.5Hz to 12kHz (±3dB)
- Output Signal: -1V to -18V DC
- Linearity: ±1% over 2mm range
- Resolution: 0.1μm
- Cable Capacitance: 69.9pF/m
Model Comparison
| Feature | This Model (02-50-00-05) | 330876-01-10-00-05 | 330876-01-10-01-00 |
|---|---|---|---|
| Thread Type | M14x1.5 Metric | ½-20 UNF | ½-20 UNF |
| Cable Length | 5.0m | 1.0m | 1.0m |
| Cable Type | Standard | Standard | Armored |
| Approvals | Multiple | Multiple | None |
| Best For | EU industrial equipment | Short-range US installs | Rugged US applications |
Installation Notes
- For use with 5m Proximitor systems only
- Maximum thread engagement: 21mm
- Recommended torque: 22-25 Nm
- Maintain minimum 50mm cable bend radius
