3300 XL Proximity Probe Bently Nevada 330704-000-060-90-02-00

Description

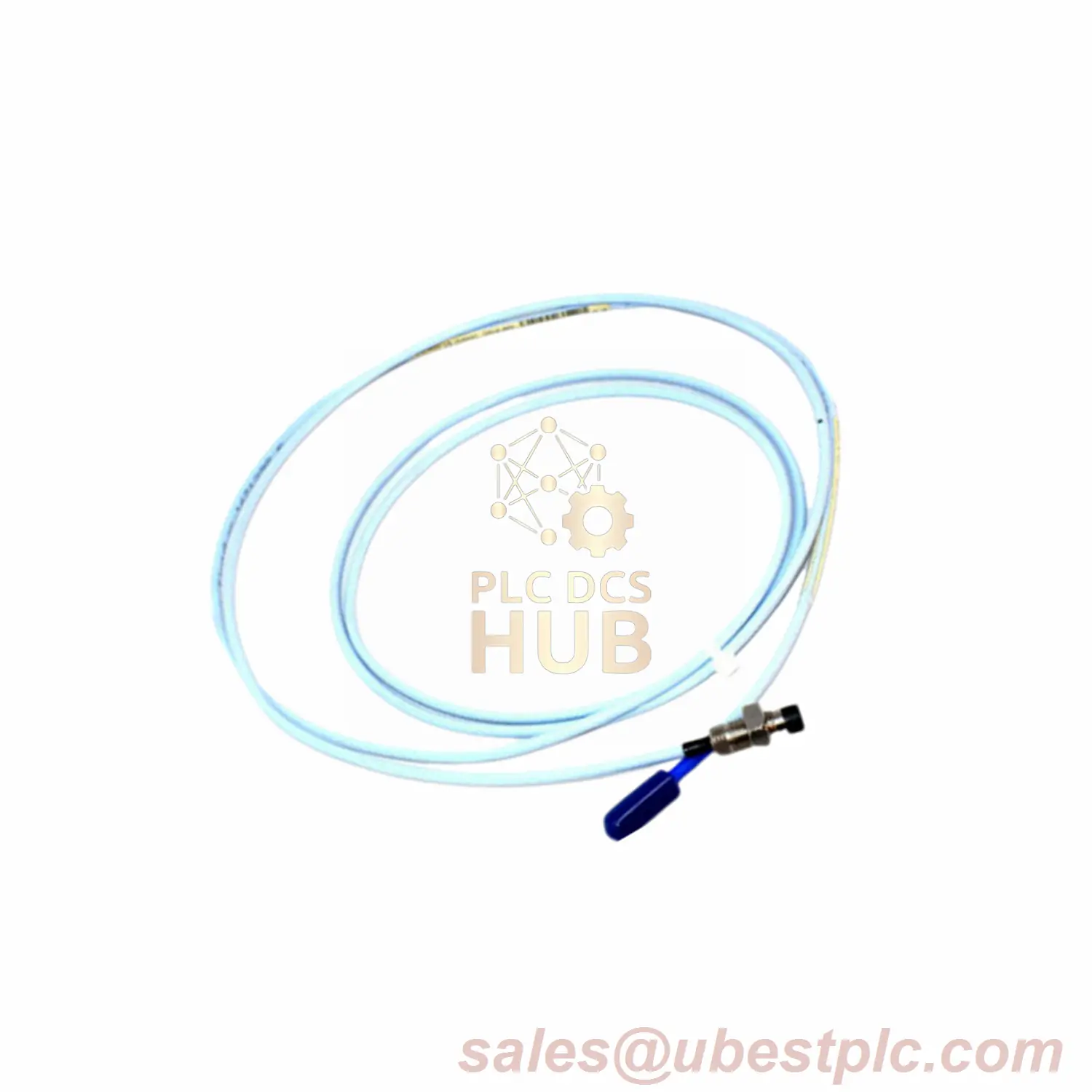

Bently Nevada 330704-000-060-90-02-00 | 3300 XL 11mm Proximity Probe (Metric) – 9m Long-Cable Industrial Monitor

✨ Key Highlights at a Glance

• Brand new: Factory-sealed, never used
• Warranty: 12 full months
• Cable length: 9m (29.5ft – extra-long for distant setups)
• Approval: 00 (no extra certifications needed – universal fit)

???? Decode the Part Number

• Base model: 330704 (11mm probe, M14×1.5 thread, armored)
  • 000: Unthreaded length – 0mm
  • 060: Case length – 60.0mm
  • 90: Total length – 9.0m
  • 02: Connector type – Mini coaxial ClickLoc (plug-and-play)
  • 00: Certification – None required

???? Detailed Tech Specs for 330704-000-060-90-02-00

• Linearity: ±0.2% FS (high precision for critical measurements)
• Response time: ≤1ms (real-time feedback for high-speed machinery)
• Cable specs: 75Ω triaxial + FEP insulation (30% better EMI resistance; -80°C to 200°C temp resistance)
• Vibration resistance: 50g (10-2000Hz) (stable signals in shaky environments)
• DC resistance: 8.5Ω±1.1 (stable value for 9m cable – no signal loss)

???? Fixes Common Factory Problems

• Weak long-distance signals: 75Ω triaxial cable + 8.5Ω resistance → 50% less signal loss vs. standard extensions
• Complex wiring: Factory 9m cable → No splicing, reduces connector failures (vs. 2-3 splices in traditional setups)
• Poor environment resistance: FEP insulation + 304 SS case → Resists oil/chemicals/UV, 2-year longer outdoor life
• Inaccurate high-speed monitoring: 1ms response + ±0.2% linearity → Captures 0-10kHz vibrations (e.g., turbine blade gaps)

???? Install Like a Pro

• Torque: Recommended 21.1N·m (187in·lb) → Secure but no thread damage (avoid max 63.3N·m)
• Cable care: Use clips every 1m → Prevents pulling stress on connectors
• Temp note: Avoid < -34°C long-term → Extends seal life (add heat sleeves if needed)
