Quick Product Insight

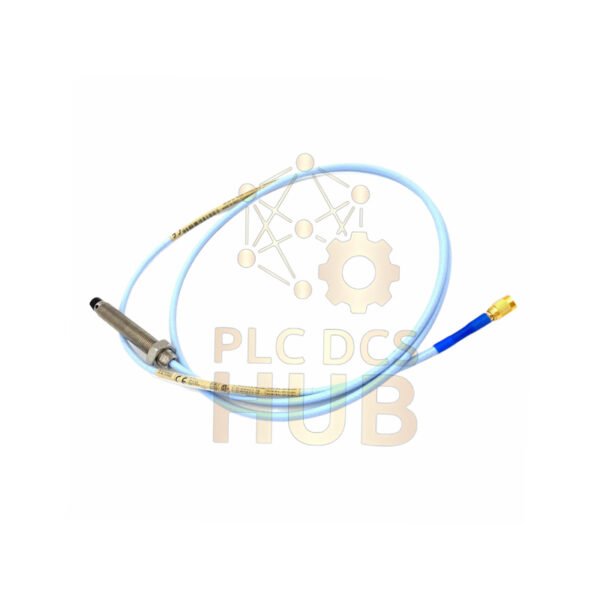

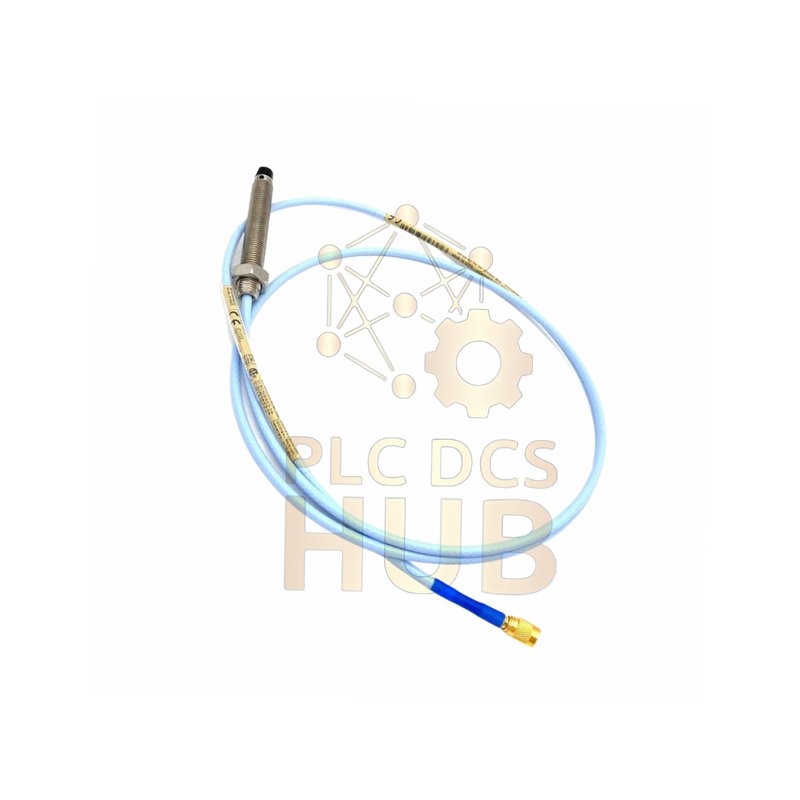

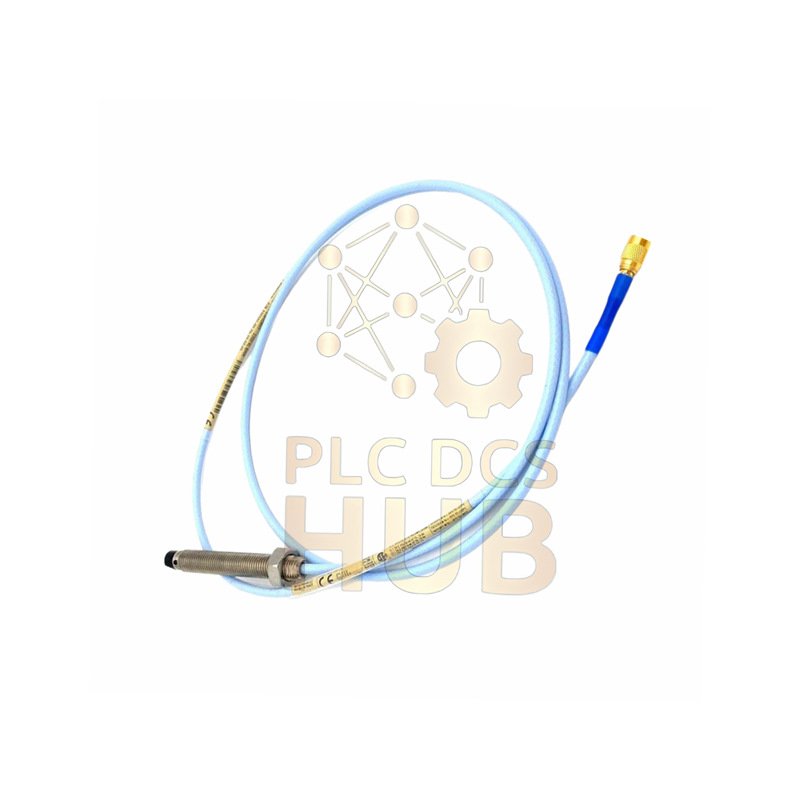

The Bently Nevada 330101-00-15-20-12-05 is a rugged 3300 XL 8mm Proximity Probe built for stable vibration measurement in oil-rich and harsh machine zones.
Part Number Logic (Tree View)
- 330101
- Length Setup
- 00 → No unthreaded section
- 15 → 1.5 in probe case
- 20 → 2.0 m total cable
- Connection
- 12 → ClickLoc connector
- FluidLoc sealed cable
- Certification
- 05 → CSA / ATEX / IECEx
- Length Setup
Core Advantages
- FluidLoc cable blocks oil migration
- Strong 8 mm stainless body
- High pull strength cable lock
- Stable signal in wet areas
Electrical Data
- Probe resistance: 7.88 Ω ±0.50
- Output span: -1 to -17 Vdc
- Linear range: up to 2.3 mm
- Recommended gap: -9 Vdc
Signal Accuracy
- Scale factor: 7.87 V/mm
- Low drift over temperature
- Stable readings in long runs
- Low deviation from linear fit
Mechanical & Materials
- PPS molded probe tip
- AISI 303/304 stainless case
- Weight: 323 g per meter
- Designed for physical abuse
Environmental Capability
- Standard temp: -52°C to +177°C
- Extended tip temp: +218°C
- Cable rated to +260°C
- Humidity change below 3%
Pressure & Sealing
- Viton® O-ring sealing
- Handles pressure difference
- No oil travel inside cable
- Ideal for turbines and pumps
Warranty & Delivery
- 12-month warranty
- Factory-tested before shipping
- FedEx / UPS / DHL available
- Global fast dispatch
Professional FAQ
- Why choose FluidLoc cable?
It stops oil from leaking through the cable. - Is 2.0 m length suitable for panels?
Yes. It fits most local mounting layouts. - Does ClickLoc save install time?
Yes. It locks fast and avoids loose contact. - When is 8 mm probe preferred?
For high vibration or rough handling areas. - What to check before ordering?
Confirm length and sealing needs.
