Description
Hazardous Area Sensor Solution

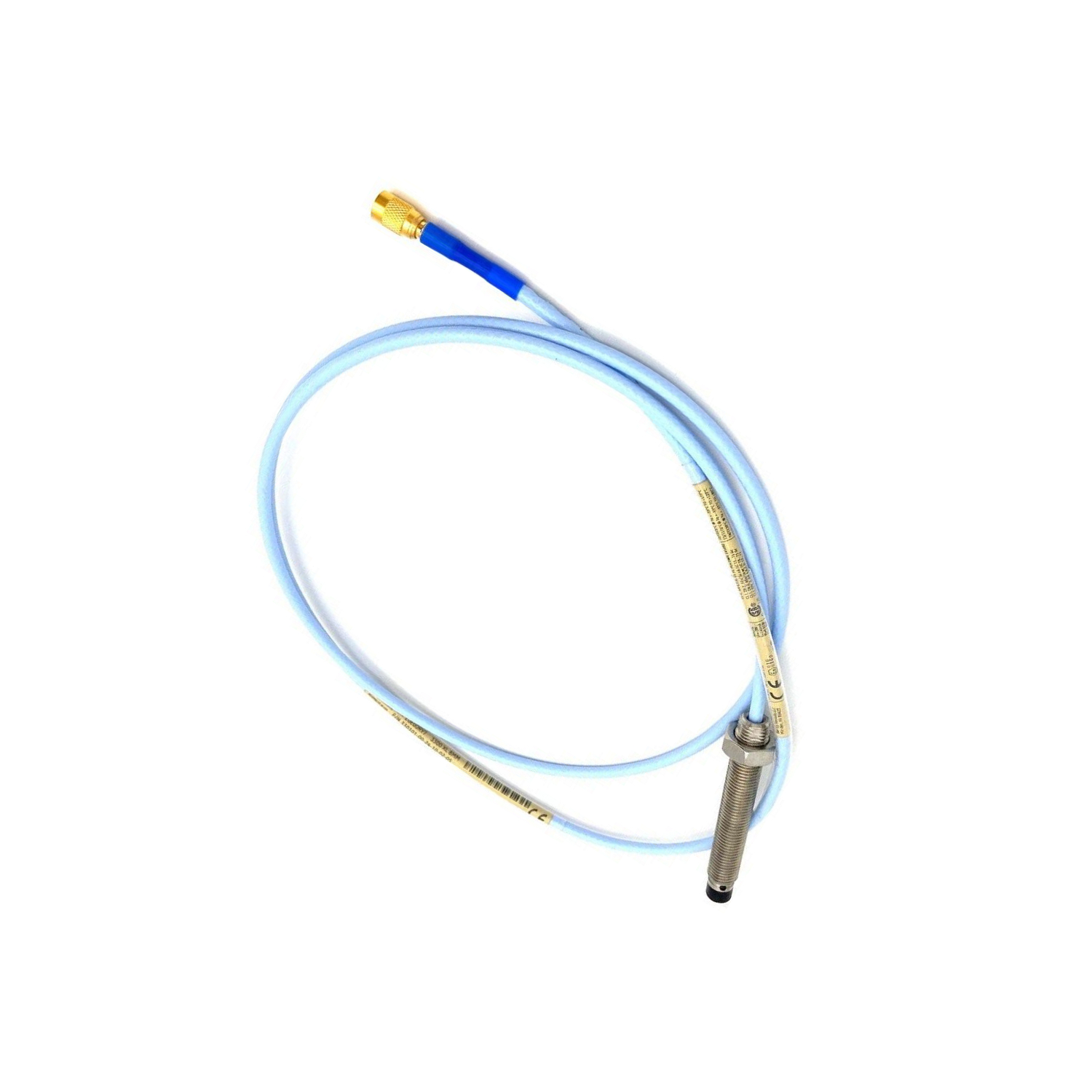

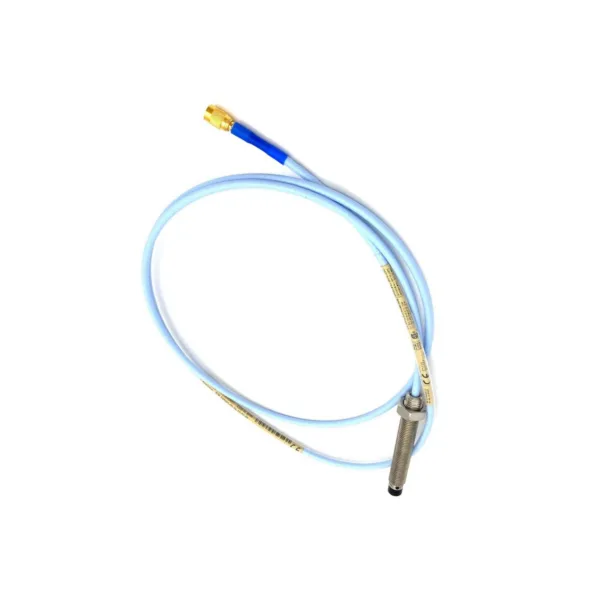

Bently Nevada 3300 XL 8mm Probe
Model: 330101-00-12-05-02-05
1.2in Case • 0.5m Cable • Multi-Certified
Complete Configuration Breakdown
- 00 = 0.0in Unthreaded
- 12 = 1.2in (30.5mm) Case
- 05 = 0.5m (1.6ft) Cable
- 02 = ClickLoc® Connector
- 05 = CSA/ATEX/IECEx Certified
Technical Specifications
▷ Electrical
Resistance: 7.45Ω ±0.5 (0.5m)
Signal Stability: ±0.25% @ 150°C
75Ω Triaxial Output
▷ Mechanical
Weight: 194g Total
Cable Strength: 330N (75lbf)
IP66 Enclosure Rating
Certifications (Code 05)
- ATEX Zone 1: II 2G Ex ia IIC T4
- IECEx Certificate: IECEx UL 23.0045X
- CSA Class I, Div 1, Groups A-D
Industrial Applications
Oil Rig Blowout PreventersMonitors hydraulic systems in Zone 1 areas
Paint Spray BoothsOperates in explosive solvent vapors
Special Features
- Intrinsically Safe Design (Ex ia)
- Viton® Seals for Hydrocarbon Resistance
- 2x EMI Shielding Effectiveness
Package Contents
- 1x Compact Probe (1.2in)
- 0.5m Hazardous Area Cable
