Description
Industrial Monitoring Device

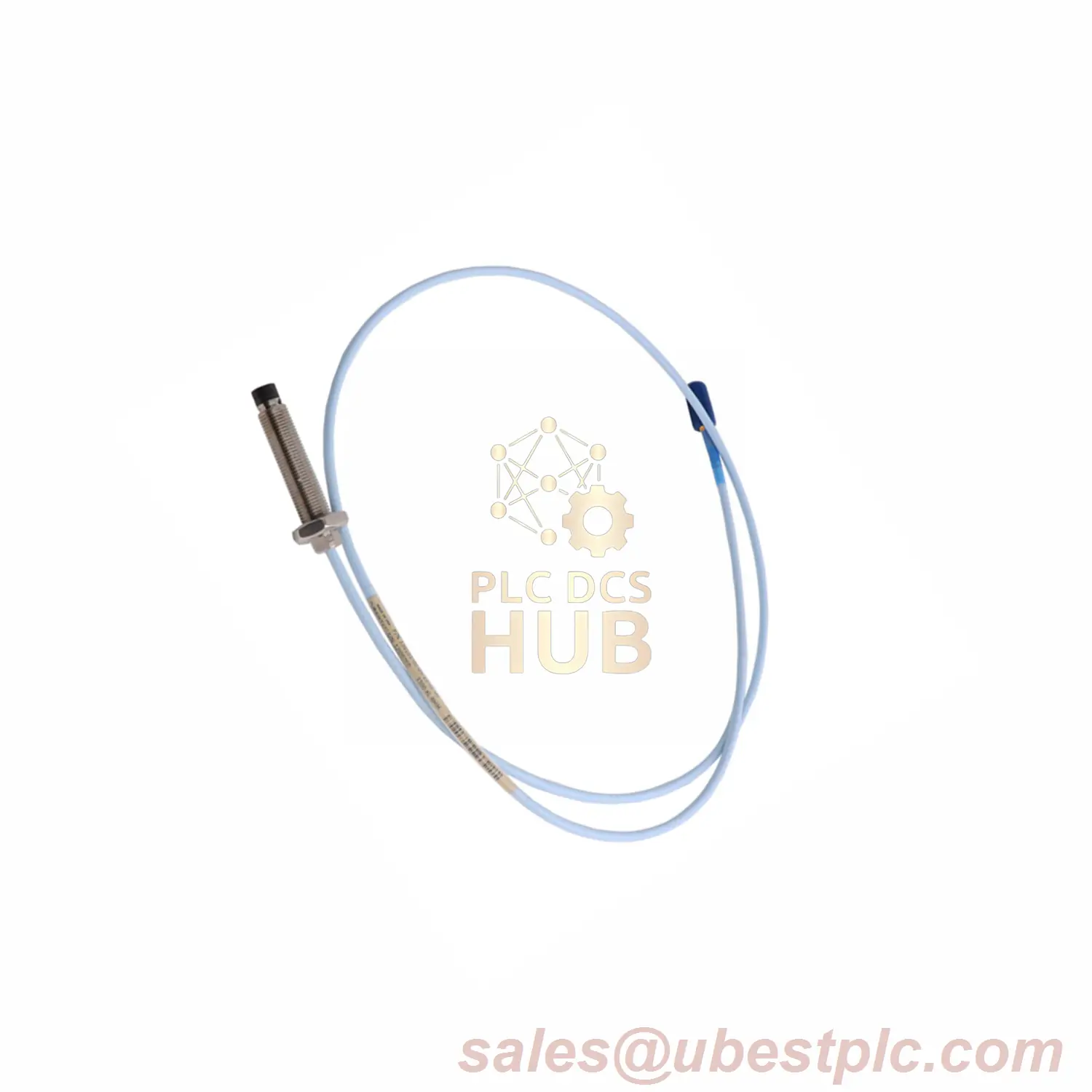

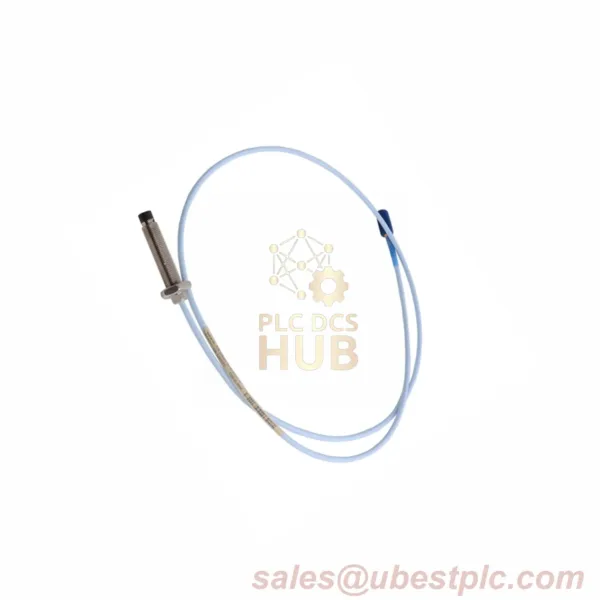

Bently Nevada 3300 XL 8mm Probe
Model: 330101-12-30-10-02-CN
3in Case • 1m Cable • Heavy-Duty Design
Complete Product Code for 330101-12-30-10-02-CN
- 12 = 1.2in Unthreaded
- 30 = 3in (76.2mm) Case
- 10 = 1.0m Cable
- 02 = ClickLoc Connector
- CN = China Approvals
Key Specifications
▷ Electrical
• 7.59Ω ±0.5 Resistance
• 200mV/mil Sensitivity
• 75Ω Triaxial Signal
▷ Mechanical
• 323g/m Weight
• 3/8-24 UNF Thread
• 75lb Cable Strength
Certifications (CN Code)
- GB/T 3836 Explosion Proof
- CCC Mark 2024-CN-8876
- RoHS China Compliance
Industrial Uses
Ship EnginesMonitors crankshafts in saltwater environments
Chemical TanksResists acid fumes in mixing vessels
Temperature Limits
| Part | Min Temp | Max Temp |
|---|---|---|
| Probe Tip | -62°F | +425°F |
| Cable | -60°F | +500°F |
Package Includes
- 1 Probe (3in case)
- 1-Year Marine Warranty
Contact Support
Email sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
