Description

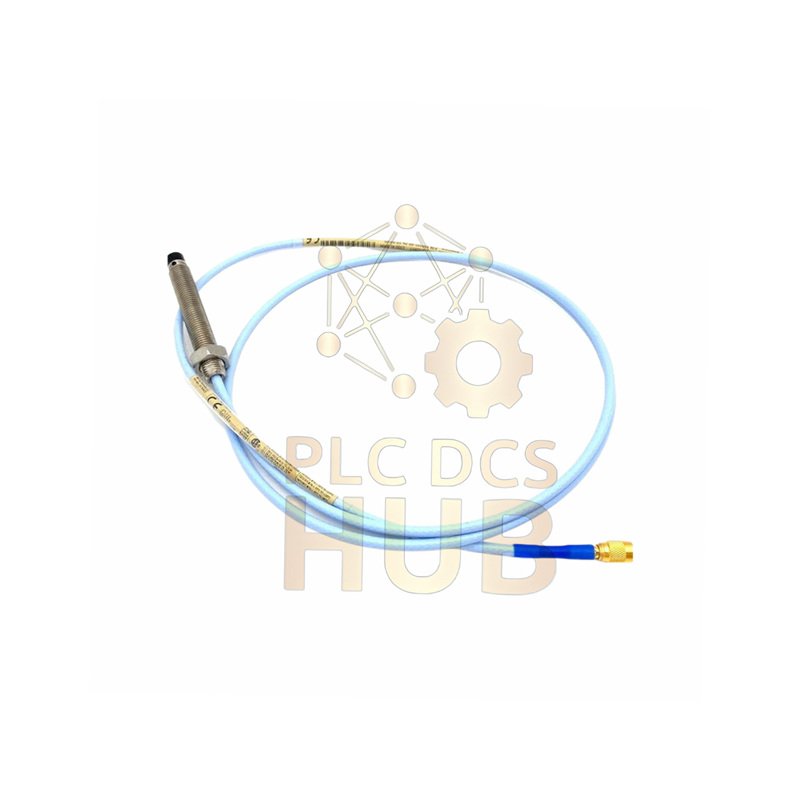

Product Overview
- Brand: Bently Nevada
- Model: 330101-39-67-10-12-05
- Series: 3300 XL
- Type: 8 mm Proximity Probe
- Designed for precise shaft vibration and position monitoring
- Robust structure for harsh industrial environments
- Manufactured in the USA for critical machinery protection
Key Design Advantages
- Patented TipLoc molding improves mechanical strength
- CableLoc design resists 330 N pull force
- 8 mm probe body enhances durability
- FluidLoc cable blocks oil migration
- Stable signal under vibration and thermal stress
Technical Specifications
- Measurement Range: 0.25 to 2.3 mm linear range
- Sensitivity: 7.87 V/mm nominal
- Linearity Error: ±0.025 mm standard systems
- Resolution: Detects micron-level displacement
- Frequency Response: Optimized for vibration analysis
- Probe Resistance: 7.59 Ω ±0.50 at 1 meter
- Cable Capacitance: 69.9 pF per meter
Mechanical Configuration
- Thread size: 3/8-24 UNF
- Unthreaded length: 3.9 inches
- Case length: 6.7 inches
- Total cable length: 1.0 meter
- Connector: Miniature ClickLoc coaxial
Environmental & Reliability Performance
- Operating temperature: -52°C to +177°C
- Extended probe tip temperature: up to +218°C
- Cable temperature limit: +260°C
- Humidity stability proven at 93 percent RH
- Stainless steel case resists corrosion
Installation Guidance
- Recommended gap setting: -9 Vdc
- Use shielded triad field wiring
- Maximum field wiring length: 305 meters
- Avoid exposure below -34°C before installation
Compatibility & System Integration
- Compatible with 3300 XL Proximitor sensors
- Works with Bently Nevada monitoring systems
- Supports standard 1, 5, and 9 meter systems
Certifications & Compliance
- CSA approved
- ATEX certified
- IECEx compliant
Typical Applications
- Turbines and compressors
- Large motors and generators
- Pumps and rotating machinery
- Critical oil and gas assets
Diagnostic Capability
- Detects shaft vibration trends early
- Supports predictive maintenance strategies
- Improves machine availability
Package & Warranty
- Package includes one proximity probe
- Factory sealed original packaging
- 12 months warranty included
- Shipping via FedEx, UPS, or DHL
Frequently Asked Questions
- Is this probe suitable for high vibration areas?
- Yes. The 8 mm body improves mechanical strength.
- Can the probe resist oil contamination?
- Yes. The FluidLoc cable blocks fluid migration.
- Does longer wiring affect signal quality?
- Long cables reduce high frequency response slightly.
- Is this model interchangeable with older probes?
- Yes. It improves accuracy and durability.
