Description

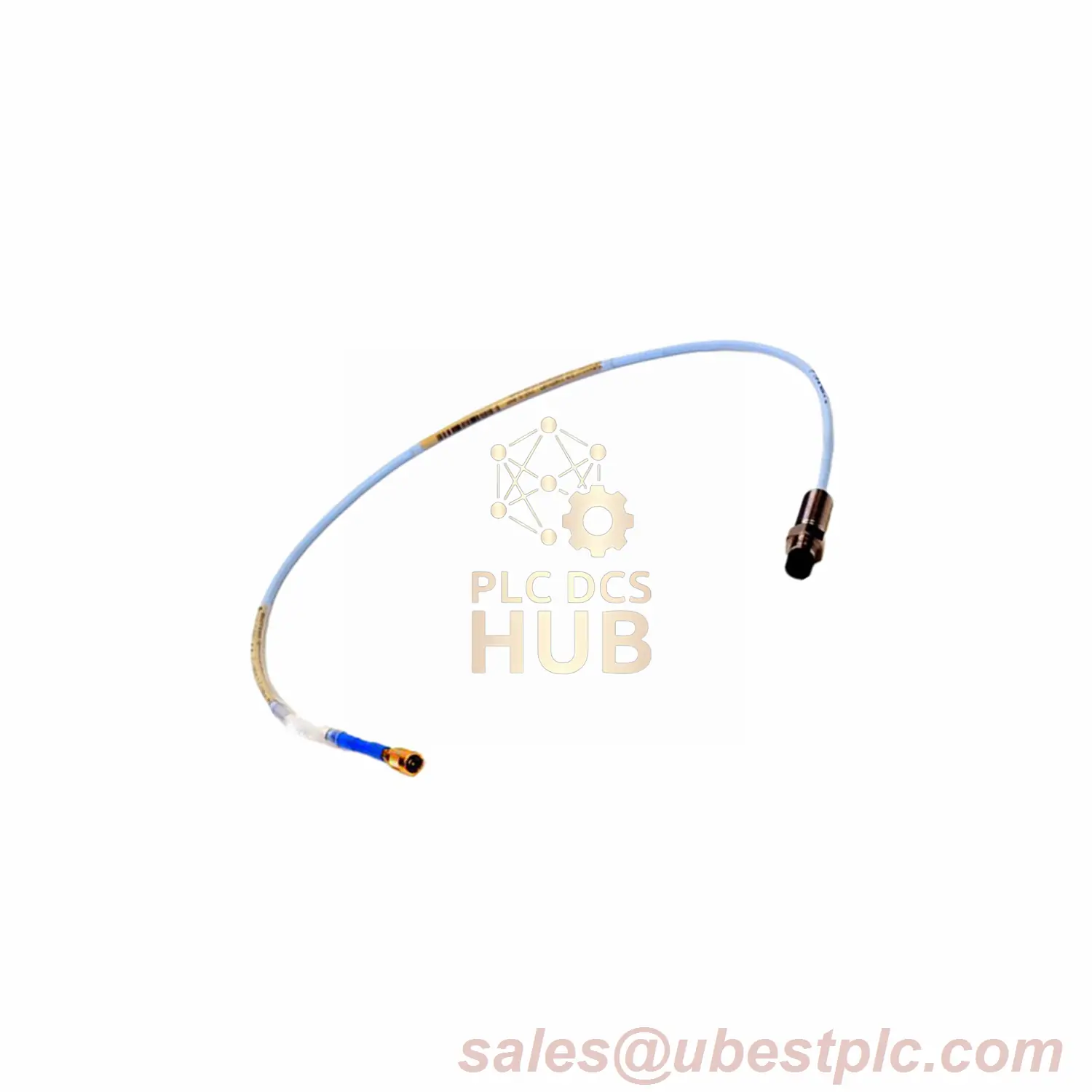

Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330103-00-03-10-12-00)
330103-00-03-10-12-00: A high-performance 8 mm proximity probe designed for industrial vibration monitoring. Features a PPS probe tip and stainless steel case, suitable for harsh environments. Includes FluidLoc cable with a Miniature ClickLoc connector for reliable signal transmission.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- Suffix: 00-03-10-12-00 (Unthreaded: 00, Case Length: 30mm, 1.0m Cable)
- Measurement Range: 0.25–2.3 mm (10–90 mils)
- Output Signal: -1 to -17 Vdc (Linear Range)
- Recommended Gap: -9 Vdc (1.27 mm / 50 mils)
- Accuracy: ±0.50Ω DC Resistance
- Operating Temp: -52°C to +177°C (Standard), up to +260°C (Cable)
- Pressure Seal: Viton® O-ring (Not pressure-tested by default)
Installation Guide
- Max thread engagement: 15 mm (M10x1 thread)
- Use shielded triad cable (16–24 AWG) up to 305 meters
- Avoid temperatures below -34°C to prevent seal damage
Compatibility
Works with 3300 XL Proximitor Sensors and intrinsically safe systems via zener barriers or galvanic isolators.
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T1-T5, Class I/II/III
- Hazardous Areas: Zone 0/2, Division 2 (Groups A-G)
Package & Warranty
- 1x 3300 XL Probe (1.0m cable)
- 1-year limited warranty
Application Example
Used in gas turbine vibration monitoring to detect shaft displacement with ±0.5Ω accuracy under extreme temperatures.
Contact: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
