Description

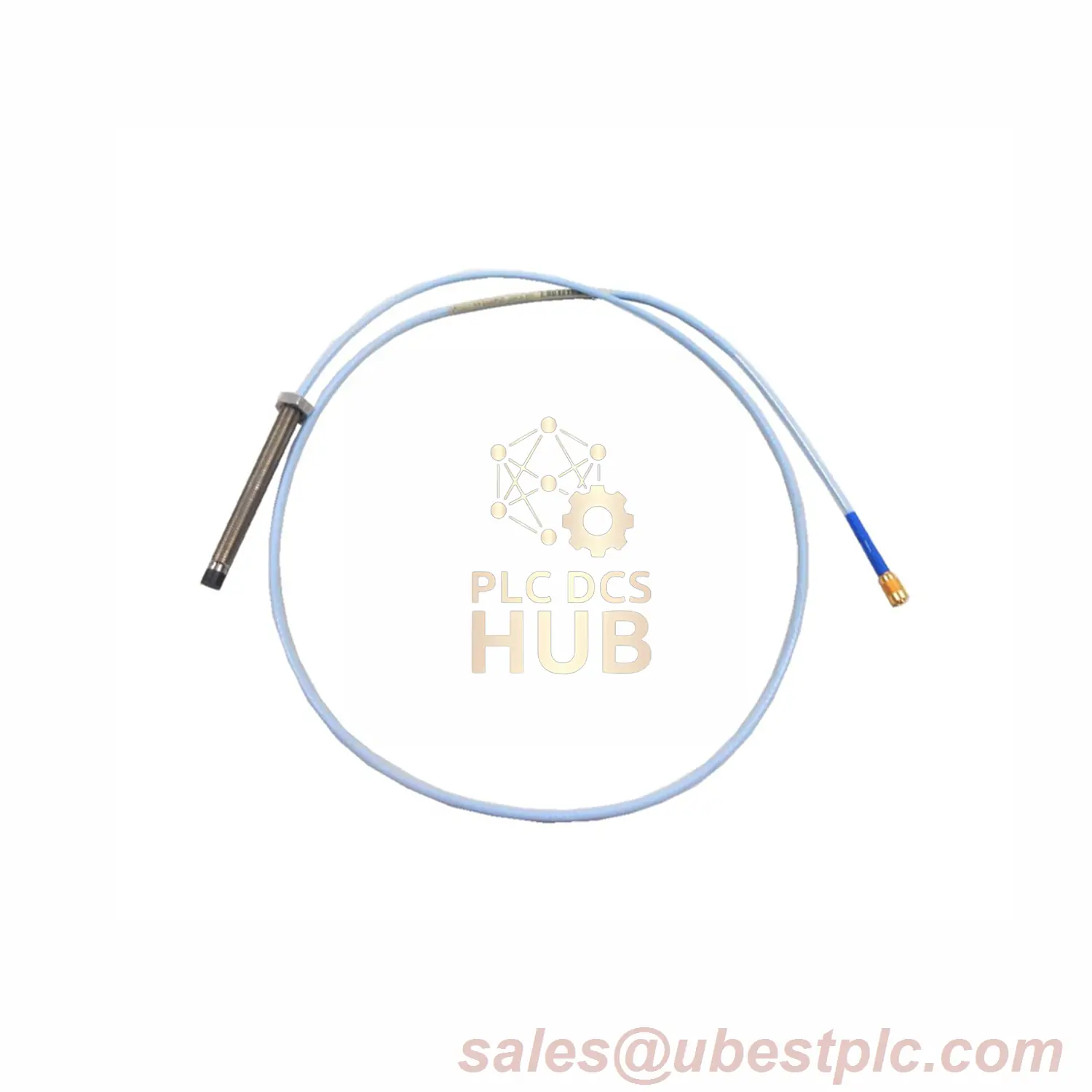

Bently Nevada 3300 XL 8 mm Proximity Probe 330103-00-06-05-02-05
Model: 330103-00-06-05-02-05
Configuration Breakdown
- 330103: 8 mm Probe, M10x1 Thread (Unarmored)
- 00 = 0 mm Unthreaded Length
- 06 = 60 mm Case Length
- 05 = 0.5 m (1.6 ft) Cable
- 02 = ClickLoc Miniature Connector
- 05 = CSA, ATEX, IECEx Certifications
Performance Data
- Linear Range: 0.25–2.3 mm (10–90 mils)
- DC Resistance: 7.45 Ω ±0.50 @ 0.5 m
- Output Signal: -1 to -17 Vdc (Radial Vibration Gap: -9 Vdc = 1.27 mm)
- Max Wiring: 305 m (1,000 ft) shielded triad cable
Environmental Resilience
- Temperature:
- Standard: -52°C to +177°C
- Extended: +260°C (Cable)
- Humidity: <3% ASF variation @ 93% RH (IEC 68-2-3)
- Pressure Seal: Viton® O-ring (custom testing available)
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T5-T1 Ga (Zone 0)
- CSA: Class I Div 1/2, Groups A-D
- Thread Specs: M10x1 (15 mm max engagement)
Industry Applications
- Pharmaceutical Mixers: Monitors agitator shaft alignment in washdown environments (60 mm case for compact housings).
- Steel Rolling Mills: Detects roll eccentricity in high-temperature zones up to +200°C.
Technical Support: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
