330103-00-07-20-02-CN Bently Nevada – Proximity Probe Without Armor M10 Thread

Description

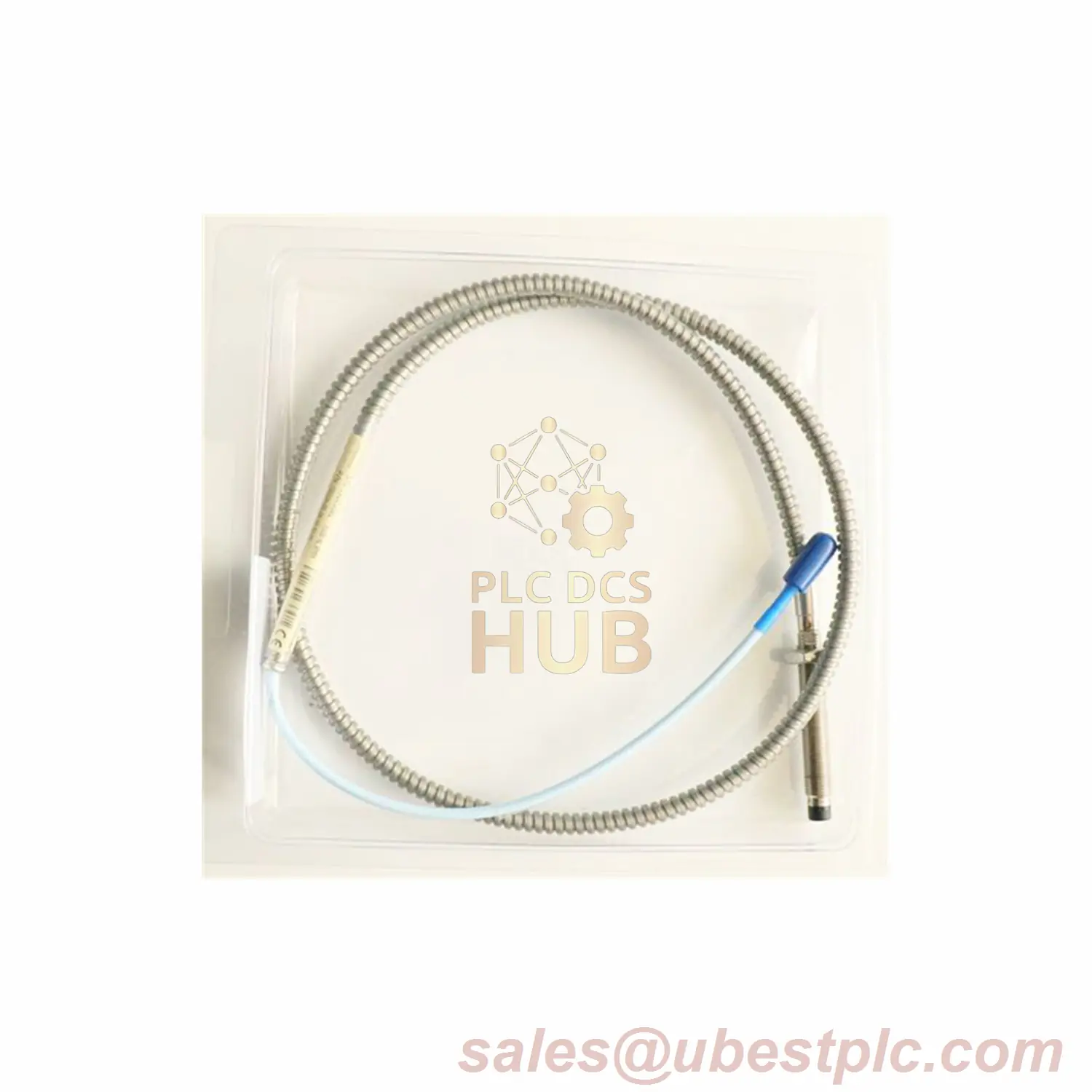

Bently Nevada 3300 XL 8mm Proximity Probe (PN: 330103-00-07-20-02-CN)

330103-00-07-20-02-CN: Compact 2-meter vibration sensor with 70mm extended stainless steel housing, designed for space-constrained installations requiring country-specific certifications (CN suffix). Ideal for precision radial vibration measurement.

Key Specifications

• Manufacturer: Bently Nevada
• Suffix Configuration:
  • 00: Zero unthreaded length
  • 07: 70mm probe casing
  • 20: 2.0m (6.6ft) standard cable
  • 02: ClickLoc connector
  • CN: Regional compliance

Performance Highlights

• Electrical Properties:
  • DC Resistance: 7.88Ω ±0.5Ω @2m
  • Voltage Output: -17V to -1V (±3% nonlinearity)
  • Frequency Response: 0.5Hz-15kHz (±1dB)
• Mechanical Features:
  • Housing Thread: M10x1 (15mm engagement)
  • Cable Flexibility: 180° bend cycle rating
  • Shock Resistance: 100g peak (11ms duration)

Environmental Specifications

• Operational Limits:
  • Tip Temperature: -52°C to +218°C
  • Cable Operating Range: -51°C to +260°C
  • Humidity Stability: ±2.5% ASF variation
• Material Compliance:
  • PPS Tip: UL94 V-0 flammability rating
  • Stainless Steel: ASTM A276 compliant

Installation Requirements

• Target Distance: 1.27mm gap (-9Vdc calibration)
• Cable Routing: Minimum 150mm radius from connector
• Shielding: 85% coverage braided shield mandatory

Industrial Use Cases

• Automotive Testing: Engine dyno vibration profiling
• Aerospace: Turbine blade clearance monitoring
• Pharmaceutical: Cleanroom pump shaft analysis

Custom Certification Support: Contact sales@ubestplc.com for regional compliance details

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
