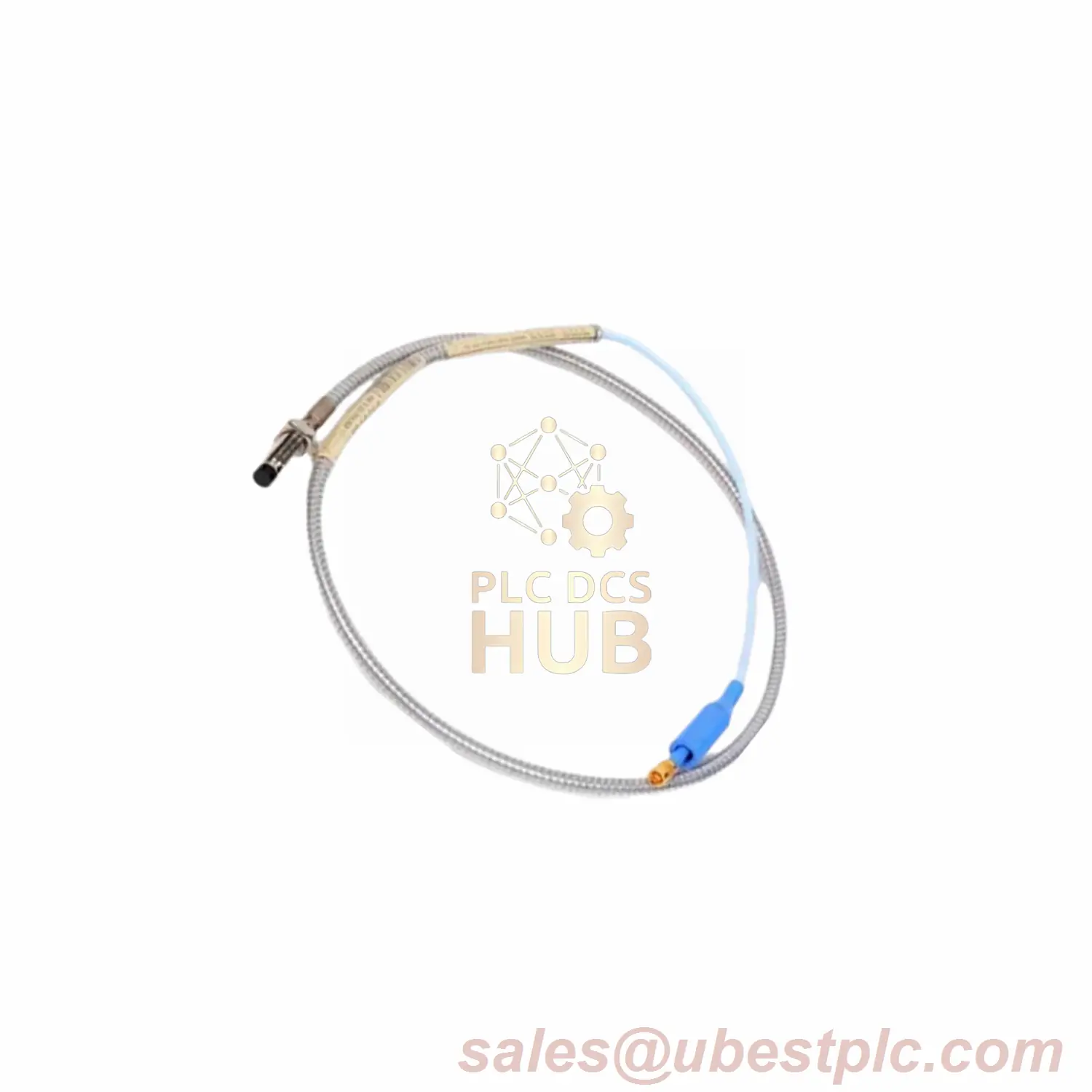

Bently Nevada 3300 XL 8 mm Proximity Probe
Product Description
The Bently Nevada 3300 XL 8 mm Proximity Probe is designed for high-precision vibration and position monitoring in industrial machinery. Featuring a PPS probe tip and stainless steel case, 330103-00-08-10-01-CN ensures durability in harsh environments. It includes a Viton® O-ring seal for differential pressure resistance and supports applications requiring intrinsic safety certifications.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-08-10-01-CN
- 00: Unthreaded Length (0 mm)
- 08: Case Length (80 mm)
- 10: Cable Length (1.0 meter)
- 01: ClickLoc Connector
- CN: Country-Specific Approvals
- Range: 2 mm (80 mils)
- Accuracy: DC Resistance 7.59 Ω ±0.50 Ω
- Output Signal: Linear range -1 to -17 Vdc
- Operating Temp: -52°C to +177°C (Extended: +218°C for tip)
- Cable: 3-conductor shielded triad, up to 305 meters
Installation & Compatibility
- Thread: M10x1 (15 mm max engagement)
- Wiring: 16-24 AWG shielded cable
- Compatible with: Intrinsically safe barriers (Drawing 141092) or galvanic isolators
Certifications
- Class I, Zone 0: AEx/Ex ia IIC T5-T1 Ga
- Class I, Div 2: Groups A-D, ATEX/IECEx certified
Package & Warranty
- Probe, connector protector, documentation
- Warranty: 12 months from date of delivery
Application Examples
- Monitoring turbine shaft vibration in power plants
- Position sensing in oil & gas compressor systems
Contact: For inquiries, email sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
