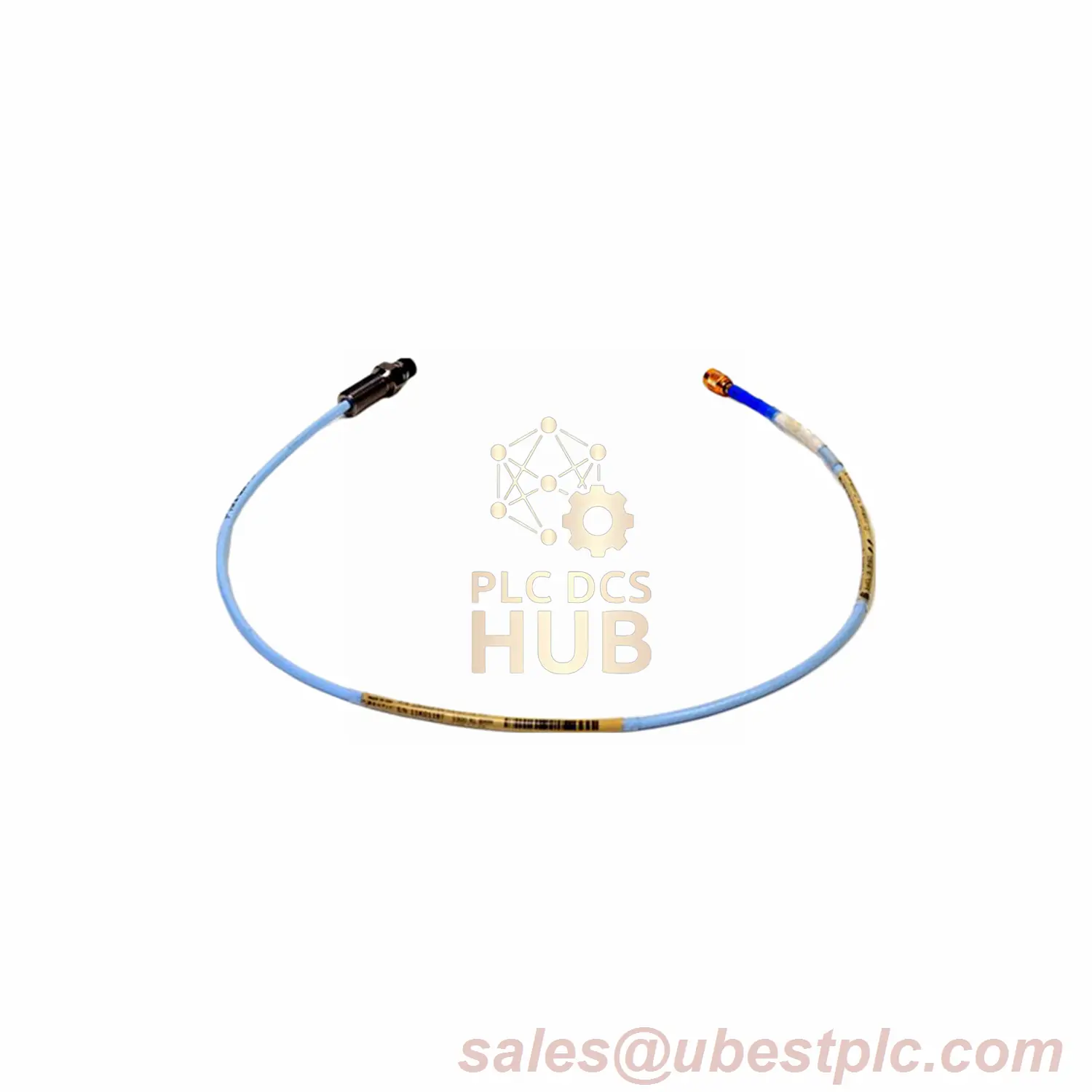

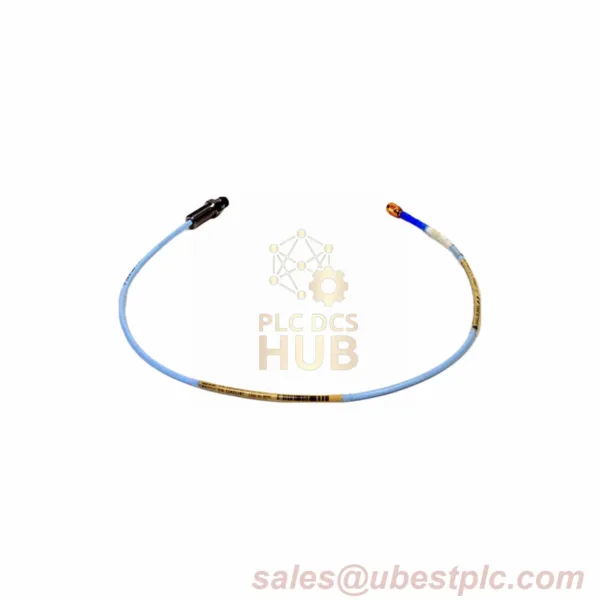

Bently Nevada 3300 XL 8 mm Proximity Probe
Description: The 3300 XL 8 mm Proximity Probe by Bently Nevada is engineered for high-accuracy vibration and displacement measurement in compact industrial setups. Featuring an **80 mm stainless steel case**, M10x1 threading, and a **PPS probe tip**, 330103-00-08-10-02-CN is ideal for space-constrained installations requiring **country-specific compliance (CN)**. Designed for harsh environments, it offers reliable performance with extended temperature tolerance and intrinsic safety compatibility.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-08-10-02-CN
- Suffix Breakdown:
- 00: Unthreaded Length (0 mm)
- 08: Case Length (80 mm)
- 10: Cable Length (1.0 m)
- 02: Miniature Coaxial ClickLoc Connector
- CN: Country-Specific Approvals
- Measurement Range: 0.25–2.3 mm (10–90 mils)
- Accuracy: ±0.50 Ω DC Resistance (1.0 m cable)
- Output Signal: Linear -1 to -17 Vdc
- Operating Temp: -52°C to +177°C (Standard)
- Extended Temp: Probe tip: -52°C to +218°C; Cable: -51°C to +260°C
- Thread Engagement: Max 15 mm (M10x1)
- Humidity Resistance: ≤3% ASF drift in 93% humidity (56 days)
Installation Guidelines
- Pressure Seal: Viton® O-ring (optional pressure testing available)
- Wiring: 3-conductor shielded triad cable (0.2–1.5 mm² / 16–24 AWG)
- Max Cable Run: 305 m (1,000 ft) to monitor
- Radial Gap Setting: -9 Vdc (~1.27 mm / 50 mils)
Certifications
- Country-Specific (CN): Complies with local hazardous zone standards
- Hazardous Area Ratings: Class I/II/III, Groups A–G, Zones 0/2
Application Examples
Wind turbine gearbox vibration analysis, automotive engine test bed monitoring, paper mill roller alignment verification.
Contact: For technical support or custom requirements, email sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
