330103-00-10-05-01-RU Bently Nevada – Proximity Probe M10 Thread

Description

Product Description

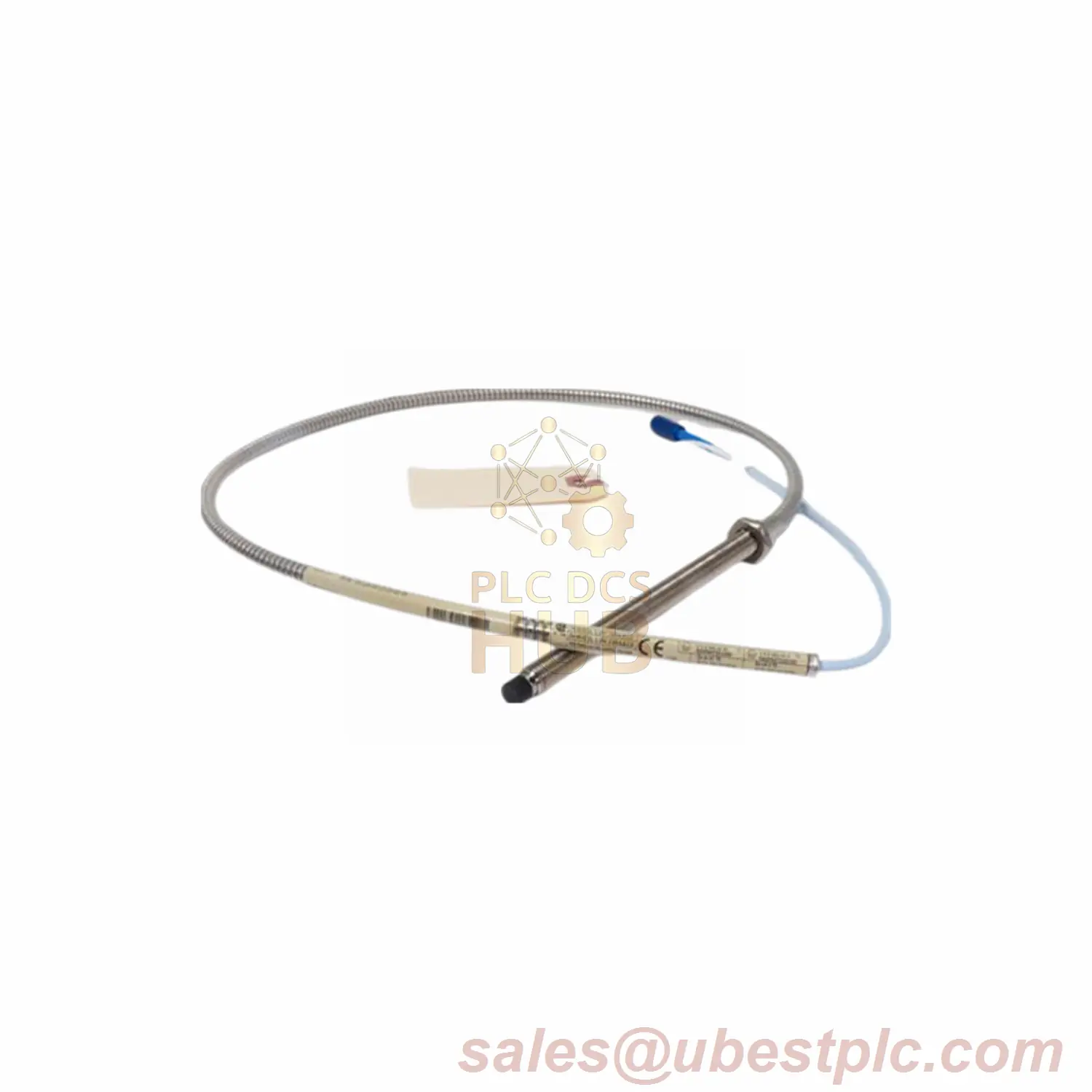

The Bently Nevada 3300 XL 8 mm Proximity Probe (Product No. 330103-00-10-05-01-RU) is a high-performance sensor designed for precise vibration and positional monitoring in industrial applications. Featuring an M10x1 thread, PPS probe tip, and stainless steel case, this probe ensures durability in harsh environments. The 0.5-meter cable with a ClickLoc connector provides reliable signal transmission.

Technical Data

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Proximity Probe 330103-00-10-05-01-RU
• Suffix Details: 00 (Unthreaded Length) | 10 (100mm Case Length) | 05 (0.5m Cable) | 01 (ClickLoc Connector) | RU (Country Approval)
• Linear Range: 2 mm (80 mils), starting at 0.25 mm from target
• Output Signal: -1 to -17 Vdc (Recommended Gap: -9 Vdc @ 1.27 mm)
• Accuracy: DC Resistance 7.45Ω ±0.50Ω
• Temperature Range: -52°C to +218°C (Probe Tip); -51°C to +260°C (Cable)

Installation Guide

• Use 16-24 AWG shielded triad cable (max 305m/1000ft from sensor to monitor)
• Ensure ≤15mm thread engagement for M10x1 case
• Avoid temperatures below -34°C to prevent seal damage

Compatibility

• Works with intrinsically safe zener barriers (Drawing 141092) or galvanic isolators
• Certified for Class I/II/III hazardous areas

Certifications

• AEx/Ex ia IIC T5-T1 Ga (Zone 0)
• AEx/Ex nA IIC T5-T1 Gc (Zone 2)
• IEC 68 2 3 humidity compliant

Packaging & Warranty

• Includes: Probe, ClickLoc connector protector, documentation
• 12-month warranty against manufacturing defects

Application Scenarios

• Gas turbine vibration monitoring
• Hydroelectric generator shaft displacement measurement
• Compressor bearing health analysis

Contact Information: For technical or sales inquiries, email sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
