Description

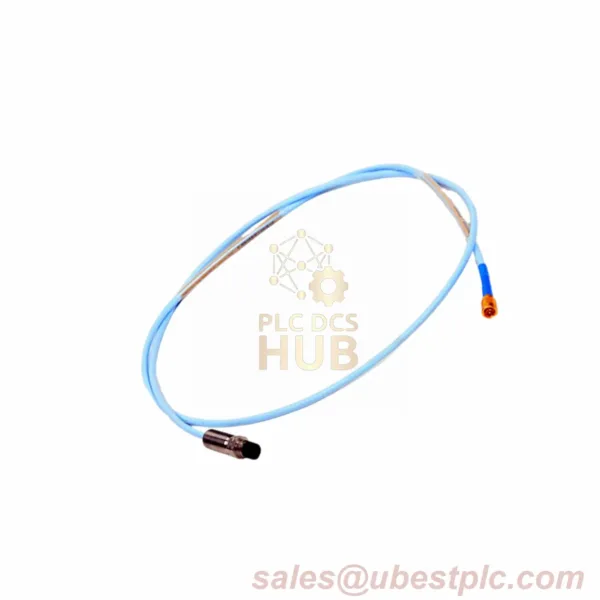

Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330103-00-11-90-02-CN)

330103-00-11-90-02-CN: A high-performance industrial proximity probe designed for precise vibration and position monitoring in harsh environments. Features an 8 mm sensing tip with robust stainless steel construction and extended temperature tolerance.

Technical Data

• Brand: Bently Nevada
• Model: 330103-00-11-90-02-CN
• Suffix Breakdown: 00=0mm Unthreaded Length | 11=110mm Case | 90=9m Cable | 02=ClickLoc Connector | CN=Country Approval
• Measurement Range: 0.25-2.3 mm (10-90 mils)
• Accuracy: 9.87Ω ±0.50 @9m
• Output Signal: -1 to -17 Vdc linear range
• Temp Range: -52°C to +260°C (operational)
• Thread: M10x1 (15mm max engagement)
• Cable: 9m Standard Triad (305m max extension)

Installation Guide

• Use 16-24 AWG shielded triad cable
• Maintain 1.27mm (50 mils) gap for radial vibration
• Ensure Viton® O-ring seal integrity
• Limit cable bends >25mm radius

Compatibility

Works with 3300 XL Proximitor Sensors and monitoring systems. Compatible with ATEX/IECEx Zone 0/1/2 installations using intrinsic safety barriers.

Certifications

• AEx/Ex ia IIC T1-T5
• Class I Div 1/2 (Groups A-D)
• IEC 60079-0/11/15 compliant

Package Contents

• Probe assembly with ClickLoc connector
• Installation documentation
• Viton® O-ring (pre-installed)

Warranty

12-month limited warranty against manufacturing defects. Excludes damage from improper installation or extreme temperatures beyond specifications.

Application Example

Used in gas turbine shaft monitoring at XYZ Power Plant, providing continuous vibration data at 10,000 RPM with 0.5μm resolution in 80°C ambient conditions.

Contact for Technical Support: sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
