Description
Description

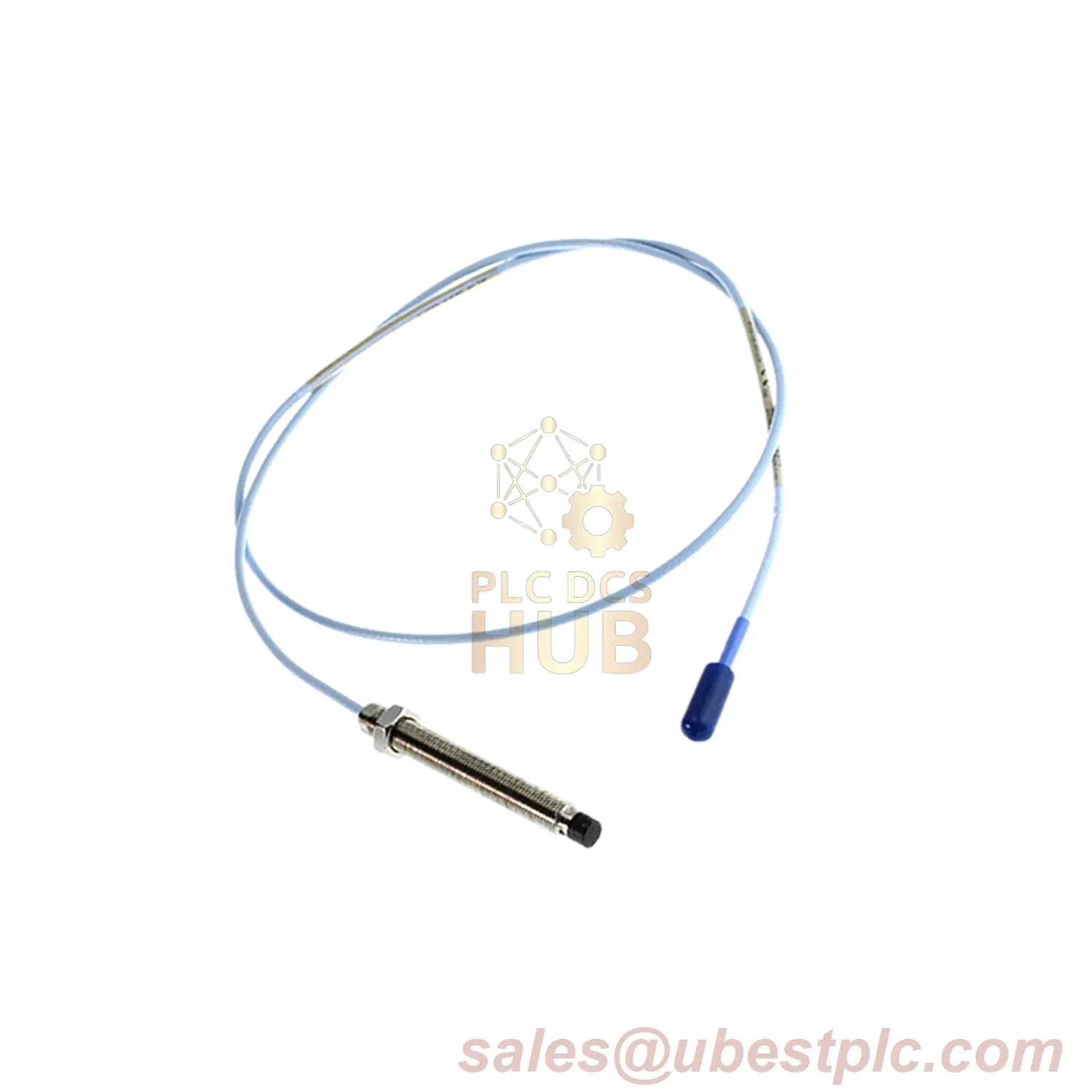

The Bently Nevada 330103-00-12-05-12-00 is a 3300 XL 8 mm Proximity Probe engineered for high-precision vibration and position sensing in demanding industrial environments. Featuring an M10x1 threaded stainless steel case, **FluidLoc cable**, and a PPS probe tip, it delivers exceptional resistance to moisture and contaminants. Ideal for applications requiring rugged reliability with ±0.50Ω resistance stability and extended operational flexibility.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-12-05-12-00
- 330103: Base model (3300 XL 8 mm Probe, M10x1 thread, no armor)
- 00: Unthreaded length = 0 mm
- 12: Overall case length = 120 mm
- 05: Cable length = 0.5 meters
- 12: Miniature coaxial ClickLoc connector with FluidLoc cable
- 00: No agency approvals
- Measurement Range: 2 mm (80 mils), linear from 0.25 mm to 2.3 mm
- Output Signal: -1 to -17 Vdc
- DC Resistance: 7.45 ±0.50 Ω
- Operating Temperature: -52°C to +218°C (Extended Range)
- Cable Rating: FluidLoc cable resists oil/chemical exposure (IP68 equivalent)
- Humidity Tolerance: ≤3% ASF deviation at 93% RH for 56 days
Installation Guide
- Thread Engagement: Max 15 mm for M10x1
- Cable Extension: Up to 305 meters with shielded triad cable
- Pressure Seal: Viton® O-ring (contact factory for pressure testing)
Compatibility
- Integrates with Bently Nevada 3500/3300 monitoring systems
- Supports Class I Zone 2 (AEx/Ex ec IIC T5-T1 Gc) hazardous areas
Certifications
- ATEX/IECEx: Ex nA IIC T5 Gc
- UL/cUL: Class I Div 2 Groups A-D
Package Contents
- 3300 XL 8 mm Proximity Probe with FluidLoc Cable
- Installation Manual & Compliance Documentation
Application Example
Deployed in offshore oil rig centrifugal compressors to monitor shaft eccentricity and bearing wear. The FluidLoc cable ensures reliable performance in high-humidity, saltwater environments.
Contact Information
For technical specifications: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
