Description

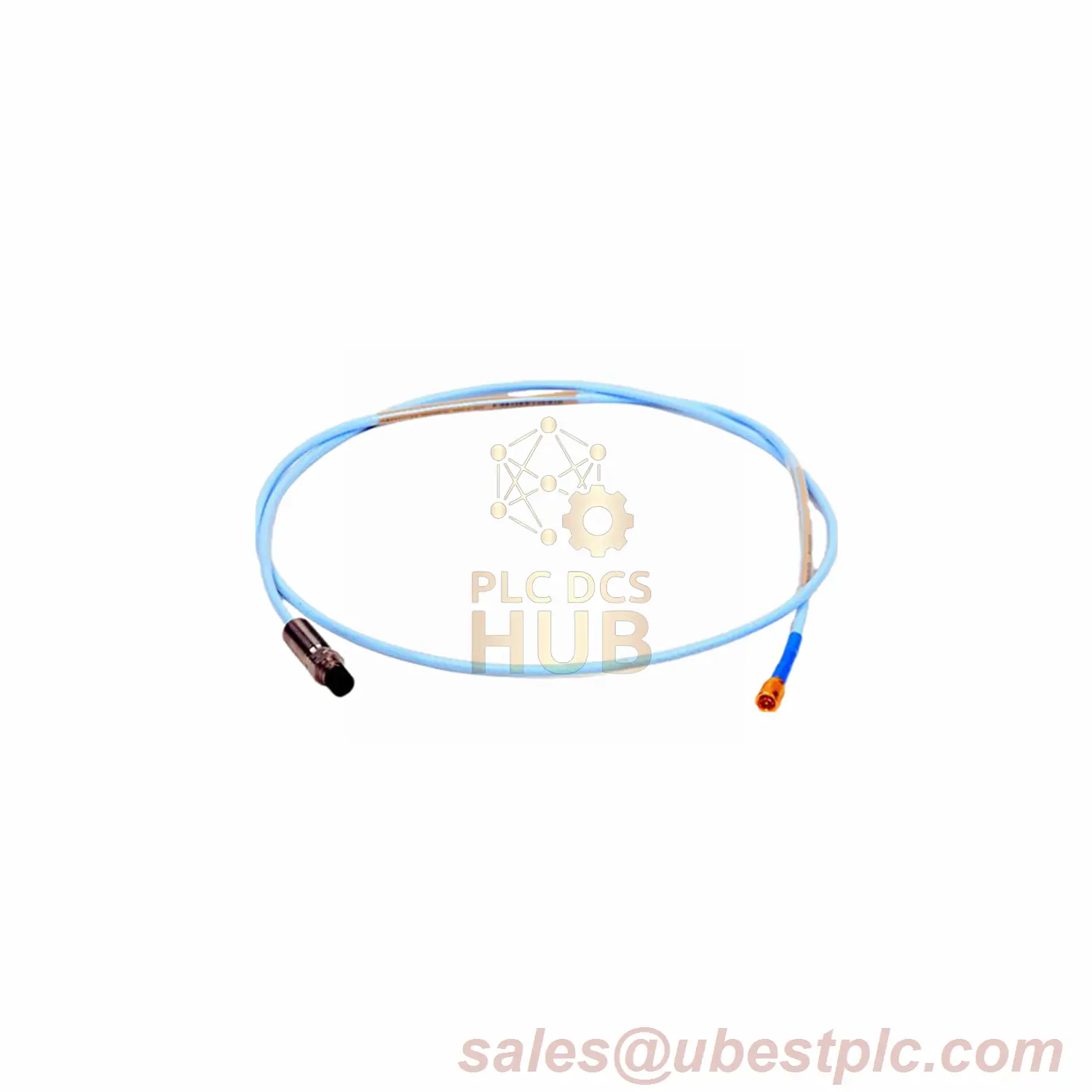

Bently Nevada 3300 XL 8 mm Proximity Probe
Model: 330103-00-12-50-02-CN
Configuration Breakdown for 330103-00-12-50-02-CN
- Base Code: 330103 (M10x1 Thread, Unarmored)
- 00: 0 mm Unthreaded Length
- 12: 120 mm Extended Case
- 50: 5.0 m Cable (16.4 ft)*
- 02: ClickLoc Miniature Connector
- CN: Country-Specific Certifications
*Exclusive compatibility with 5-meter Proximitor sensors.
Technical Highlights
| Linear Range | 0.25–2.3 mm (10–90 mils) | Weight | 323 g/m (11.4 oz) |
| DC Resistance | 8.73 Ω ±0.50 @ 5.0 m | Thread | M10x1 (15 mm max) |
| Output Signal | -1 to -17 Vdc | Humidity | <3% ASF drift (IEC 68-2-3) |
Certifications & Safety
- ATEX/IECEx Zone 0: AEx/Ex ia IIC T5-T1 Ga
- Material Compliance: AISI 303/304 SST housing & PPS tip
- Pressure Seal: Viton® O-ring (optional testing)
Industrial Applications
- Nuclear Power Plant Coolant Pumps: Monitors shaft vibrations in radiation-controlled zones with 120 mm corrosion-resistant case.
- Coastal Desalination Plants: Detects impeller imbalance in high-salinity environments using 5.0 m saltwater-proof cabling.
Temperature Performance
- Standard Range: -52°C to +177°C
- Extended Cable Rating: -51°C to +260°C
- Pressure Seal Warning: Avoid sustained use below -34°C
Contact Technical Team: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
