Product Description

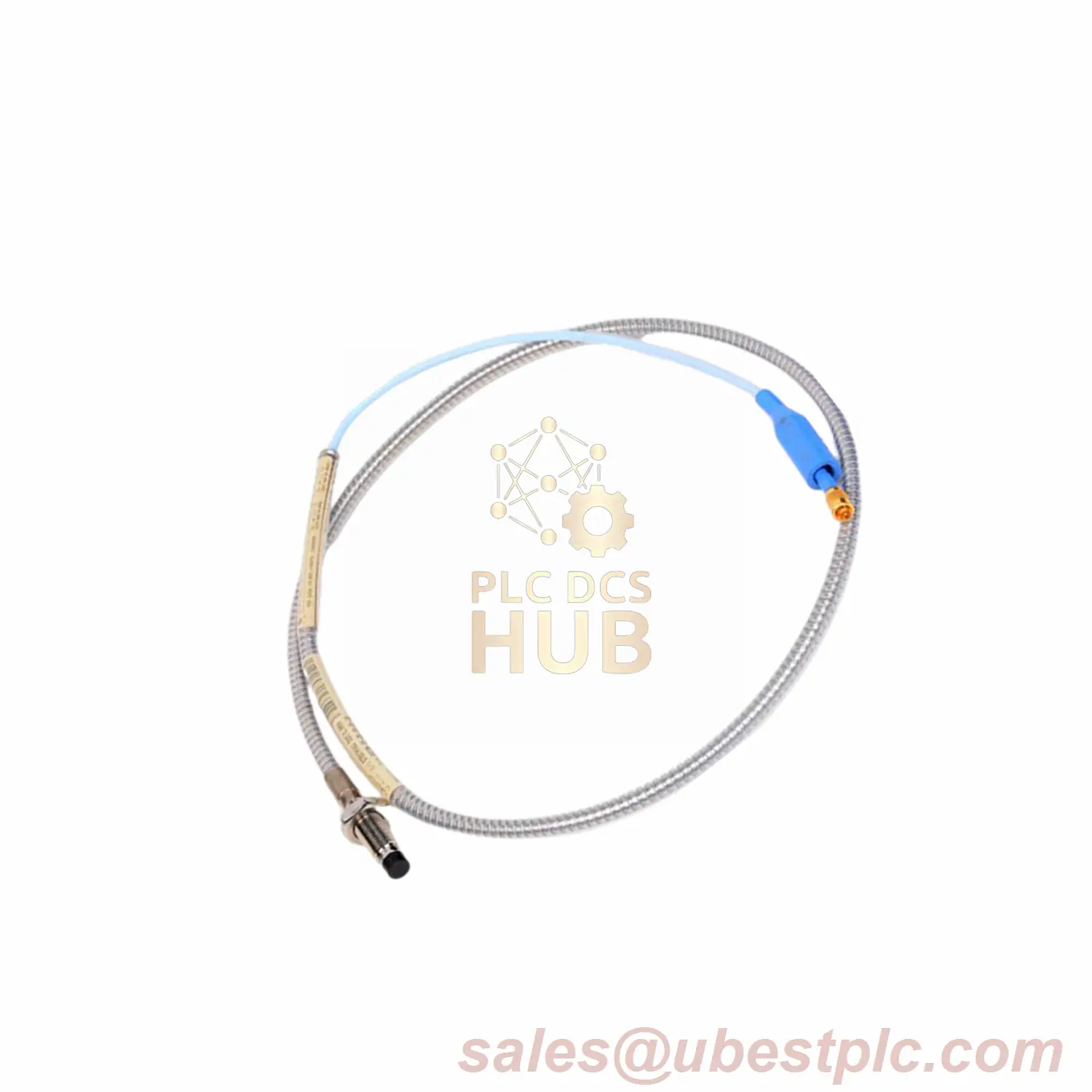

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330103-01-07-05-02-00) is engineered for high-accuracy vibration and position measurement in industrial applications. Built with a stainless steel case and PPS tip, it delivers reliable performance in extreme conditions. Features a Miniature Coaxial ClickLoc connector with a compact 0.5-meter cable for flexible installations.
Technical Data
- Brand: Bently Nevada
- Model: 330103-01-07-05-02-00
- 01: Unthreaded Length (10 mm)
- 07: Overall Case Length (70 mm)
- 05: Total Cable Length (0.5 meter / 1.6 feet)
- 02: Miniature Coaxial ClickLoc Connector with Standard Cable
- 00: No Agency Approval Required
- Range: 2 mm (80 mils), Linear Range: 0.25–2.3 mm (10–90 mils)
- Accuracy: Probe Resistance: 7.45 Ω ±0.50 Ω (0.5m cable)
- Output Signal: -1 to -17 Vdc (Optimal Gap: -9 Vdc / 1.27 mm)
- Operating Temperature: -52°C to +177°C (Standard); Cable/Connector: -51°C to +260°C
Installation Guide
- Field Wiring: 0.2–1.5 mm² (16–24 AWG) shielded triad cable; Max 305 meters (1,000 feet).
- Thread Engagement: M10x1 thread with ≤15 mm engagement.
- Avoid prolonged exposure below -34°C (-30°F) to maintain seal integrity.
Compatibility & Certifications
- Intrinsic Safety: Supports AEx/Ex ia IIC T5–T1 Ga (Class I, Zone 0).
- Non-Incendive: Compliant with AEx/Ex nA/ec IIC T5–T1 Gc (Class I, Zone 2).
- Standards: IEC 68-2-3 (humidity resistance), ATEX, UL, CSA.
Package & Warranty
- Includes: Probe, ClickLoc connector, installation guide.
- Warranty: 1-year limited warranty covering material defects.
Application Examples
- Pump Systems: Monitor shaft vibration in chemical processing pumps exposed to high humidity.
- Power Generators: Detect rotor eccentricity in gas turbines operating at up to 200°C.
- Gearboxes: Measure axial displacement in heavy-duty mining equipment.
Contact Us: For technical support, email sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
