Description

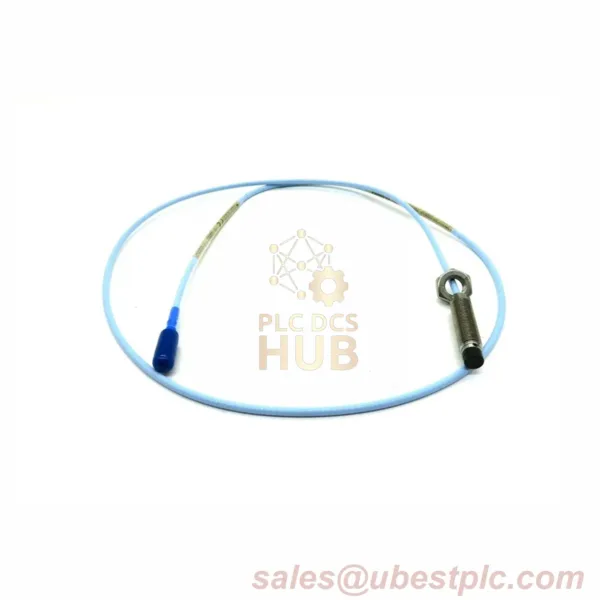

Bently Nevada 330103-02-17-05-02-05: 8mm Industrial Proximity Probe
Product Configuration Tree
- 330103: Base model (8mm Probe, M10x1 thread)
- 02: Unthreaded length = 20mm
- 17: Case length = 170mm
- 05: Cable length = 0.5m
- 02: Miniature coaxial ClickLoc connector
- 05: CSA/ATEX/IECEx certified
Key Electrical Specifications
- Brand: Bently Nevada
- Model: 330103-02-17-05-02-05
- Resistance: 7.45Ω ±0.5Ω
- Linear Range: 0.25-2.3mm (-1V to -17V DC)
- Optimal Gap: 1.27mm (-9V DC)
- Max Wiring: 305m (shielded triad)
Installation Details
- Thread: M10×1 (15mm max engagement)
- Case Material: AISI 303/304 stainless steel
- Tip Material: PPS plastic
- Seal: Viton® O-ring
- Weight: 323g/m
Maintenance Guidelines
- Check O-ring integrity every 6 months
- Verify resistance values quarterly
- Never expose to temperatures below -34°C
- Use only shielded triad cables
Advanced FAQ
Q: Difference between 20mm vs 60mm unthreaded length?
A: 20mm suits tight spaces; 60mm better for deep installations.
Q: Chemical resistance of PPS tip?
A: Resists acids, alkalis, fuels. Avoid ketones and chlorinated solvents.
Q: Replacement interval?
A: 5+ years with proper maintenance. Monitor resistance drift.
Q: Vibration limits?
A: Withstands 20g @ 2kHz. Not for impact monitoring.
Q: Custom cable lengths?
A: Available from 0.5m to 10m. Contact for special orders.
Shipping & Warranty
Includes probe with 0.5m cable/connector. Ships via FedEx/UPS/DHL worldwide. 12-month manufacturer warranty.
Safety Certifications
ATEX/IECEx/CSA approved for hazardous zones. Temperature range: -52°C to +177°C. Humidity resistance: <3% signal drift at 93% RH.
