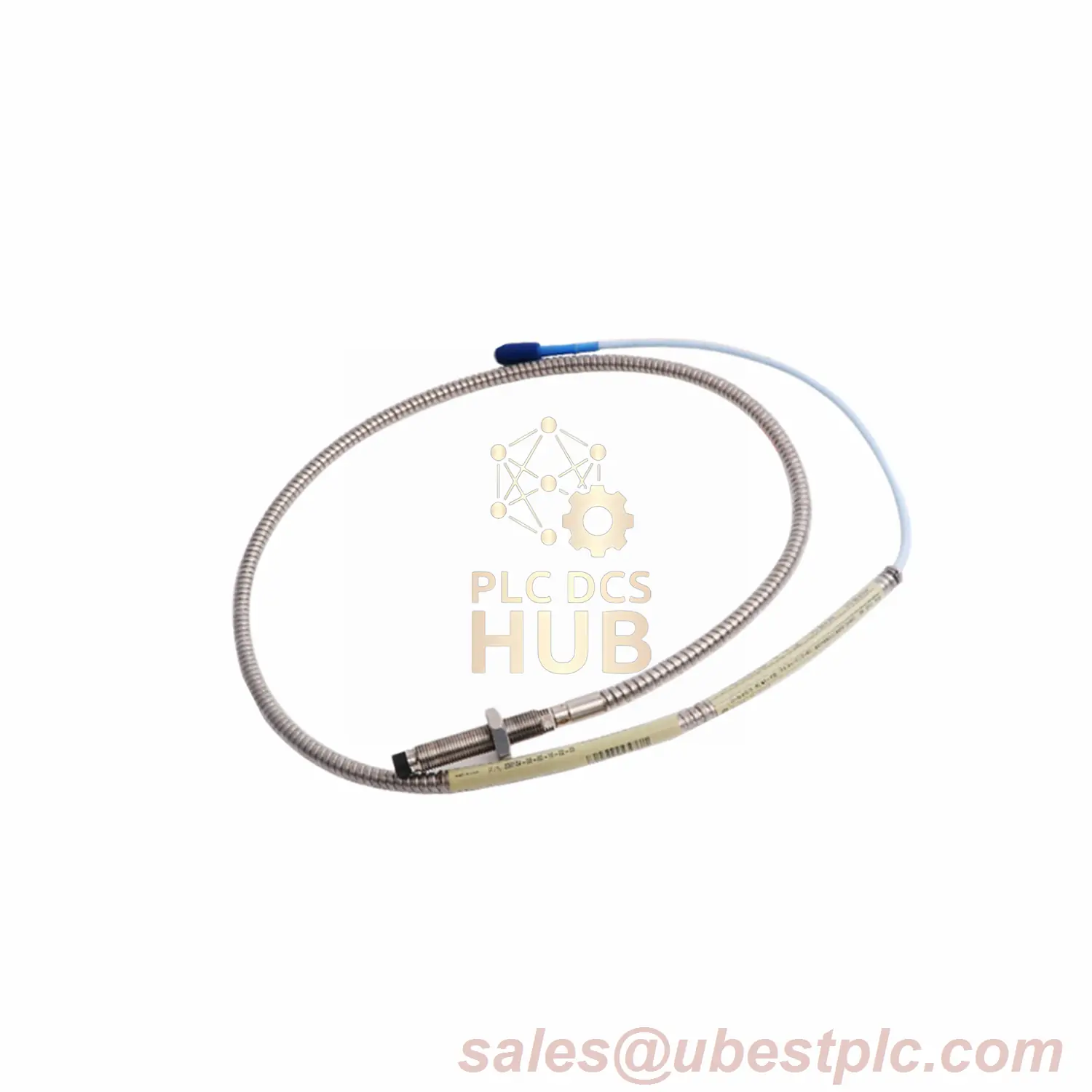

Bently Nevada 3300 XL 8 mm Proximity Probe
Description: The 3300 XL 8 mm Proximity Probe by Bently Nevada combines extended unthreaded length with a robust 150 mm case for versatile industrial applications. Featuring **60 mm unthreaded section**, M10x1 threading, and **PPS tip**, 330103-06-15-10-02-CN is certified for **country-specific (CN)** hazardous environments. Ideal for deep-mount installations, it ensures precision in vibration monitoring under extreme thermal and mechanical stress.
Technical Data
- Brand: Bently Nevada
- Model: 330103-06-15-10-02-CN
- Suffix Breakdown:
- 06: Unthreaded Length (60 mm)
- 15: Case Length (150 mm)
- 10: Cable Length (1.0 m)
- 02: Miniature Coaxial ClickLoc Connector
- CN: Country-Specific Approvals
- Linear Range: 0.25–2.3 mm (10–90 mils)
- Output Signal: -1 to -17 Vdc
- DC Resistance: 7.59 Ω ±0.50 (1.0 m)
- Operating Temp: -52°C to +177°C
- Extended Temp: Tip: -52°C to +218°C; Cable: -51°C to +260°C
- Thread Engagement: 15 mm max (M10x1)
- Humidity Tolerance: ≤3% ASF drift (93% RH, 56 days)
Installation Guidelines
- Pressure Seal: Viton® O-ring (custom pressure testing available)
- Wiring: Shielded triad cable (0.2–1.5 mm² / 16–24 AWG)
- Max Distance: 305 m (1,000 ft) to monitor
- Radial Gap: Set to -9 Vdc (~1.27 mm / 50 mils)
Compatibility
- Compatible with 3300 XL Proximitor Sensors
- Supports ia/nA/ec configurations per IECEx/ATEX
Certifications
- Country-Specific (CN): Complies with local explosive atmosphere standards
- Hazardous Zones: Class I/II/III, Groups A-G, Zones 0/2
Package & Warranty
- Includes: Probe, ClickLoc connector, installation manual
- Warranty: 12 months from shipment
Application Examples
Oil drilling rig gearbox monitoring, hydroelectric turbine shaft alignment, railway traction motor vibration analysis.
Contact: For inquiries or customization, email sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
