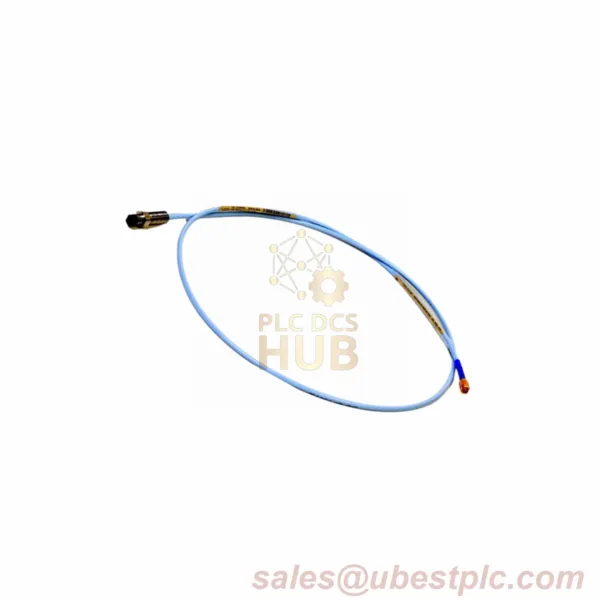

The Bently Nevada 330103-10-20-10-02-00 is a robust 3300 XL 8 mm Proximity Probe engineered for industrial vibration and displacement monitoring. Featuring an M10x1 thread and 200mm overall case length, this unarmored probe combines a Polyphenylene Sulfide (PPS) tip with a AISI 303/304 stainless steel body for resilience in extreme conditions. The Viton® O-ring ensures reliable pressure sealing, while the Miniature ClickLoc connector (Option 02) simplifies secure cabling. Ideal for heavy machinery health management, it meets stringent safety certifications and operates across wide temperature ranges.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- Part Number: 330103-10-20-10-02-00 (Suffix: 10-20-10-02-00)
- Suffix Breakdown:
- Unthreaded Length: 10 (100 mm)
- Case Length: 20 (200 mm)
- Unthreaded Length Option : 10= 100mm
- Cable Type: 02 (ClickLoc connector, no protector)
- Agency Approval Option : 00 Not required
- Linear Range: 0.25–2.3 mm (10–90 mils), calibrated for -1 to -17 Vdc output
- Accuracy: ±0.50 Ω resistance tolerance (7.59 Ω @ 1.0 m cable)
- Temperature Limits:
- Standard: -52°C to +177°C
- Extended Tip: -52°C to +218°C
- Cable/Connector: -51°C to +260°C
- Cable Specifications: 1.0 m length, 3-conductor shielded triad (16–24 AWG), 305 m max field wiring.
Installation Guidelines
- Max thread engagement: 15 mm (M10x1).
- Avoid bending radii < 25 mm to prevent cable damage.
- Optimal radial vibration gap: 1.27 mm (50 mils) at -9 Vdc.
- Humidity tolerance: <3% ASF deviation in 93% RH (56 days).
Certifications & Compliance
- ATEX/IECEx:
- Zone 0: AEx/Ex ia IIC T1-T5 (with intrinsic safety barriers)
- Zone 2: AEx/Ex nA/ec IIC T1-T5 (non-incendive circuits)
- Compliant with IEC 60079-11 and IEC 68-2-3 humidity standards.
Applications
- Steam Turbine Bearing Monitoring: Detects shaft misalignment and wear in high-temperature steam environments.
- Hydroelectric Generator Thrust Bearing Analysis: Measures axial displacement under heavy loads.
- Paper Mill Motor Health Monitoring: Tracks vibration in humid, dust-prone conditions.
Package & Warranty
- Includes probe, standard cable, and documentation.
- 12-month warranty covering material and workmanship defects.
Contact: For custom pressure seal testing or bulk orders, email sales@ubestplc.com.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
