Description

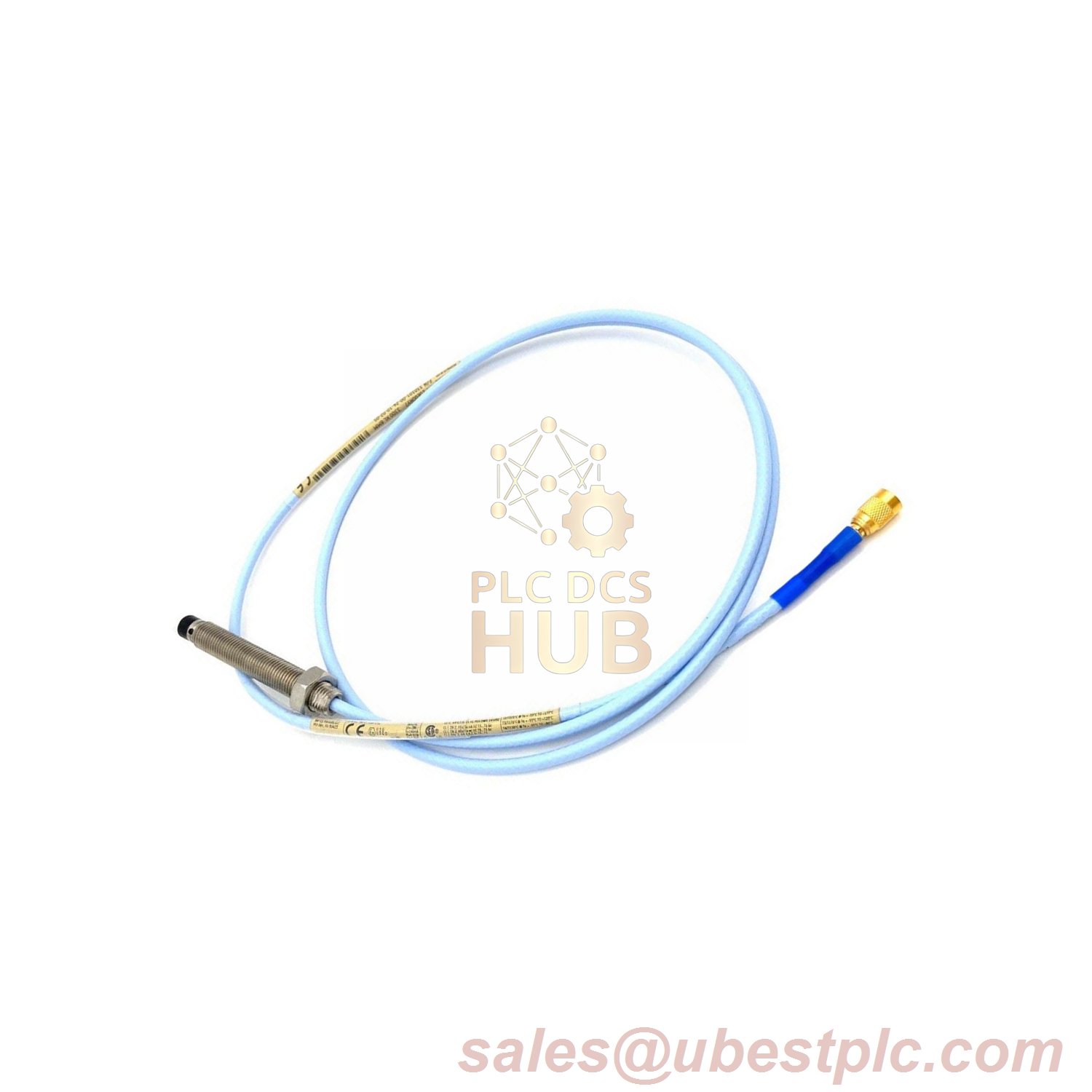

Bently Nevada 3300 XL 8 mm Proximity Probe
Made in the U.S.A. Compact industrial proximity probe 330104-00-02-50-02-00 with 0.5-meter armored cable, M10x1 threading, and Viton® O-ring sealing. Ideal for tight spaces and general machinery monitoring.
Key Features:
- Short Profile: 20 mm case length for confined installations
- ClickLoc Connector: Secure miniature coaxial connection
- Pressure Resistance: Viton® O-ring seals differential pressure
- No Certifications Required: Designed for standard industrial use
Technical Specifications
| Parameter | Details |
|---|---|
| Product Code | 330104-00-02-50-02-00 |
| Configuration | 00: 0 mm Unthreaded 02: 20 mm Case Length 50: 0.5 m Total Length 02: ClickLoc Connector |
| Electrical | Power: -17.5 to -26 VDC Output Resistance: 50 Ω DC Resistance (0.5 m): 7.45 Ω ±0.50 |
| Mechanical | Thread: M10x1 with Armor Tip: PPS Polymer Case: AISI 303/304 Stainless Steel |
| Environmental | Validated Range: +18°C to +27°C Target: AISI 4140 Steel (1.27 mm gap) |
Contact: For COO or technical support, email sales@ubestplc.com.
