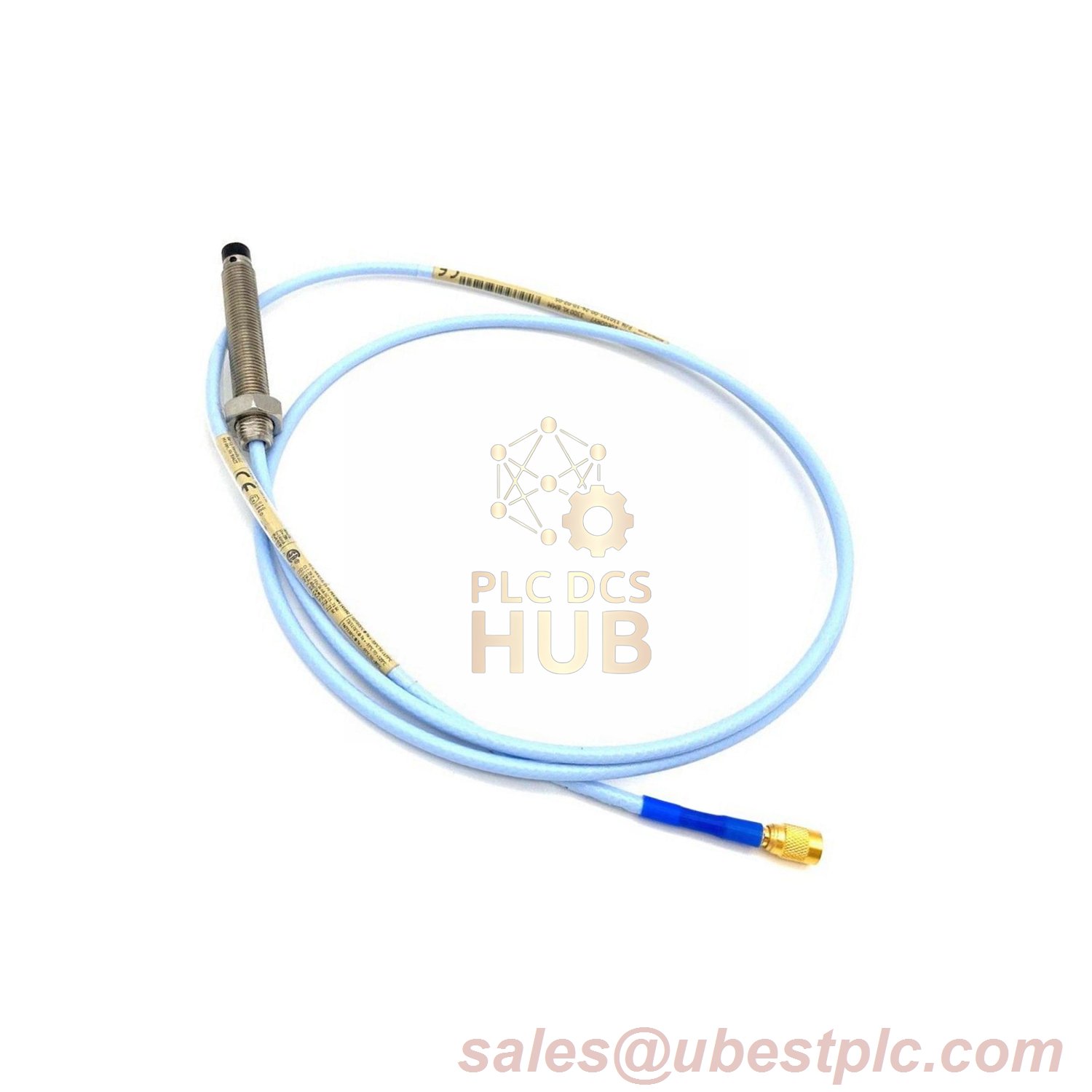

The 330104-03-12-05-02-05 is a hazardous area-certified proximity probe designed for explosive environment monitoring. Featuring CSA/ATEX/IECEx approvals, a 0.5 m armored cable, and 120 mm case length, it delivers reliable vibration measurement in Zone 1/21 areas. With an M10 x 1 thread and Viton® sealing, it is ideal for oil & gas and chemical industries.
Technical Specifications
| Model | 330104-03-12-05-02-05 |
|---|---|
| Suffix Codes | 03: 30 mm unthreaded length 12: 120 mm case length 05: 0.5 m cable 02: ClickLoc™ connector 05: CSA/ATEX/IECEx certified |
| Electrical | Power: -17.5 Vdc to -26 Vdc Output Resistance: 50 Ω Probe Resistance (0.5 m): 7.45 Ω ±0.50 |
| Material | PPS probe tip | AISI 303/304 SST case |
| Sealing | Viton® O-ring (pressure differential rated) |
