Description

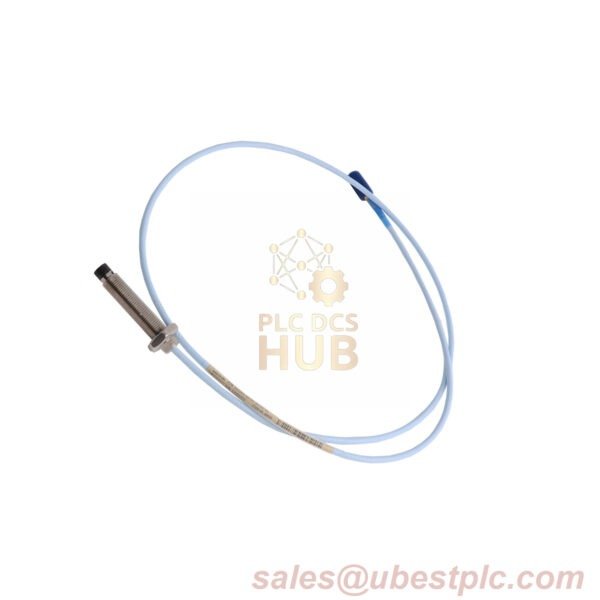

The 330104-12-20-10-02-00 is an industrial-grade proximity probe engineered for deep-mount vibration monitoring. Featuring a 200 mm case length, 120 mm unthreaded section, and 1.0 m armored cable, it combines extended reach with rugged durability. Designed for non-hazardous environments with Viton® sealing and M10 metric threading.
Technical Specifications
| Model | 330104-12-20-10-02-00 |
|---|---|
| Suffix Codes | 12: 120 mm unthreaded length 20: 200 mm case length 10: 1.0 m armored cable 02: ClickLoc™ connector 00: No certifications required |
| Electrical | Power: -17.5 Vdc to -26 Vdc Output Resistance: 50 Ω Probe Resistance (1.0 m): 7.88 Ω ±0.50 |
| Material | PPS probe tip | AISI 303/304 stainless steel case |
| Sealing | Viton® O-ring (pressure-rated for harsh environments) |
Installation Notes
- Voltage Requirement: Maintain ≥-23.5 Vdc for 0.25-2.3 mm linear range
- Gap Setting: 1.27 mm (50 mils) from target surface for optimal performance
- Cable Strength: Armor withstands 330 N (75 lbf) tensile force
- Mounting Depth: 320 mm total probe length (200 mm case + 120 mm unthreaded)
