Description
Description

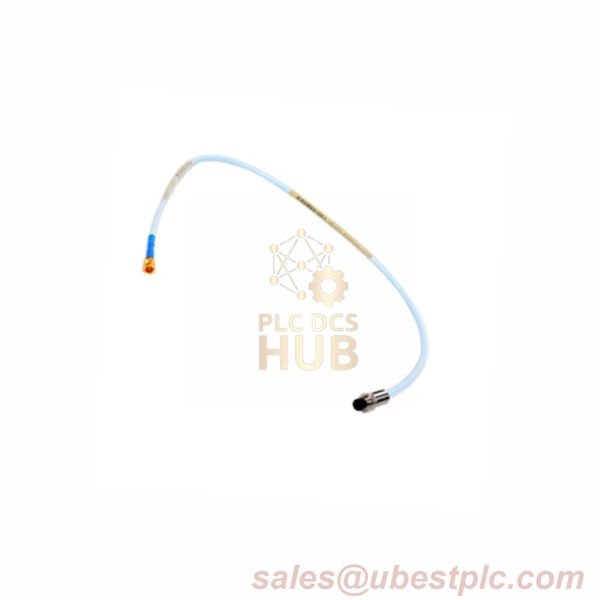

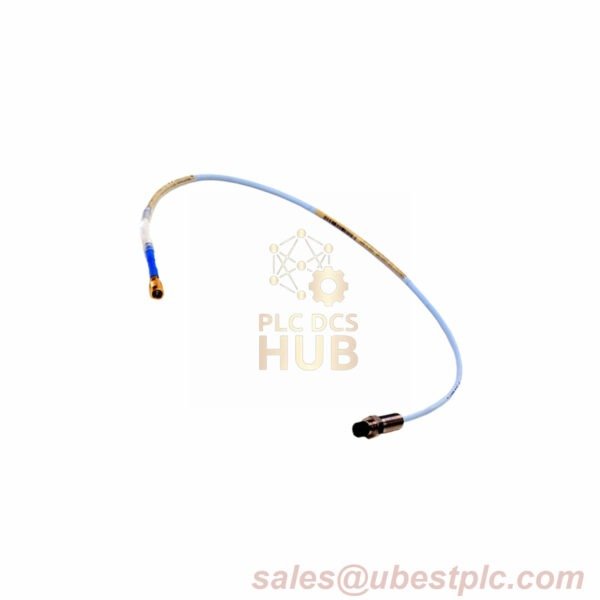

The 330105-02-12-10-12-05 is a high-performance reverse-mount probe designed for industrial applications in hazardous and non-hazardous environments. With a 1.0-meter length and 3/8-24 UNF threads, it features a Miniature ClickLoc coaxial connector with FluidLoc cable option. This probe is CSA, ATEX, and IECEx approved, making it suitable for use in explosive atmospheres.
Technical Specifications
| Model Number | 330105-02-12-10-12-05 |
|---|---|
| Suffix Codes | 10: 1.0-meter total length option 12: Miniature ClickLoc coaxial connector with FluidLoc cable option 05: CSA, ATEX, IECEx approvals |
| Thread Specification | 3/8-24 UNF threads |
| Probe Resistance | 7.59 Ω ± 0.50 Ω (at 1.0-meter length) |
| Temperature Range | Standard Probe: -52°C to +177°C (-62°F to +350°F) Extended Temperature Range Probe: -52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to +500°F) for the probe cable and connector |
| Weight | 323 g/m (11.4 oz) |
Contact Information
For inquiries regarding probe applications, approvals, or custom testing:
Email: sales@ubestplc.com
