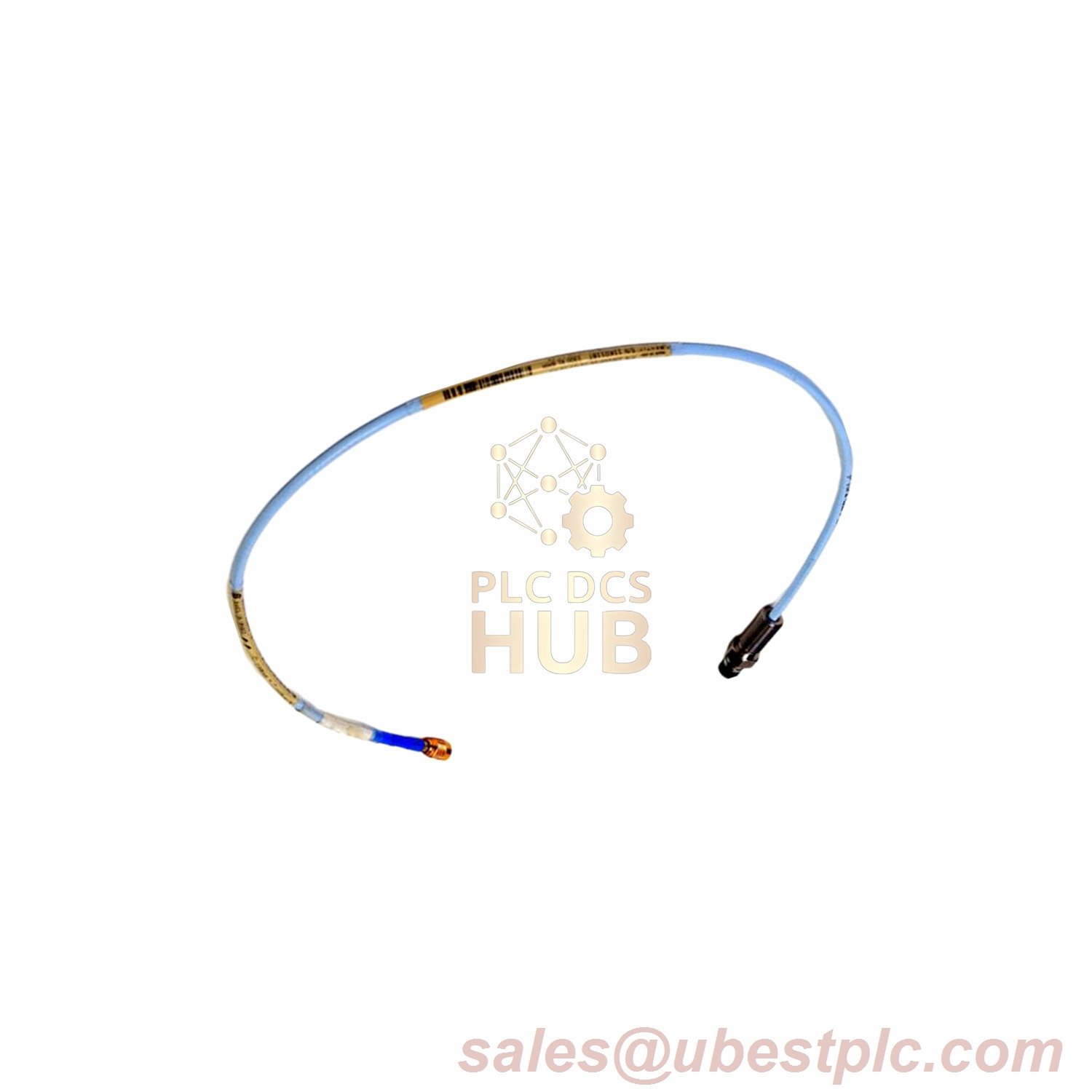

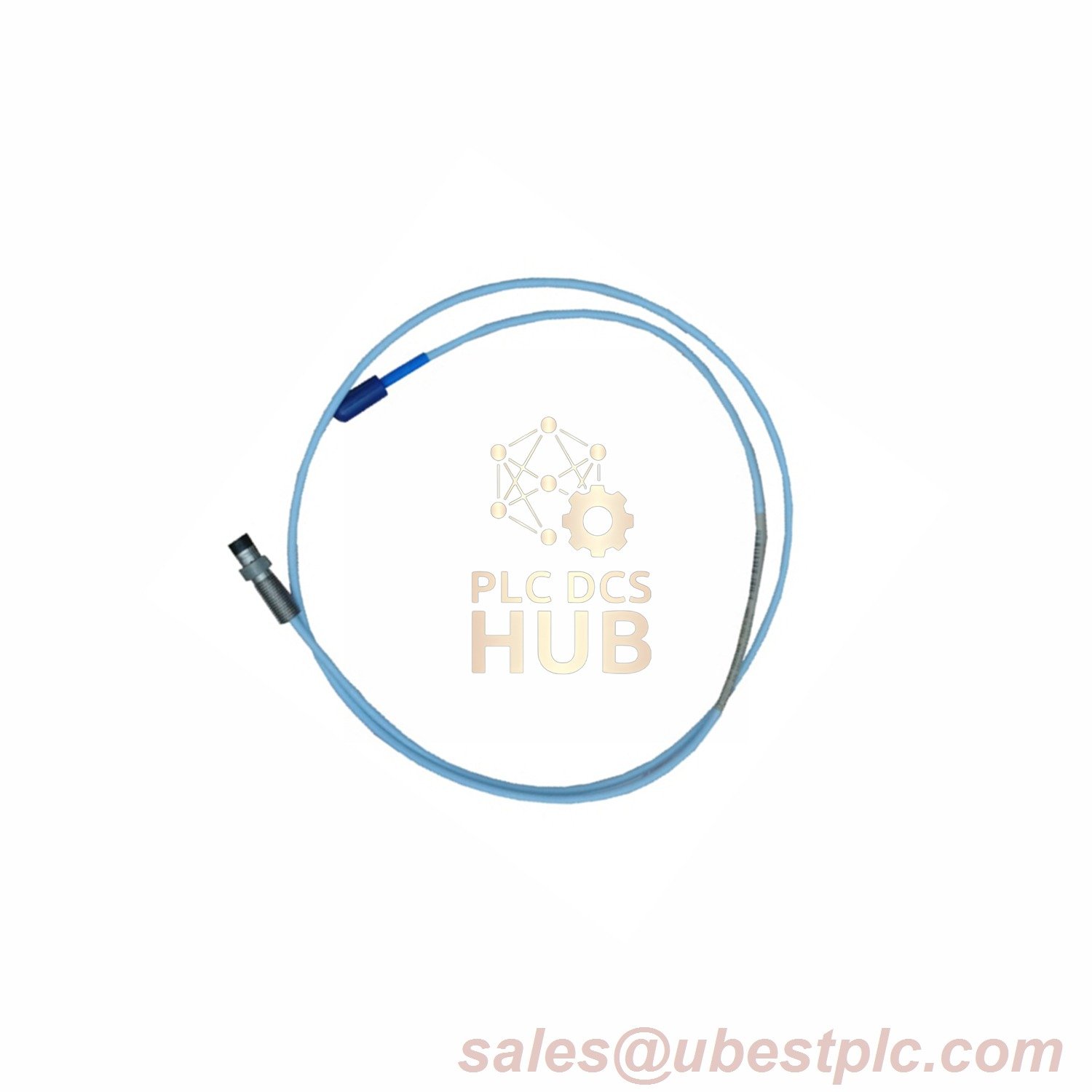

The 330105-02-12-10-12-CN is a reverse-mount proximity probe engineered for regionally compliant industrial monitoring. Featuring a 1.0-meter FluidLoc cable, 3/8-24 UNF threads, and country-specific certifications, it operates in -52°C to +177°C extremes. Ideal for machinery requiring localized regulatory adherence and precision measurement in confined spaces.
Technical Specifications
| Model | 330105-02-12-10-12-CN |
|---|---|
| Suffix Breakdown | 02: 3/8-24 UNF threads 12: Miniature ClickLoc + FluidLoc cable (optional) 10: 1.0-meter total cable length CN: Country-specific certifications (e.g., CCC, EAC) |
| Electrical Resistance | 7.59 Ω ±0.50 Ω (center to outer conductor) |
| Temperature Range | -52°C to +177°C (probe tip) | -51°C to +260°C (cable) |
| Thread Engagement | 0.563 in (14.3 mm) maximum |
